Product Description P/N: OSI-RI-SK
Description

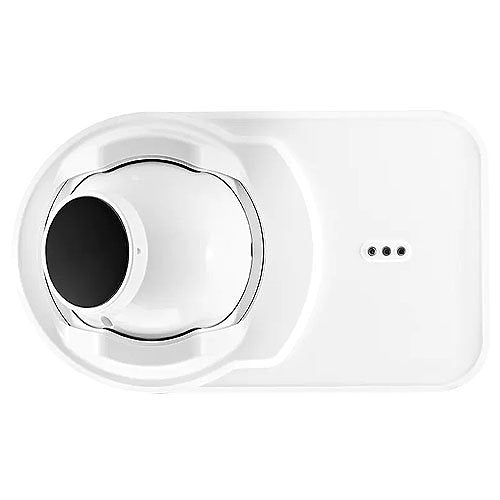

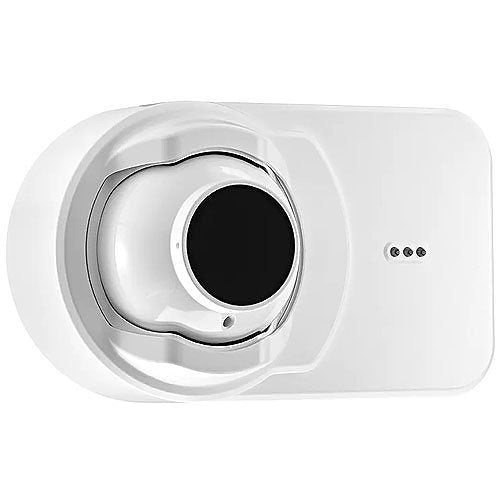

The Silent Knight OSI-RI-SK is an intelligent single-ended reflective imaging beam smoke detector designed for large open areas with high ceilings. This unit uses infrared light obscuration to detect smoke and integrates both transmitter and receiver in a single housing. It is engineered for reliable fire detection in challenging environments such as warehouses, atriums, hangars, and arenas.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight by Honeywell |
| Category | Fire Safety |
| Part Number | OSI-RI-SK |
| Subcategory | Beam Smoke Detectors |
| Product Type | Intelligent reflector-type beam smoke detector |
| Detection Principle | Infrared light obscuration |
| Design | Single-ended combined transmitter/receiver |
| Optical Adjustment | 50° horizontal, 20° vertical |
| Field of View | 12° wide |
| Coverage Range | 16–328 ft (5–100 m) |
| Compensation | Automatic drift compensation |
| Sensitivity Setting | Automatic threshold adjustment |
| Built-in Features | Imager heater, remote test station compatibility |
| Compatibility | Silent Knight intelligent fire alarm control panels |
| Country of Origin | United States (subject to change) |
| Dimensions | 11 × 9 × 7 in |
| Weight | 4 lbs |
Information About OSI-RI-SK
The OSI-RI-SK is part of the Silent Knight beam smoke detection series by Honeywell and is built for addressable fire alarm systems. It combines a reflective imaging design with a wide field of view and adjustable optics to simplify installation and alignment. The detector integrates directly with Silent Knight intelligent fire alarm control panels, eliminating the need for separate interface modules. With built-in compensation technologies and a heater for stable operation, it ensures consistent detection performance even in areas subject to building movement, temperature shifts, or light interference.
Key Features:
- Combined transmitter/receiver unit: Single-ended design simplifies setup and reduces wiring.
- Wide field of view: 12° viewing angle with 50° horizontal and 20° vertical beam adjustment for flexible installation.
- Long-range coverage: Detects over distances from 16 to 328 ft (5–100 m) without requiring additional kits.
- Automatic sensitivity setting: Saves time by adjusting thresholds automatically during setup.
- Drift compensation: Continuously corrects for environmental changes such as dust accumulation.
- Built-in imager heater: Maintains accuracy in humid or cold environments by preventing condensation.
- Resistant to interference: Designed to withstand building movement, direct sunlight, and foreign object intrusion.
- Fast alignment process: Laser-assisted setup ensures quick and precise installation.
The OSI-RI-SK delivers the reliability and precision required for advanced beam smoke detection in large-scale fire protection systems.
