P1200S | Schneider Electric PowerPacT P Series Circuit Breaker Surface Mount Enclosure
- Regular price
- $1,277.00
- Sale price
- $1,277.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P1200S
Description

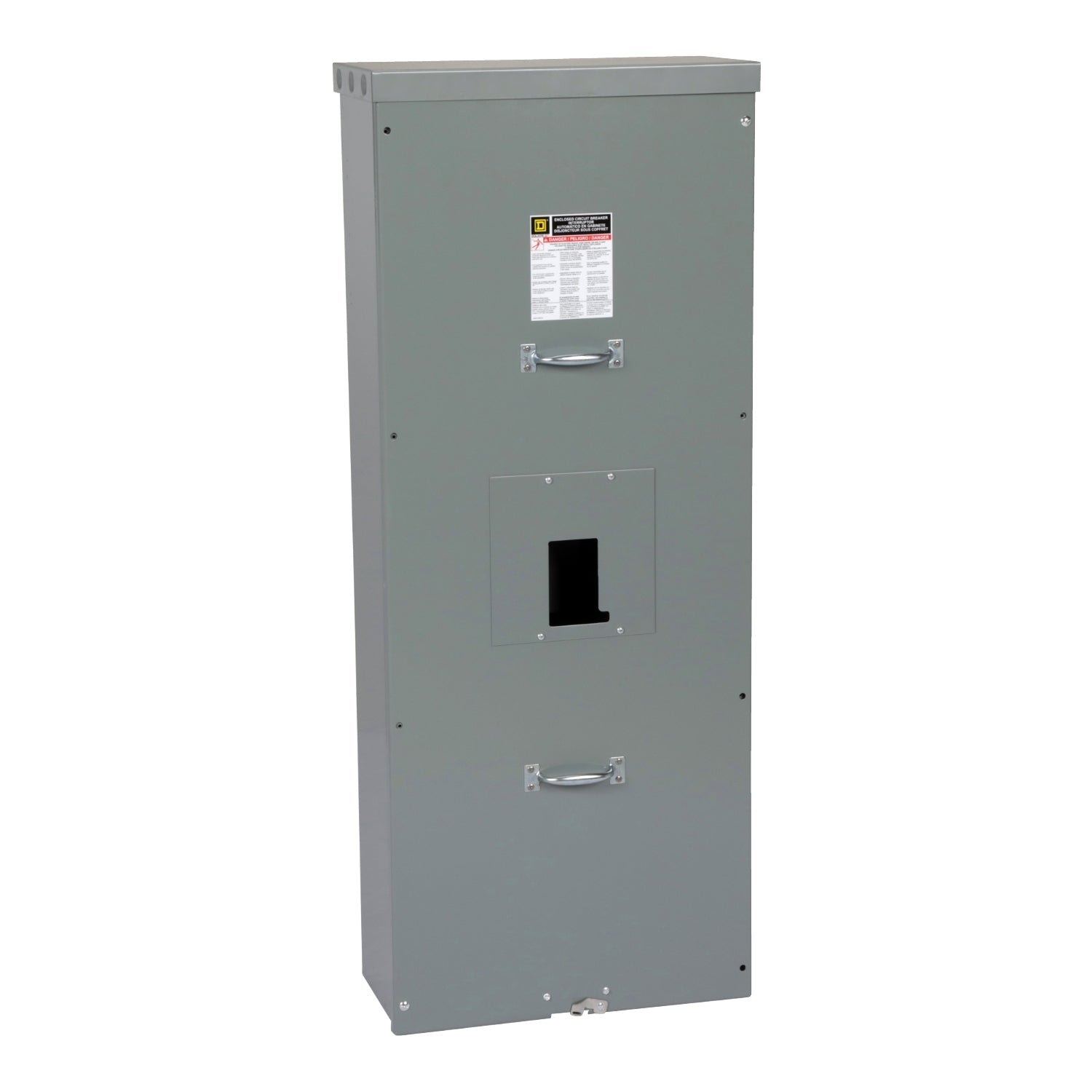

The Schneider Electric P1200S is a steel circuit breaker enclosure designed for housing PowerPacT P series circuit breakers in high-current electrical systems. It supports surface-mounted installation and accommodates circuit breakers rated from 600A to 1200A for distribution and service entrance applications.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Schneider Electric |
| Category | Panel Accessories |
| Part Number | P1200S |
| Subcategory | Enclosure |
| Series / Compatibility | PowerPacT P Series |
| Rated Current Range | 600–1200 A |
| Device Mounting | Surface |
| Pole Compatibility | 2 Pole, 3 Pole |
| Enclosure Type | NEMA 1 |
| Enclosure Material | Steel |
| Service Entrance Rated | Yes (with neutral assembly) |
| 100% Rated Breaker Support | Yes |
| Short Circuit Rating | Matches installed circuit breaker |
| Height | 52.13 in (1323.98 mm) |
| Width | 21.00 in (533.40 mm) |
| Depth | 9.75 in (247.65 mm) |
| Certifications | cULus Listed |
Information About P1200S
The P1200S is a surface-mounted circuit breaker enclosure developed for Schneider Electric PowerPacT P series breakers used in high-capacity power distribution systems. It features a rigid steel construction designed to protect internal devices while supporting current ratings from 600A up to 1200A. The enclosure is compatible with both two-pole and three-pole circuit breakers and integrates into service entrance equipment when equipped with a neutral assembly. It is typically installed in commercial and industrial facilities where controlled access, mechanical protection, and code-compliant enclosure design are required.
Key Features
- PowerPacT P series compatibility: Designed specifically to house Schneider Electric PowerPacT P series circuit breakers.
- Wide current range support: Accommodates breakers rated from 600A to 1200A for high-load applications.
- Surface mount design: Enables straightforward wall-mounted installation in electrical rooms and service areas.
- Steel enclosure construction: Provides mechanical strength, durability, and protection against environmental impact.
- NEMA 1 rating: Suitable for indoor applications requiring basic protection against contact with live components.
- 2-pole and 3-pole support: Allows flexible configuration based on system and breaker requirements.
- Service entrance capable: Can be used as service entrance equipment when a neutral assembly is installed.
- 100% rated breaker acceptance: Supports continuous full-load operation when used with approved circuit breakers.
The P1200S delivers the reliability and precision required for secure housing of high-current PowerPacT P series circuit breakers in commercial and industrial power distribution systems.
