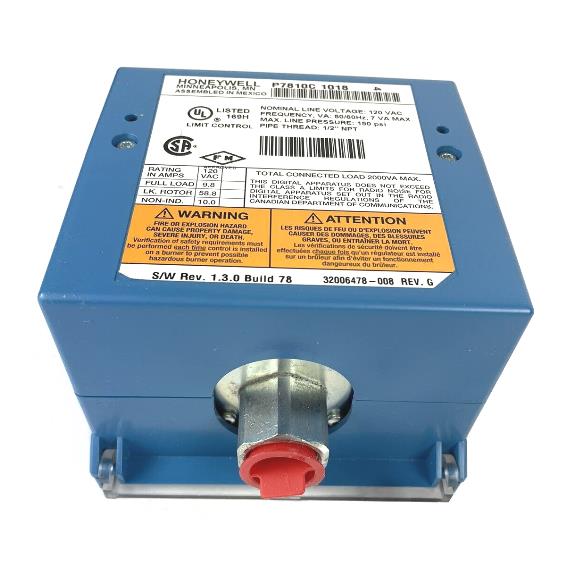

P7810C1018 | Honeywell Pressuretrol Controller
- Regular price
- $1,787.00
- Sale price
- $1,787.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: P7810C1018
Description
The Honeywell P7810C1018 is a discontinued pressure controller designed for precise pressure regulation in steam, air, and gas applications. It offers on-off control and 4–20 mA modulation capability for process efficiency.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Sensors & Switches
|
| Part Number | P7810C1018 |
| Subcategory | Sensor Controller |
| Product Type | Pressure Controller (Pressuretrol) |
| Control Type | On-Off / Modulating (4–20 mA) |
| Max Pressure | 150 PSI |
| Operating Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Connection Size | 1/2 inch NPT |
| Sensor Type | Solid-State Stainless Steel |
| Temperature Range | 32°F to 140°F (0°C to 60°C) |
| Electrical Connections | Screw terminals |
| Indicators | LED limit and lockout indicators |
| Reset Function | Manual, accessible under cover |
| Cover Type | Clear, tamper-resistant |
| Compatibility | Steam, air, non-combustible gases, non-corrosive fluids |
| Installation Area | Indoor |
| Weight | Approx. 1.72 lbs (0.78 kg) |
Information About P7810C1018
The Honeywell P7810C1018 is a robust pressuretrol pressure controller that supports both on/off control and modulating control via a 4–20 mA signal. With a pressure range up to 150 PSI, this unit is engineered for compatibility with steam, air, and other non-corrosive fluids and gases. Featuring an easy-to-read LED indicator panel and a reset function accessible under the cover, it enhances operator visibility and ease of maintenance. The clear cover enables quick reading of setpoints and differentials without removing the cover, though adjustments require access inside. The controller is built with a solid-state stainless-steel sensor, ensuring durability and reliability across a broad range of applications, including industrial boilers and process equipment.
Key Features:
- Pressure Control: Supports on/off and modulating control up to 150 PSI
- Modulation Output: 4–20 mA output for smooth pressure regulation
- LED Indicators: Clear status indication of limit and lockout conditions
- Sensor Type: Solid-state stainless steel sensing element for long life and precision
- Installation: Screw terminal electrical connections and 1/2" NPT pressure connection
- User Interface: Clear plastic cover displays settings while preventing unauthorized adjustment
- Reset Access: Manual reset under cover for safety and compliance
- Wide Compatibility: Suitable for steam, air, and inert gas environments
