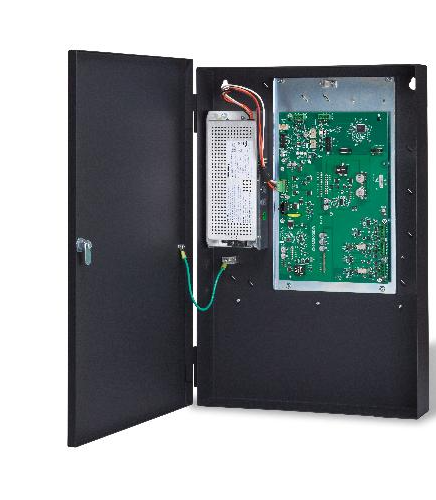

PAD5-6A | Siemens 6A Addressable Power Supply Module for Fire Alarm Systems
- Regular price
- $1,345.00
- Sale price
- $1,345.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PAD5-6A
Description
The Siemens PAD5-6A is an addressable power-supply module designed for use with Siemens fire alarm control panels (FACPs). This unit provides up to 6 amps of 24 VDC NAC power and auxiliary output for powering notification appliances and system peripherals. The PAD5-6A ensures reliable, supervised power distribution and compliance with UL and ADA standards for life-safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Safety |
| Part Number | PAD5-6A |
| Subcategory | Addressable Power Supply |
| Power Output | 24 VDC, 6A total (four Class B or two Class A circuits) |
| Auxiliary Output | 24 VDC, 3A (included in total output) |
| Primary Power Input | 120 VAC, 50/60 Hz, 3A max |
| Follower Input | One supervised NAC follower, 16–33 VDC or dry contact |
| Circuit Types | Class A and Class B, expandable with PAD-5-CLSA |
| Battery Charging Capacity | Two 7–18 Ah internal (up to 100 Ah with external enclosure) |
| Supervision | NACs, ground fault, AC fail, and battery supervision |
| Trouble Relays | Form C (general trouble) and Form A (AC fail) |
| Synchronization Support | System Sensor, Wheelock, Gentex, AMSECO |
| Signal Patterns | ANSI Temporal 3 & 4, March-time 30/60/120 PPM |
| Control Type | Microprocessor-based with Flash firmware |
| Compliance Standards | UL864 10th Edition, UL1076, UL2017, UL2572, ULC-S527, ULC-S576 |
| Mounting | 2HU enclosure (multi-module) |
| Dimensions (H×W×D) | 27 × 20 × 10 in |
| Weight | 15 lbs |
Information About PAD5-6A
The PAD5-6A is a UL 10th Edition and ULC-S527 listed addressable power-supply unit from Siemens’ advanced PAD-5 series. It is built to deliver dependable 24 VDC output for notification appliances and auxiliary devices, supporting both Class A and Class B circuits. The module seamlessly integrates with Siemens FP2011-U1 and FP2012-U1 fire alarm control panels, automatically communicating status and diagnostics for system monitoring. Featuring microprocessor-based control, battery supervision, and ground-fault detection, the PAD5-6A provides robust and compliant operation for commercial and industrial fire-protection systems.
Key Features:
- High Output Power: Provides up to 6A of 24VDC NAC and auxiliary power for connected devices.
- Circuit Flexibility: Supports four Class B or two Class A output circuits, expandable with optional PAD-5-CLSA module.
- Supervised Operation: Monitors battery, ground faults, and NAC integrity for continuous reliability.
- Advanced Synchronization: Built-in support for System Sensor, Wheelock, Gentex, and AMSECO strobes and coded signals.
- Expandable Configuration: Optional modules allow additional circuits and releasing functions (e.g., deluge, pre-action).
- Microprocessor Control: Flash memory-based firmware ensures fast, accurate diagnostics and easy upgrades.
- Comprehensive Compliance: Meets UL864 10th Edition, ADA, ULC-S527, and ULC-S576 standards.
- Multi-Module Mounting: Fits 2HU enclosures with clean integration into Siemens fire systems.
The PAD5-6A delivers the reliability and precision required for fire alarm power distribution and notification control in critical safety environments.
