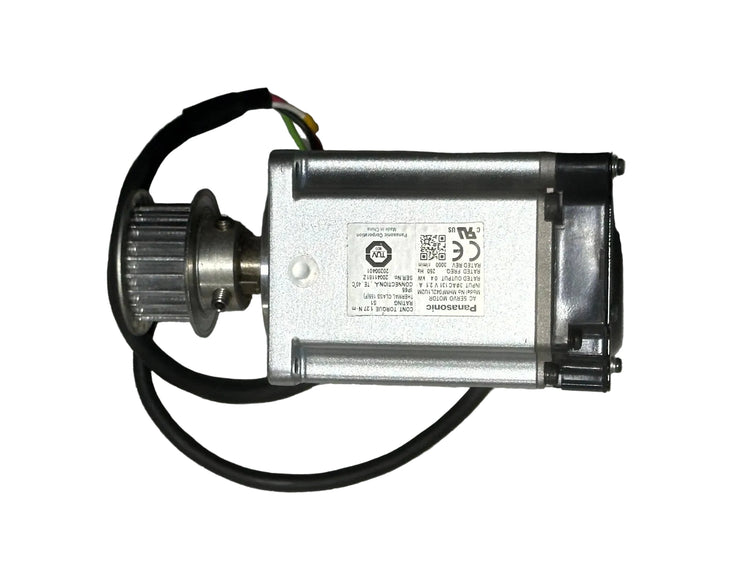

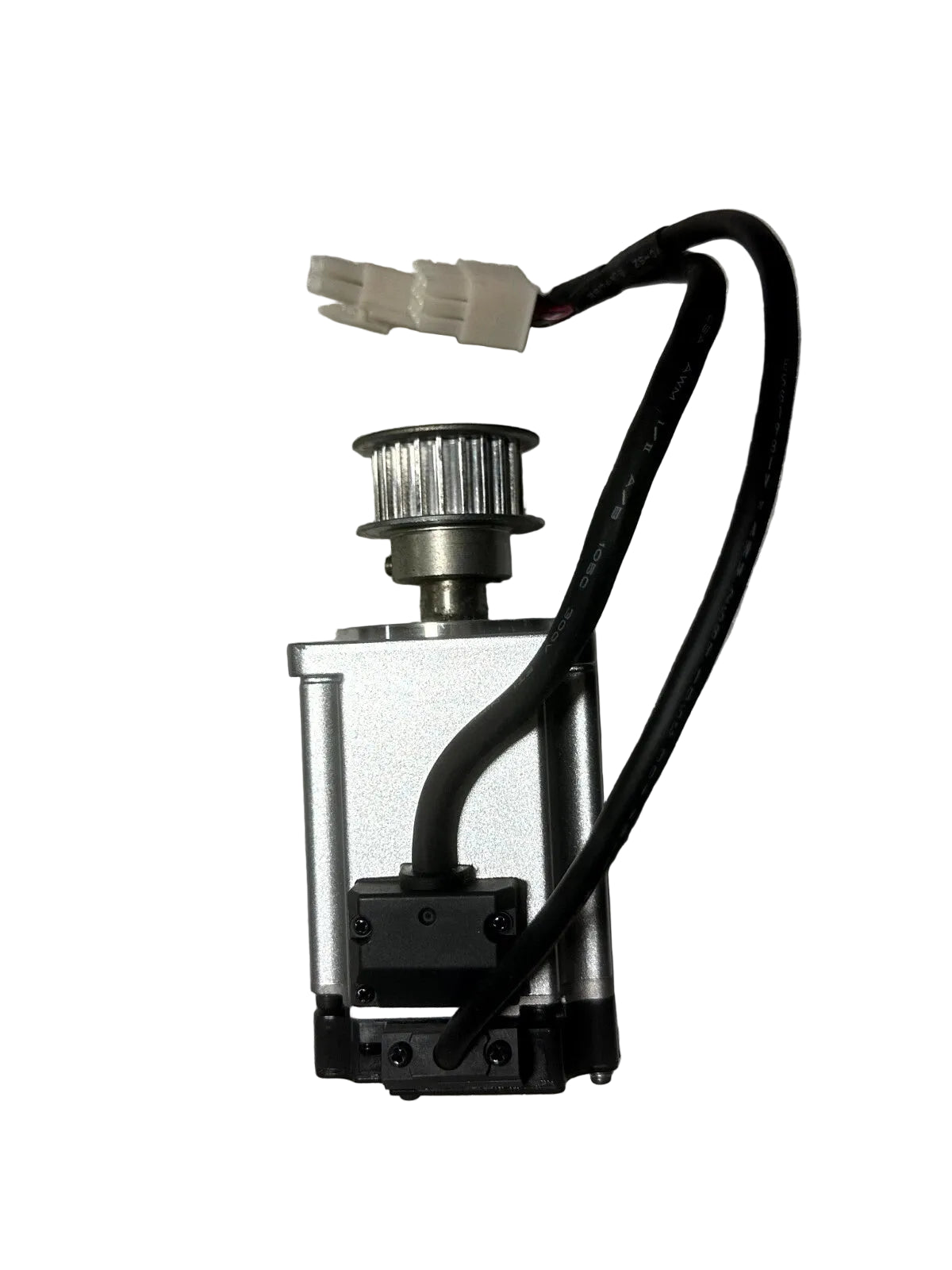

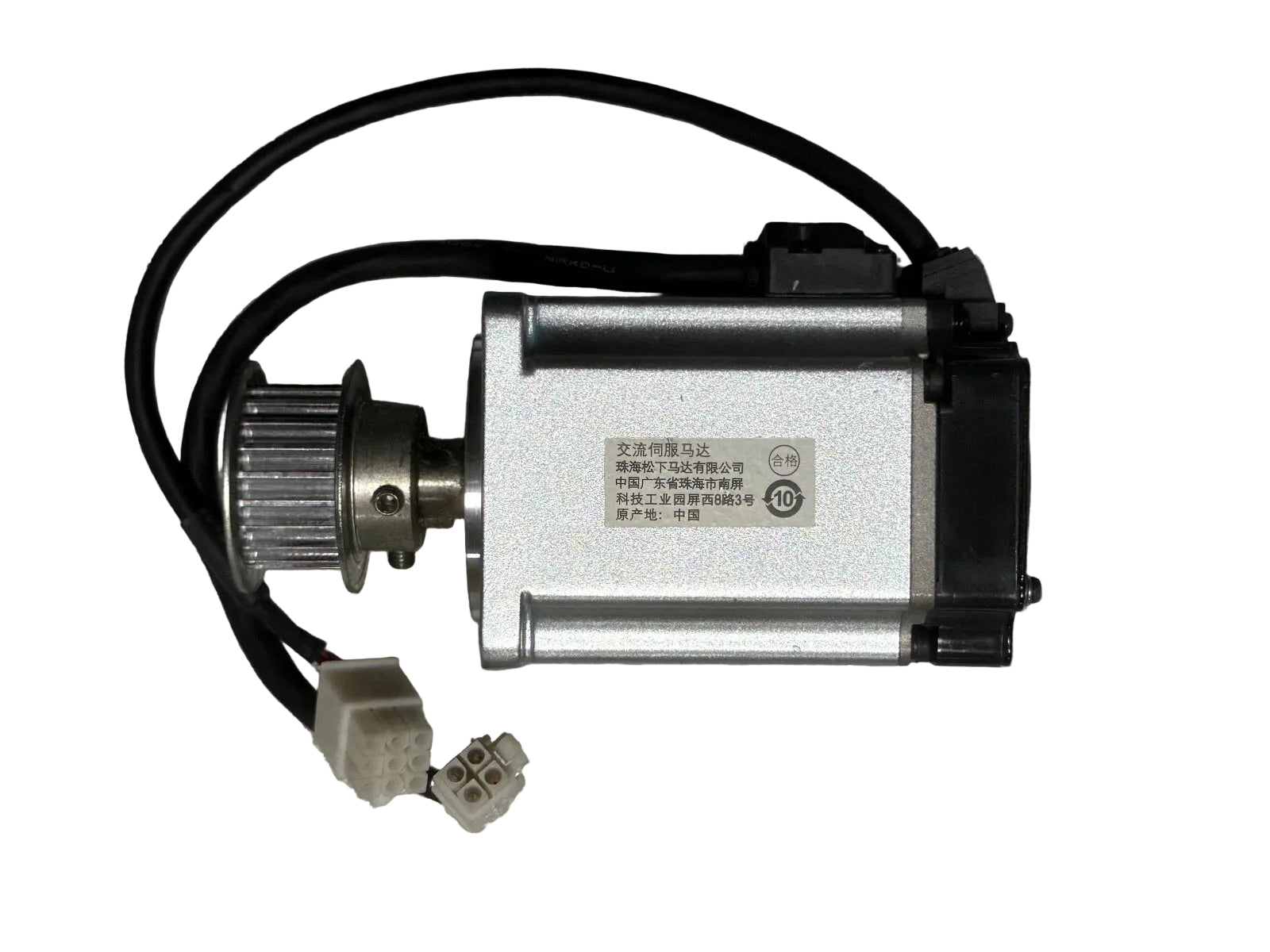

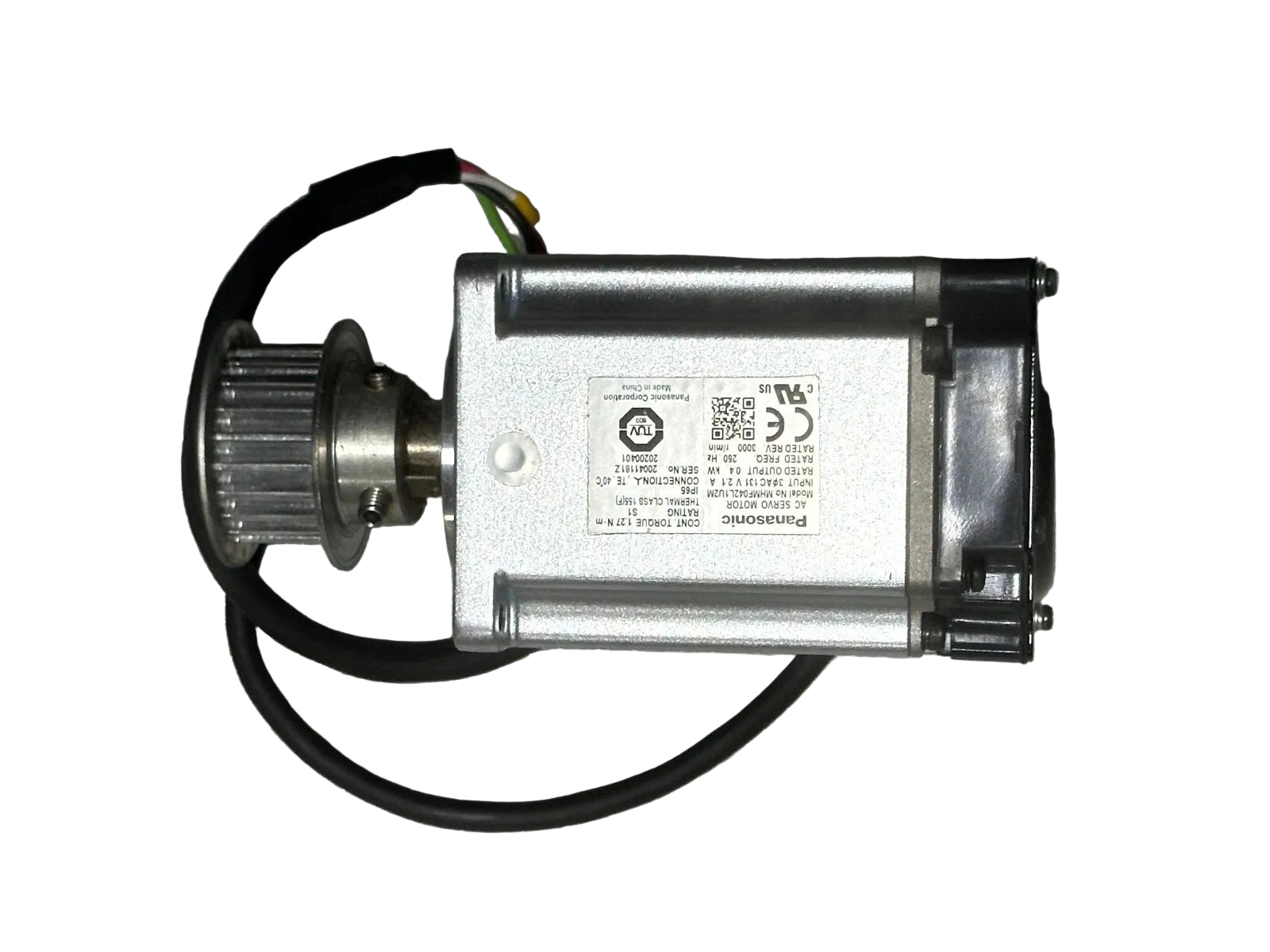

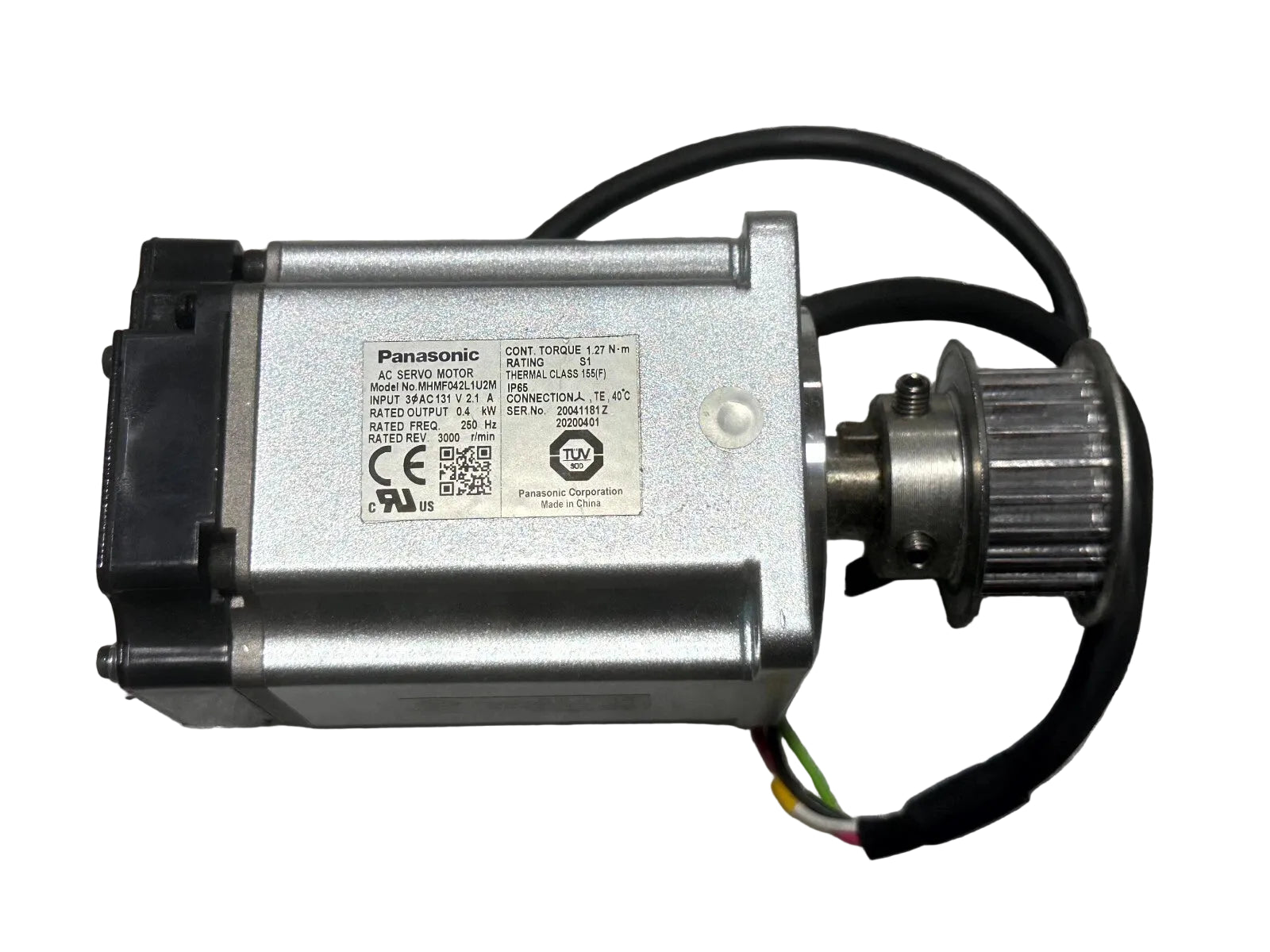

MHMF042L1U2M | Panasonic MINAS A6 400W AC Servo Motor 3000RPM High Inertia
- Regular price
- $419.00
- Sale price
- $419.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MHMF042L1U2M
Description
The Panasonic MHMF042L1U2M is a high-inertia AC servo motor from the MINAS A6 series designed for precision motion control applications. It delivers a rated output of 400 W with a rated speed of 3000 RPM and a high-resolution 23-bit encoder for accurate positioning. This servo motor is commonly used in industrial automation systems requiring stable torque and precise speed control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Panasonic |
| Category | Servo Products |
| Part Number | MHMF042L1U2M |
| Subcategory | Servo Motor |
| Series | MINAS A6 (MHMF Series) |
| Motor Type | High inertia AC servo motor |
| Rated Output | 400 W |
| Rated Voltage | 200 V |
| Rated Speed | 3000 RPM |
| Maximum Speed | 6500 RPM |
| Rated Torque | 1.27 Nm |
| Peak Torque | 4.46 Nm |
| Rated Current | 2.1 A |
| Maximum Current | 10.4 A |
| Encoder Type | 23-bit absolute / incremental |
| Encoder Resolution | 8,388,608 pulses |
| Flange Size | 60 mm |
| Protection Rating | IP65 |
| Shaft Type | Keyway with center tap |
| Weight | 1.2 kg |
Information About MHMF042L1U2M
The MHMF042L1U2M is a high-inertia servo motor developed as part of Panasonic’s MINAS A6 motion control platform. It is designed for integration with compatible Panasonic servo drives to deliver precise motion control in industrial machinery. The motor features a 23-bit absolute/incremental encoder system that enables high-precision positioning and feedback performance. Its compact 60 mm flange size and durable IP65 enclosure allow installation in automated equipment such as packaging machines, robotics, and semiconductor manufacturing systems.
Key Features:
-
High-Inertia Motor Design: Provides stable motion control and improved load handling in dynamic applications.
-
MINAS A6 Series Compatibility: Designed for operation with Panasonic MINAS A6 servo drive systems.
-
High-Resolution Encoder: Equipped with a 23-bit absolute/incremental encoder delivering 8,388,608 pulse resolution.
-
Precision Torque Performance: Rated torque of 1.27 Nm with peak torque up to 4.46 Nm.
-
High-Speed Operation: Rated speed of 3000 RPM with maximum rotational speed up to 6500 RPM.
-
Industrial Protection Rating: IP65 enclosure protects against dust and environmental exposure.
-
Compact Mechanical Design: 60 mm square flange allows integration into space-limited machinery.
-

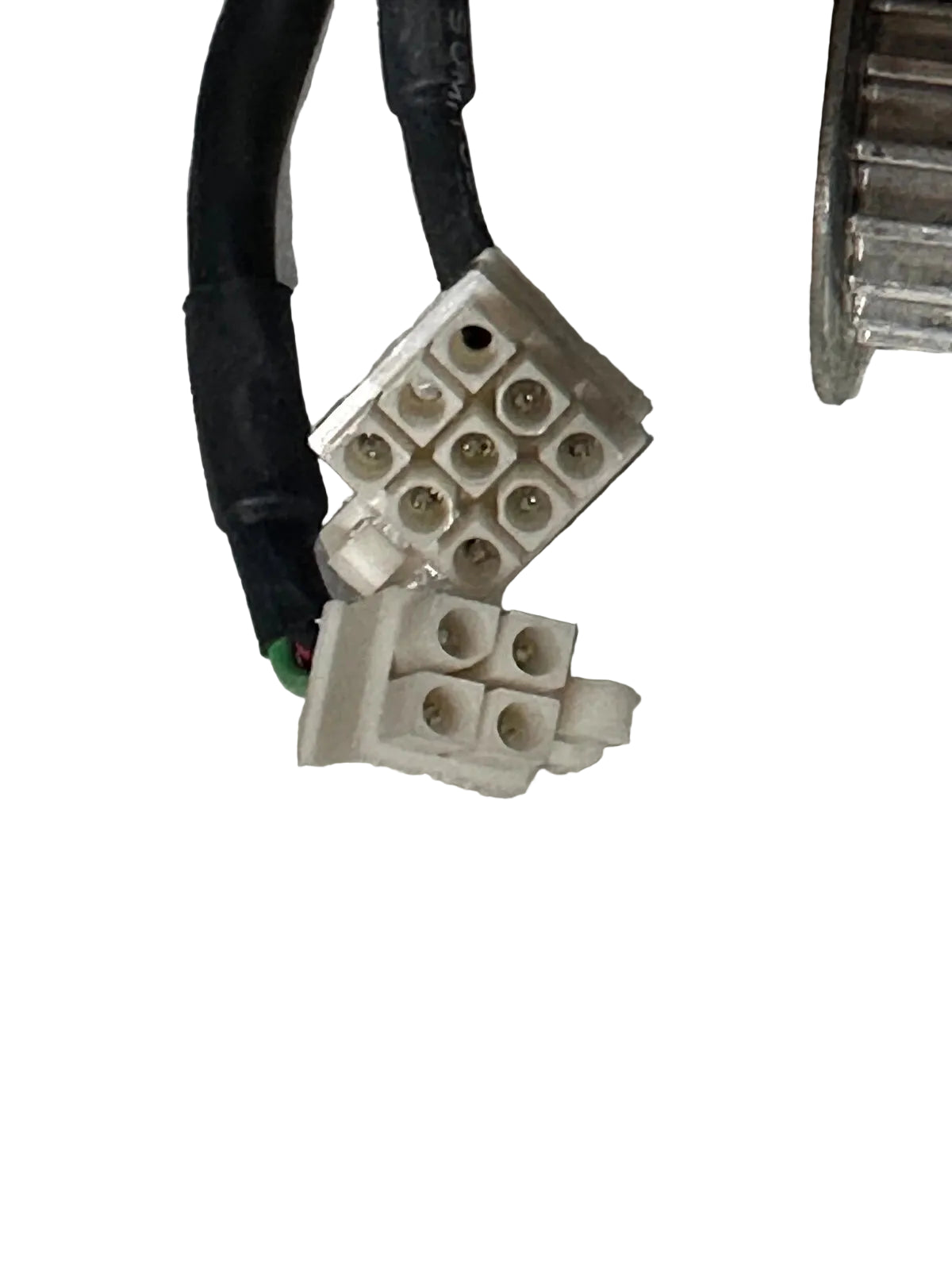

Lead Wire Motor Connection: Simplifies wiring for servo drive integration.
The MHMF042L1U2M delivers the reliability and precision required for high-performance motion control in industrial automation systems.
