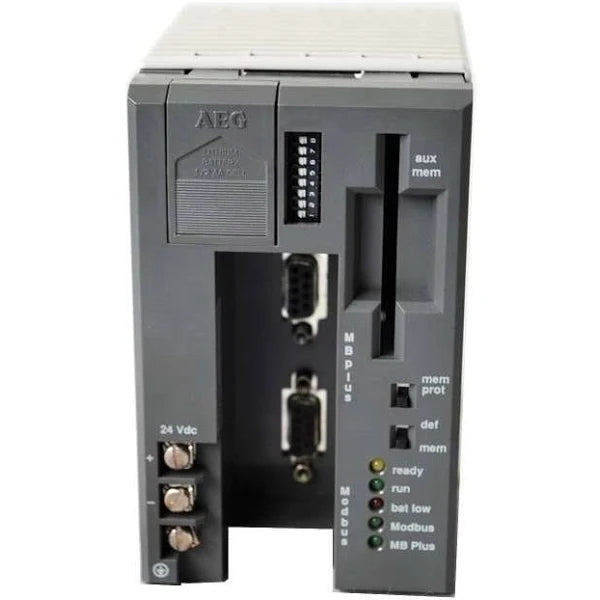

Part #: PC-A984-145 Manufactured by: Schneider Electric
Regular price
$174.00
Sale price
$174.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Modicon PC-A984-145 Programmable Control. 8K CPU with MB Plus
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: PC-A984-145
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: PC-A984-145

Description / Specifications

Description

The Schneider Electric PCA984145 is a versatile and sophisticated CPU module designed for industrial automation applications. This compact yet powerful controller is part of the Modicon TSX Compact series, known for its reliability and performance in various industrial settings.


Technical Specifications


Brand Schneider Electric
Part Number PC-A984-145
Category PLCs/Machine Control
Subcategory PLC Module/Rack
Type CPUs
Range Modicon
Category TSX Compact
Task Processor module
Control PCU
Memory 8 K
Height 1.85 in
Width 6.50 in
Length 8.07 in




Information About PC-A984-145

Key Specifications
CPU: The PCA984145 is equipped with a robust CPU, which serves as the brain of the controller. This CPU is capable of executing complex automation tasks efficiently.
Memory: With 8K of memory, this controller provides ample storage for your control programs and data. This memory capacity allows for the implementation of intricate control logic.
Communication: The PCA984145 offers 2xMB (Megabyte) of memory for communication purposes. This enables seamless data exchange between the controller and other devices in your industrial network.

Versatility and Applications
The PCA984145 is a versatile controller suitable for a wide range of industrial applications. Its compact design makes it an ideal choice for installations with limited space. Here are some of the key areas where the PCA984145 can excel:

Manufacturing Automation: In manufacturing environments, PCA984145 can be used to control and optimize various processes, such as assembly lines, packaging, and quality control. Its fast processing capabilities ensure precise and efficient operation.
Building Automation: The controller is well-suited for building automation systems, including HVAC (Heating, Ventilation, and Air Conditioning) control, lighting management, and security systems. Its memory capacity allows for the implementation of complex control strategies.
Energy Management: When it comes to managing energy consumption in industrial facilities, the PCA984145 can play a crucial role. It can monitor and control energy usage to help reduce costs and improve sustainability.

Opcode Assignments and Functionality
The PCA984145 comes equipped with a variety of opcode assignments for different functions, making it adaptable to various automation tasks. These opcodes enable the controller to execute specific instructions efficiently.

How to Handle Opcode Conflicts
Opcode conflicts can be a potential source of trouble if not managed properly. An opcode conflict occurs when two or more loadable instructions share the same opcode, leading to unexpected behavior in your user logic. Fortunately, there are strategies to mitigate and address opcode conflicts effectively:

1. Avoid Conflicting Opcodes: The simplest and most effective way to prevent opcode conflicts is to never use two loadable instructions with conflicting opcodes in your user logic. This proactive approach reduces the risk of encountering unexpected issues during the operation of your control system.

2. Utilize MODSOFT Panel Software: If you're working with MODSOFT panel software, you can modify opcodes for loadable instructions. This capability allows you to customize the opcode assignments, resolving conflicts and ensuring that your user logic operates smoothly without any clashes.

3. Employ the lodutil Utility: Another valuable tool for managing opcode conflicts is the lodutil utility, which is included in the Modicon Custom Loadable Software package (SW-AP98-GDA). This utility helps to alter loadable opcodes, offering flexibility in addressing conflicts. However, it's important to note that the availability of this software package may vary among different 984 controllers.

In conclusion, the Schneider Electric PCA984145 is a compact yet powerful CPU module that belongs to the Modicon TSX Compact series. Its versatile functionality, ample memory capacity, and opcode assignments make it valuable in industrial automation, manufacturing, building automation, and energy management applications. With its reliability and performance, the PCA984145 continues to be a preferred choice for industrial automation professionals worldwide.




Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
