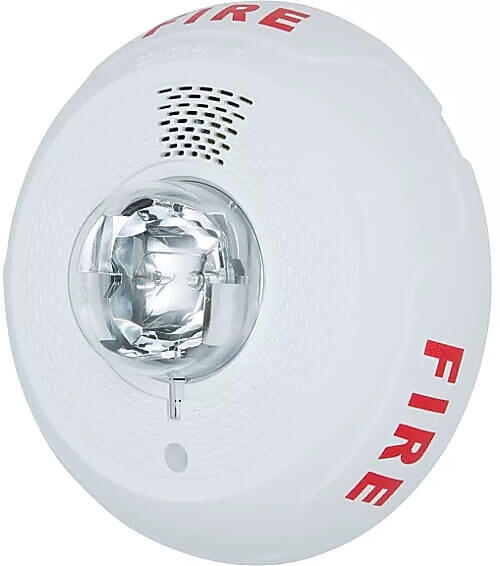

PC2WL-BP10 | System Sensor SpectrAlert Advance Ceiling Horn Strobe (White, 10-Pack)
- Regular price
- $852.00
- Sale price
- $852.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: PC2WL-BP10
Description
The System Sensor PC2WL-BP10 is a bulk pack of ten white, two-wire ceiling-mount horn strobes from the SpectrAlert® Advance series. Designed for fire emergency notification, each unit provides selectable candela settings and high-performance audible signaling. The pack offers a cost-effective solution for large installations requiring multiple devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Fire Safety |
| Part Number | PC2WL-BP10 |
| Subcategory | Fire Emergency Light/Beacon |
| Device Type | 2-Wire Ceiling-Mount Horn Strobe |
| Pack Quantity | 10 units |
| Color | White |
| Mounting | Ceiling only |
| Operating Voltage | 12/24 VDC, automatic selection at 15 & 30 cd |
| Current Draw | Varies by candela and voltage (typical per SpectrAlert Advance data) |
| Candela Settings | 15, 30, 75, 95, 115, 150, 177 cd |
| Sound Output | 88+ dBA @ 16 VDC |
| Tone Selection | Field-selectable via rotary switch |
| Volume Selection | High/low settings via rotary switch |
| Sync Compatibility | MDL3 Sync Module, SpectrAlert & SpectrAlert Advance devices |
| Tamper Resistance | Built-in construction feature |
| Operating Temp | 32°F to 120°F (0°C to 49°C) |
| Humidity | Up to 93% RH, non-condensing |
| Housing Material | UV-resistant thermoplastic |
| Listings/Approvals | UL Listed, NFPA 72 compliant |
| Weight (per unit) | ~0.6 lbs |
| Weight (10-pack) | ~6.0 lbs |
Information About PC2WL-BP10
The PC2WL-BP10 is part of System Sensor’s SpectrAlert Advance family, known for reliable fire notification appliances with simplified installation features. Each device offers automatic voltage selection between 12 VDC and 24 VDC, and ceiling strobes can be set to multiple candela ratings up to 177 cd. The units include tamper-resistant construction, field-configurable tone and volume options, and universal mounting plates with shorting springs for pre-installation continuity checks. Fully compatible with MDL3 sync modules, these horn strobes ensure synchronized operation with other SpectrAlert and SpectrAlert Advance devices, making them ideal for commercial and institutional fire alarm systems.
Key Features:
- 10-Pack Value Set: Includes ten white ceiling-mount horn strobes.
- Selectable Candela Output: 15, 30, 75, 95, 115, 150, or 177 cd field-configurable.
- High Sound Output: Horn rated at 88+ dBA at 16 VDC.
- Voltage Flexibility: Automatic selection of 12 VDC or 24 VDC operation at 15 and 30 cd.
- Tone & Volume Options: Rotary switch provides multiple tone and dual volume settings.
- Easy Installation: Plug-in design with universal mounting plate and shorting spring.
- Compatibility: Works with MDL3 sync module and legacy SpectrAlert devices.
- Ceiling Mount Approved: UL-listed for ceiling installation only.
The PC2WL-BP10 provides the performance, scalability, and cost efficiency required for large fire alarm installations.
