Product Description P/N: PD45VN6C200Q
Description

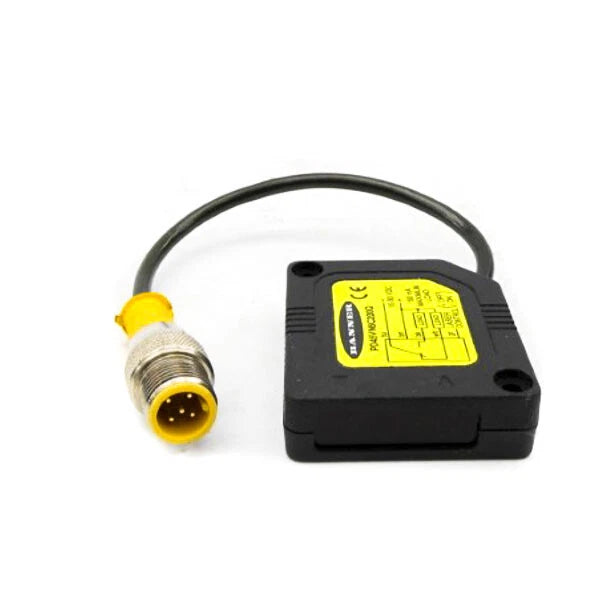

The Banner Engineering PD45VN6C200Q is a convergent photoelectric sensor designed for precise proximity detection using a visible red laser beam. It provides a maximum sensing distance of 203 mm with fast response performance for accurate object detection. This sensor is intended for compact industrial automation applications requiring reliable laser-based sensing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Sensors |
| Part Number | PD45VN6C200Q |
| Subcategory | Photoelectric Sensors |
| Series | PD45 Series |
| Sensor Type | Convergent Laser Photoelectric Sensor |
| Sensing Mode | Convergent |
| Sensing Range | Up to 203 mm |
| Light Source | Visible Red Laser (650 nm) |
| Laser Classification | Class 2 |
| Response Time | 0.2 ms |
| Supply Voltage | 10–30 VDC |
| Output Type | NPN |
| Housing Material | Thermoplastic |
| Lens Material | Acrylic |
| Housing Style | Rectangular |
| Connection Type | Integral Quick-Disconnect |
| Quick Disconnect Size | M12, 5-Pin |
| Cable Length | 0.15 m |
| IP Rating | IP54 |
| NEMA Rating | 3 / 4X |
| Operating Temperature Range | −10 to 45 °C |
| Indicators | LED(s) |
| Power-Up Delay | 1000 ms |
| Weight | 0.18 lb |
Information About PD45VN6C200Q
The PD45VN6C200Q is part of Banner Engineering’s PD45 Series photoelectric sensors, engineered for accurate detection in space-constrained industrial environments. It features a rectangular thermoplastic housing with an acrylic lens and Class 2 visible red laser for focused sensing. The sensor uses an NPN discrete output and connects via a 5-pin M12 integral quick-disconnect with a short pigtail cable. It is commonly used in packaging, assembly, and part-position verification systems where precise convergent sensing is required.
Key Features:
- Convergent Laser Sensing: Provides accurate proximity detection at a fixed focal distance.
- Defined Sensing Distance: Optimized for a maximum sensing range of 203 mm.
- Class 2 Visible Red Laser: Produces a small, precise sensing spot for accurate targeting.
- Fast Response Time: Delivers a 0.2 ms response for high-speed automation tasks.
- NPN Discrete Output: Supports standard industrial control system integration.
- M12 Quick-Disconnect Interface: Enables fast installation and simplified maintenance.
- Rugged Industrial Design: Rated IP54 for protection in light industrial environments.
The PD45VN6C200Q delivers the reliability and precision required for compact laser photoelectric proximity sensing applications.
