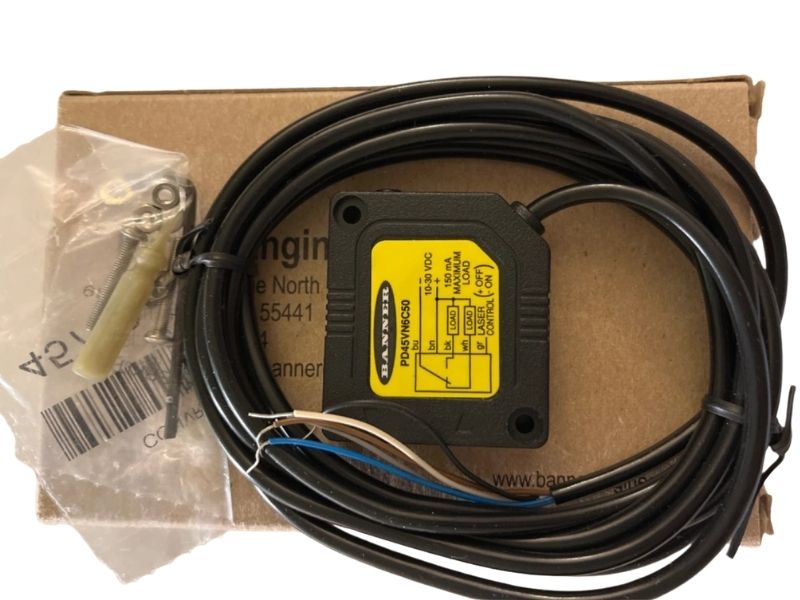

PD45VN6C50 | Banner Convergent Photoelectric Laser Sensor, 50 mm Focus, NPN Output
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PD45VN6C50
Description
The Banner PD45VN6C50 is a compact convergent-mode photoelectric laser sensor designed for precise detection of small objects at close range. It features a fixed 50 mm focal point and complementary NPN outputs for reliable switching in automated systems. This sensor is suitable for industrial sensing applications requiring accurate target discrimination and stable performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner |
| Category | Sensors & Switches |
| Part Number | PD45VN6C50 |
| Subcategory | Photoelectric |
| Sensor Type | Convergent Photoelectric Laser Sensor |
| Series | PD45 PicoDot® |
| Focal Distance | 50 mm |
| Light Source | Visible Red Class 2 Laser (650 nm) |
| Supply Voltage | 10–30 VDC |
| Output Type | Complementary NPN |
| Output Configuration | Solid-State SPDT |
| Response Time | 0.2 ms |
| Environmental Rating | IP54 |
| Operating Temperature | -10°C to +45°C |
| Termination | 2 m (6.5 ft) Attached Cable |
| Country of Origin | USA |
| Weight | 0.26 lbs |
Information About PD45VN6C50
The PD45VN6C50 is part of the Banner PD45 Series PicoDot® sensors, which are engineered for high-precision laser-based object detection in compact installations. It uses convergent sensing technology to create a focused detection spot at a fixed distance, allowing it to ignore objects beyond the focal point. The sensor operates on a 10–30 VDC power supply and is equipped with complementary NPN solid-state outputs for flexible control integration. Its rugged ABS housing, IP54 rating, and pre-attached cable make it suitable for industrial automation environments where space and accuracy are critical.
Key Features:
-
Convergent Laser Sensing: Fixed-field detection with a precise focal point for accurate object recognition.
-
50 mm Focal Distance: Optimized for close-range sensing of small parts and profiles.
-
Visible Red Class 2 Laser: Provides a clearly defined sensing spot for alignment and detection.
-
Complementary NPN Outputs: Supports both light-operate and dark-operate switching configurations.
-
Wide Supply Voltage Range: Operates reliably from 10 to 30 VDC input power.
-
Fast Response Time: 0.2 ms switching speed for high-speed sensing and counting tasks.
-
Industrial-Grade Housing: ABS construction with IP54 environmental protection.
The PD45VN6C50 delivers the reliability and precision required for close-range industrial photoelectric sensing applications.
