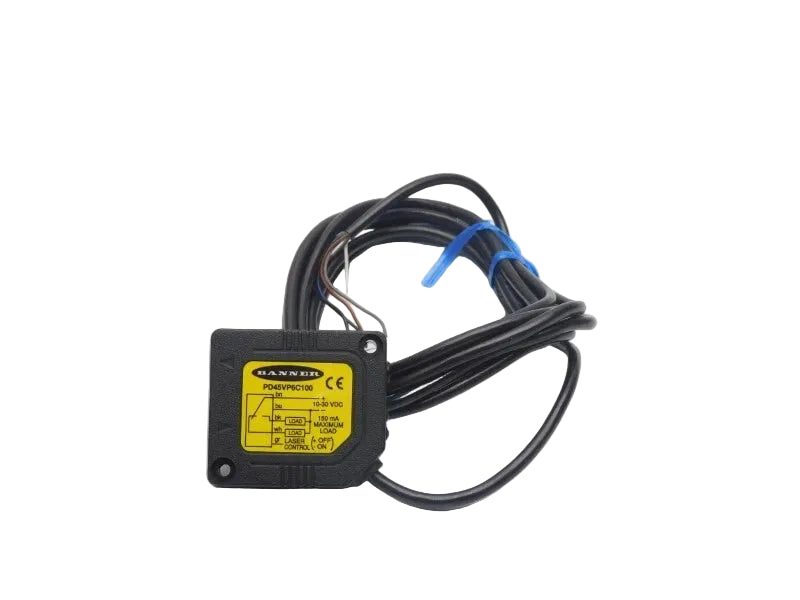

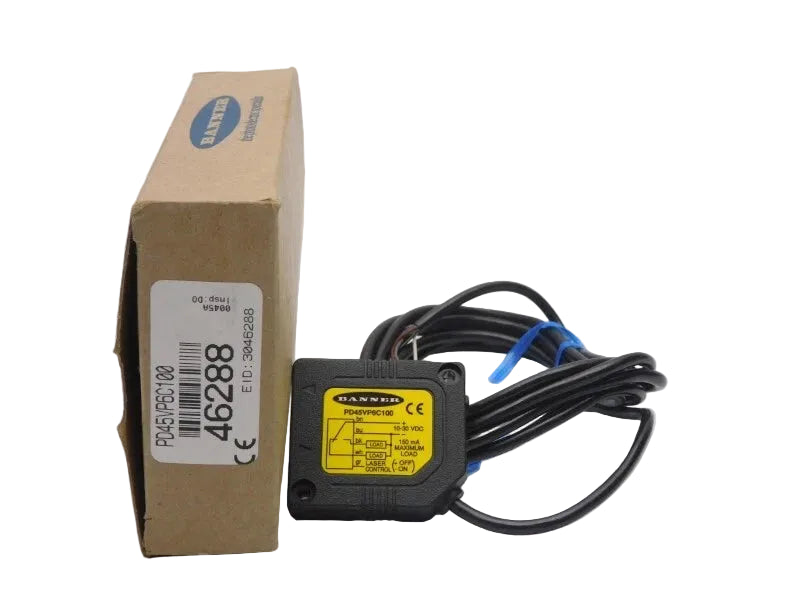

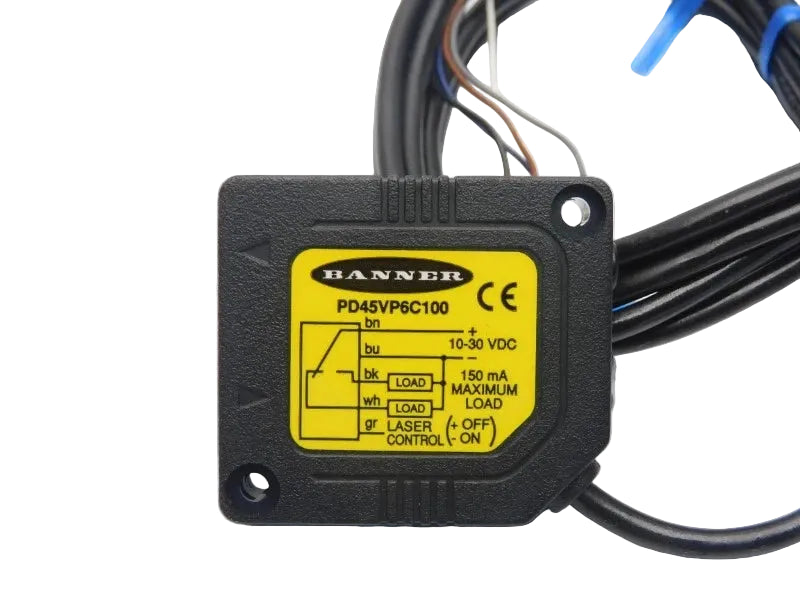

PD45VP6C100 | Banner Engineering PicoDot 102 mm Convergent Laser PNP Sensor
- Regular price
- $639.00
- Sale price
- $639.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PD45VP6C100
Description
The Banner Engineering PD45VP6C100 is a PicoDot Series convergent laser photoelectric sensor designed for precise short-range detection up to 102 mm. Operating on 10–30 VDC, it features a visible red Class 2 laser and PNP discrete output for reliable object sensing in compact industrial applications. Its thermoplastic rectangular housing and 2-meter cable connection support straightforward installation in automated systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | PD45VP6C100 |
| Subcategory | Photoelectric Sensors |
| Series | PicoDot Series |
| Sensing Mode | Convergent (Proximity) |
| Maximum Sensing Distance | 102 mm |
| Light Source | Visible Red Laser (650 nm) |
| Laser Classification | Class 2 |
| Output Type | PNP, Discrete |
| Supply Voltage | 10–30 V DC |
| Response Time | 0.2 ms |
| Repeatability | 50 µs |
| Operation Mode | Light/Dark Operate |
| Connection Type | Cable |
| Cable Length | 2 m |
| Number of Pins | 5 |
| Housing Style | Rectangular |
| Housing Material | Thermoplastic |
| Lens Material | Acrylic |
| IP Rating | IP54 |
| NEMA Rating | NEMA 4X |
| Operating Temperature Range | -10°C to 45°C |
| Delay at Power-Up | 1000 ms |
| Max Relative Humidity | 90% at 50°C |
| Weight | Approx. 0.15 kg |
Information About PD45VP6C100
The PD45VP6C100 is part of Banner Engineering’s PicoDot Series, engineered for high-precision proximity detection using convergent laser sensing technology. It emits a focused 650 nm visible red laser beam, enabling accurate target detection within a fixed sensing distance of 102 mm without the need for a reflector. The sensor includes a 5-pin cable connection and supports light or dark operate modes, offering flexibility for various control logic requirements. With LED status indicators and potentiometer adjustment, it allows simplified setup and signal monitoring in industrial environments.
Key Features:
- Convergent Laser Sensing: Provides fixed-field detection up to 102 mm without a reflector.
- Class 2 Visible Red Laser (650 nm): Ensures precise alignment and small spot detection.
- PNP Discrete Output: Compatible with PLC and industrial control inputs.
- Fast Response Time (0.2 ms): Supports high-speed production and sorting applications.
- Light/Dark Operate Modes: Configurable output operation for flexible system integration.
- Potentiometer Adjustment: Enables fine sensitivity tuning for specific targets.
- LED Status Indicators: Provides clear visual feedback for power and output status.
- Compact Rectangular Housing: Thermoplastic body designed for space-constrained installations.
The PD45VP6C100 delivers the reliability and precision required for compact laser-based object detection and positioning applications.
