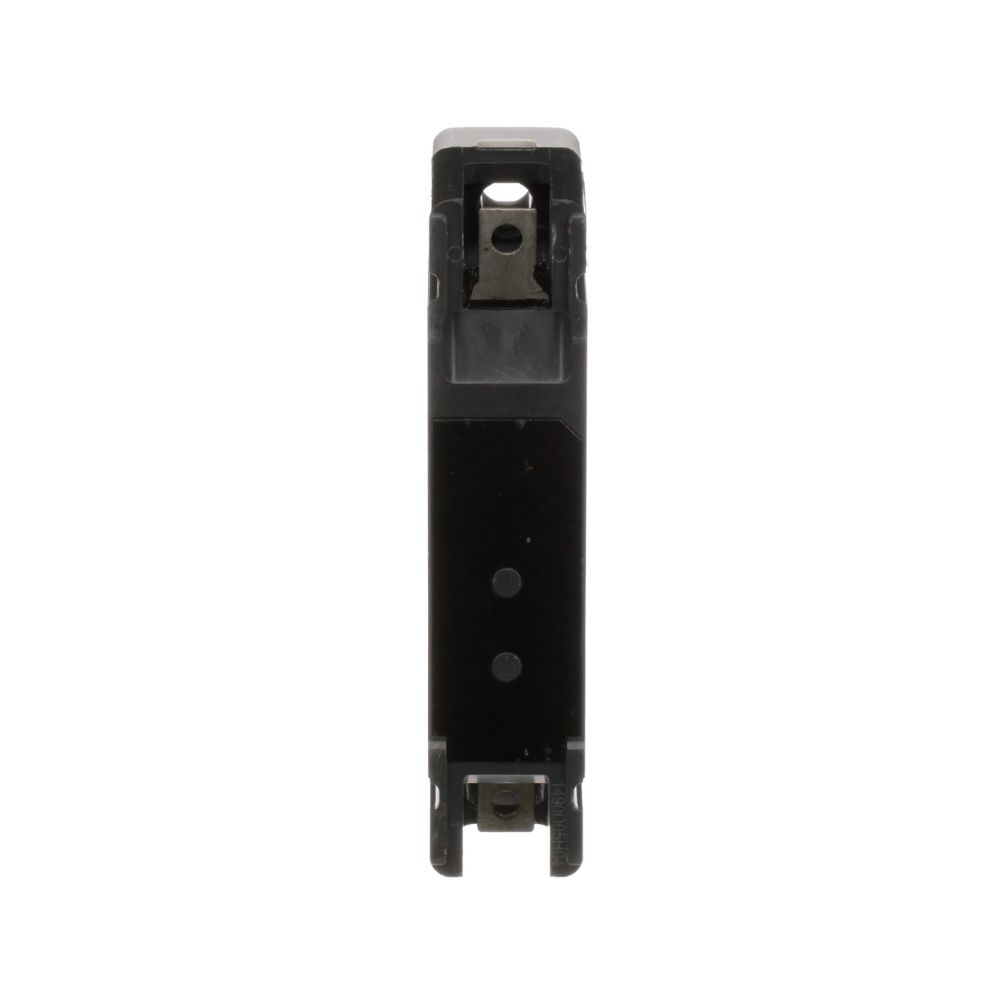

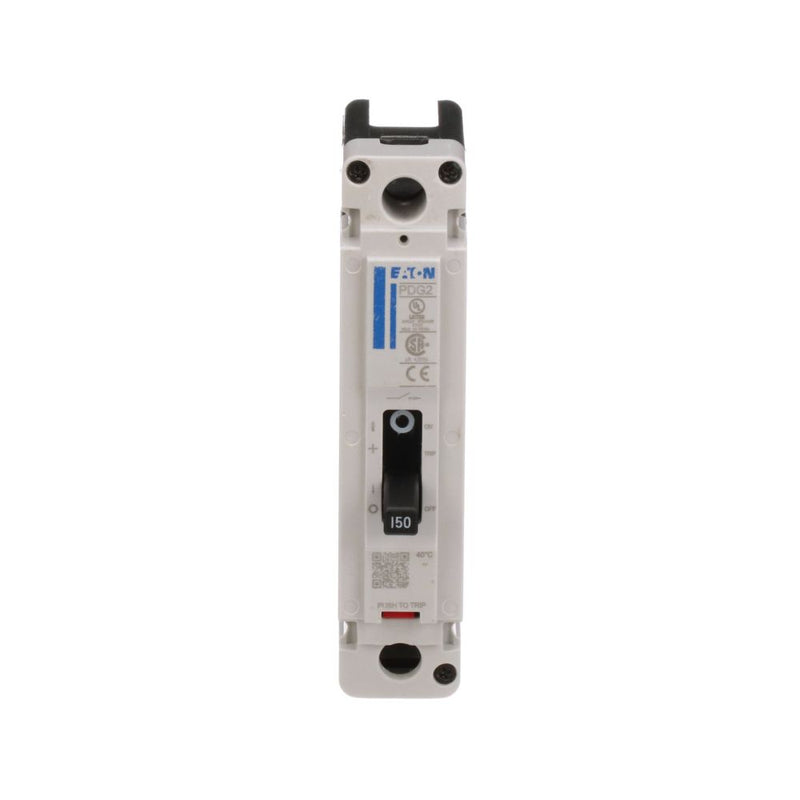

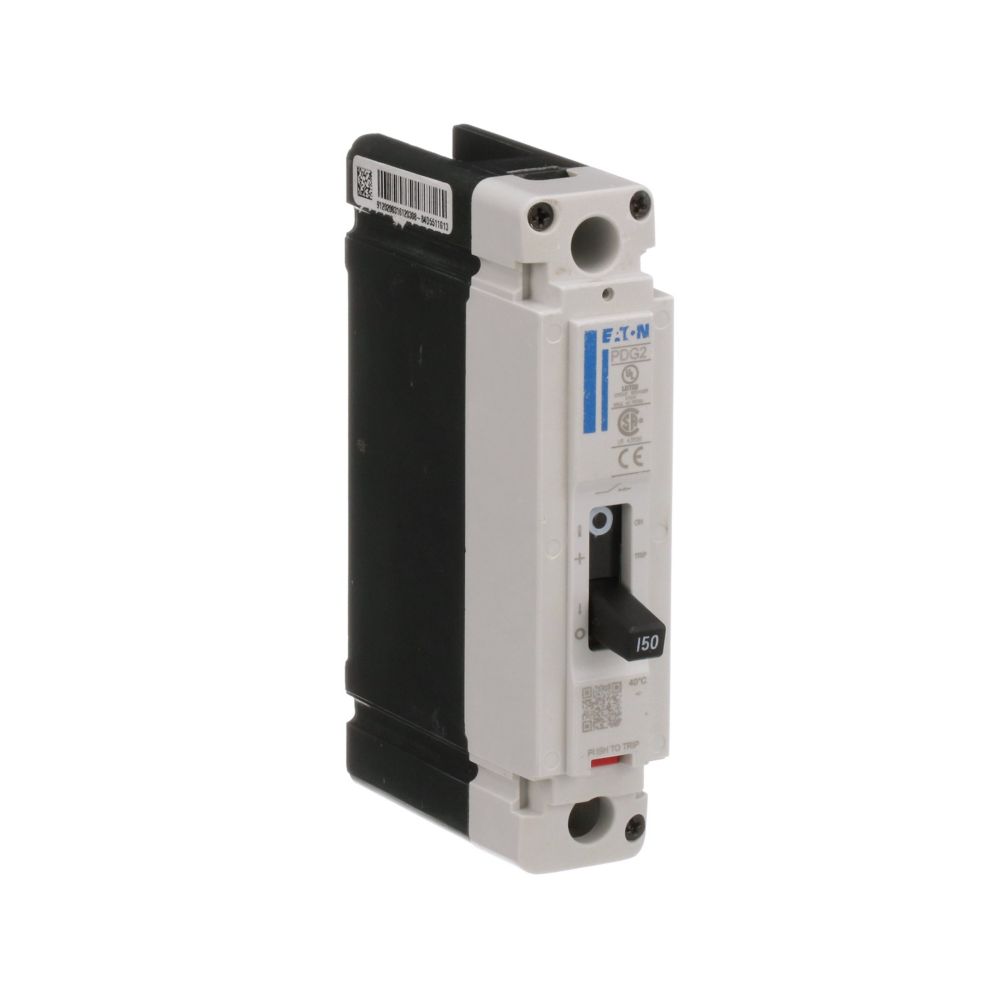

PDG21M0020TFFL | Eaton Cutler-Hammer 20A 1-Pole Power Defense Molded Case Circuit Breaker 600VAC
- Regular price
- $388.00
- Sale price
- $388.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PDG21M0020TFFL
Description
The Eaton Cutler-Hammer PDG21M0020TFFL is a single-pole molded case circuit breaker designed for reliable protection of electrical systems against overloads and short circuits. Operating at 600 VAC with a 20A rating, this Power Defense series breaker features a high interrupting capacity of 65 kA at 480V. Engineered for industrial and commercial use, it offers precise thermal-magnetic trip performance in a compact, globally rated design.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton Cutler-Hammer |
| Category | Circuit Breaker |
| Part Number | PDG21M0020TFFL |
| Subcategory | Molded Case |
| Series | Power Defense |
| Type | PDG |
| Poles | 1 |
| Amperage Rating | 20A |
| Voltage Rating | 600 VAC |
| Interrupting Capacity | 65 kA @ 480V |
| Trip Type | Fixed Thermal / Fixed Magnetic |
| Functions | LI – Long-Time and Instantaneous Trip |
| Frame Type | PDG Frame |
| Connection Type | Bolt-On |
| Terminal Connection | Standard Line and Load Lug |
| Certifications | UL 489, CSA, IEC 60947-2, CCC, RoHS |
| Temperature Rating | -25°C to 70°C (-13°F to 158°F) |
| Frequency | 50/60 Hz |
| Country of Origin | Dominican Republic |
| Dimensions (H x W x D) | 6 in x 1.38 in x 3.5 in |
| Weight | 1.85 lb |
Information About PDG21M0020TFFL
The PDG21M0020TFFL is part of Eaton’s advanced Power Defense Series, engineered to meet global standards (UL, CSA, IEC, and CCC) for safety and performance. It features a fixed thermal and fixed magnetic trip unit, providing consistent long-time and instantaneous protection in demanding electrical environments. Designed with a bolt-on connection and standard line and load terminals, this breaker ensures ease of installation and secure power distribution. With its 600V rating and durable PDG frame, the unit delivers dependable performance across a wide range of industrial applications.
Key Features:
- Amperage Rating: 20A capacity for light to medium-duty circuit protection.
- Voltage Rating: Operates at up to 600 VAC for versatile electrical system compatibility.
- Interrupting Capacity: 65 kA at 480V provides robust fault protection.
- Trip Unit: Fixed thermal and magnetic trip offers precise overload and short-circuit response.
- Frame Type: PDG frame designed for compact installation and durability.
- Connection Type: Bolt-on terminal configuration ensures secure electrical contact.
- Certifications: Complies with UL 489, CSA, IEC 60947-2, CCC, and RoHS standards.
- Operating Temperature: Reliable operation from -25°C to 70°C (-13°F to 158°F).
The PDG21M0020TFFL delivers the reliability and precision required for modern industrial and commercial electrical distribution systems.
