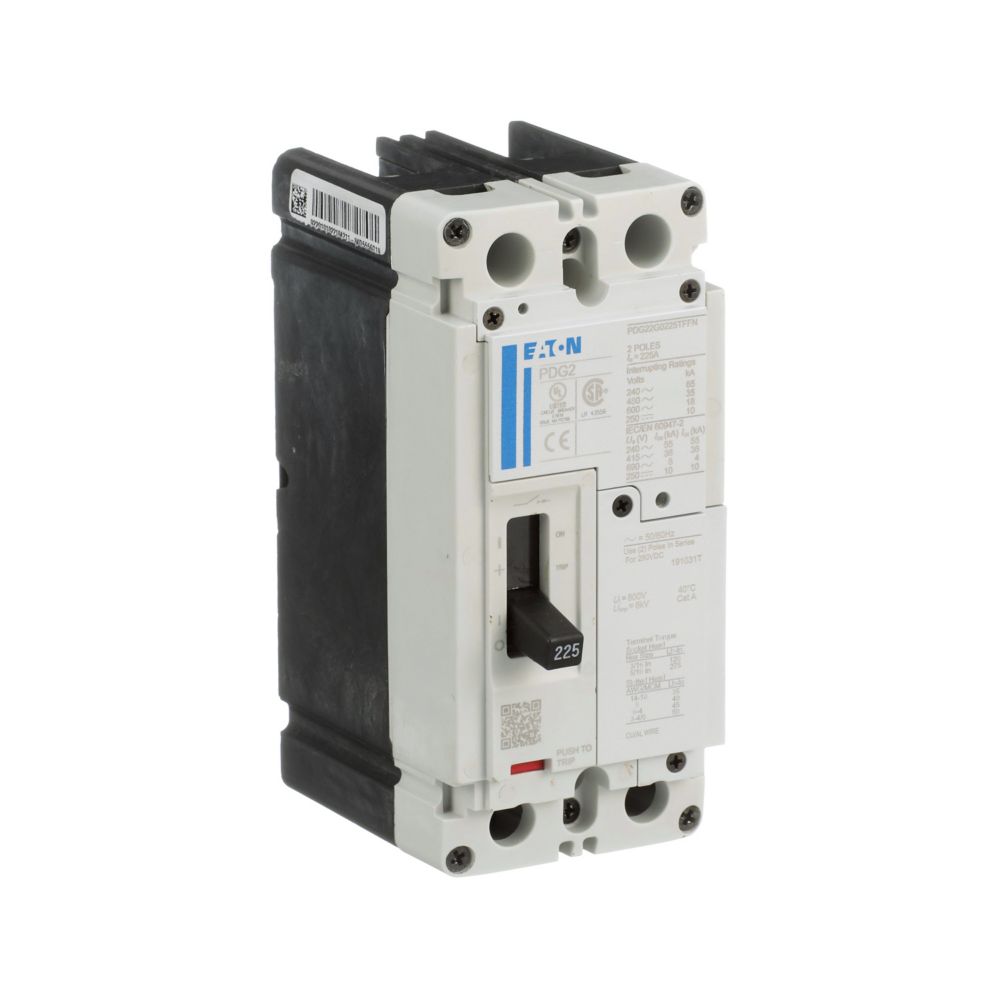

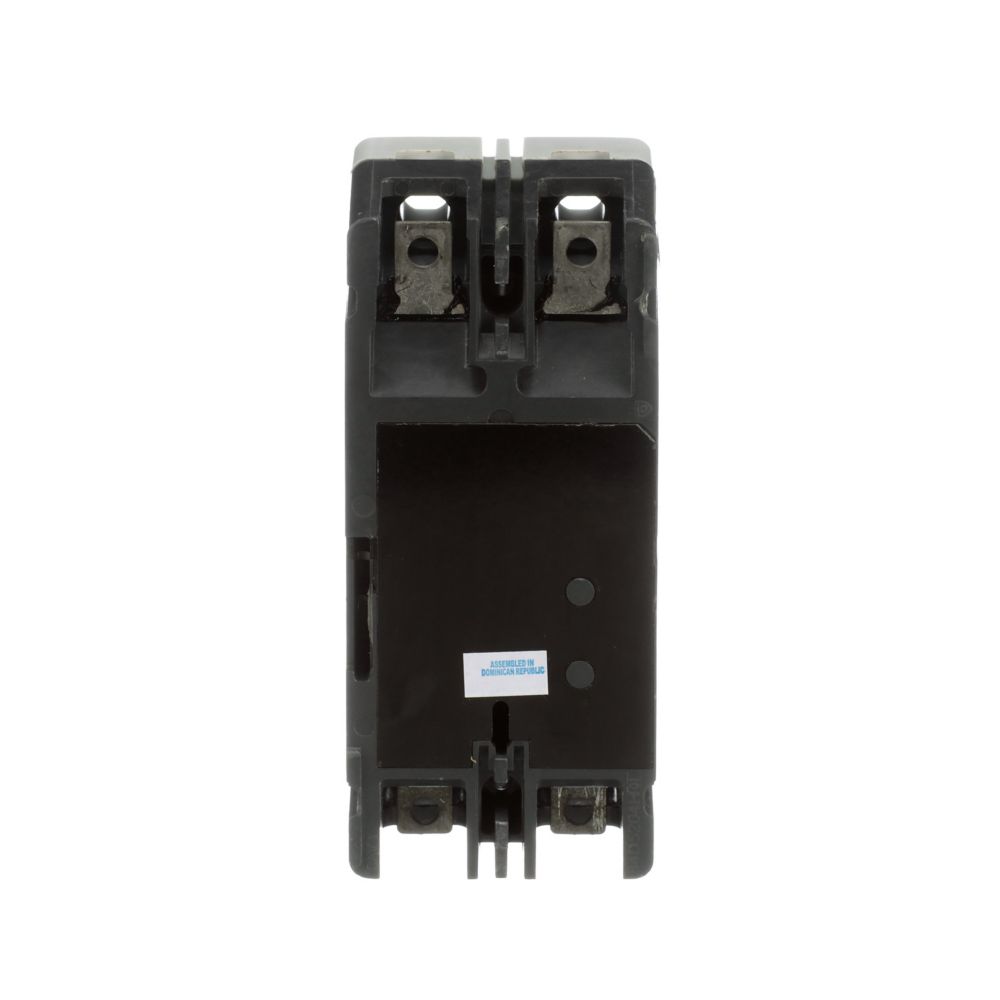

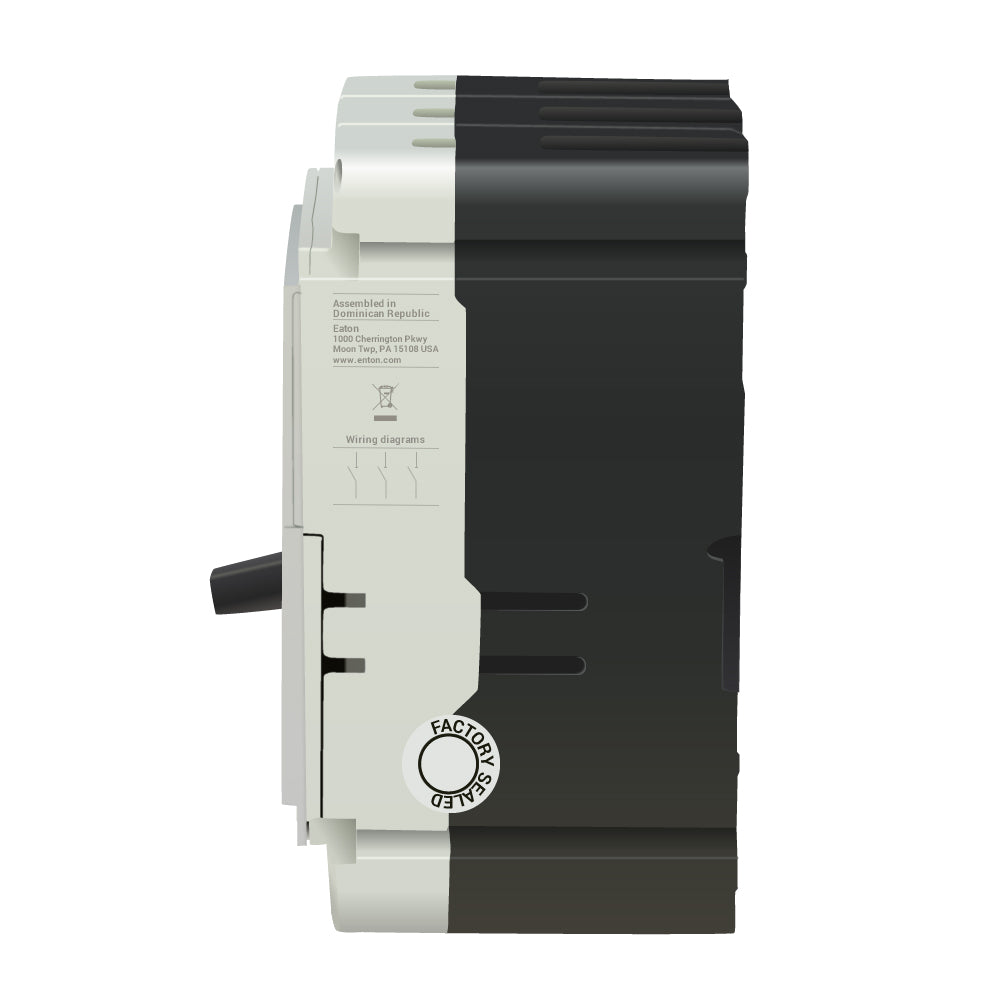

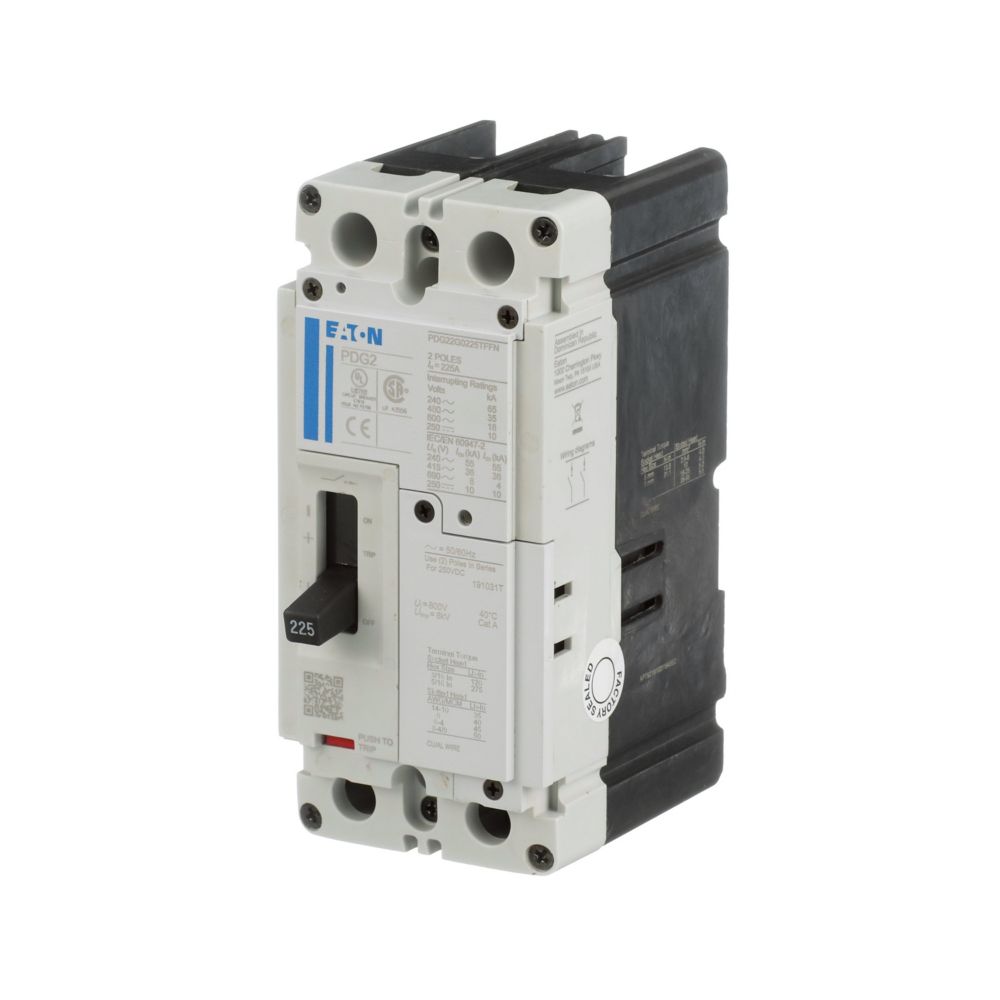

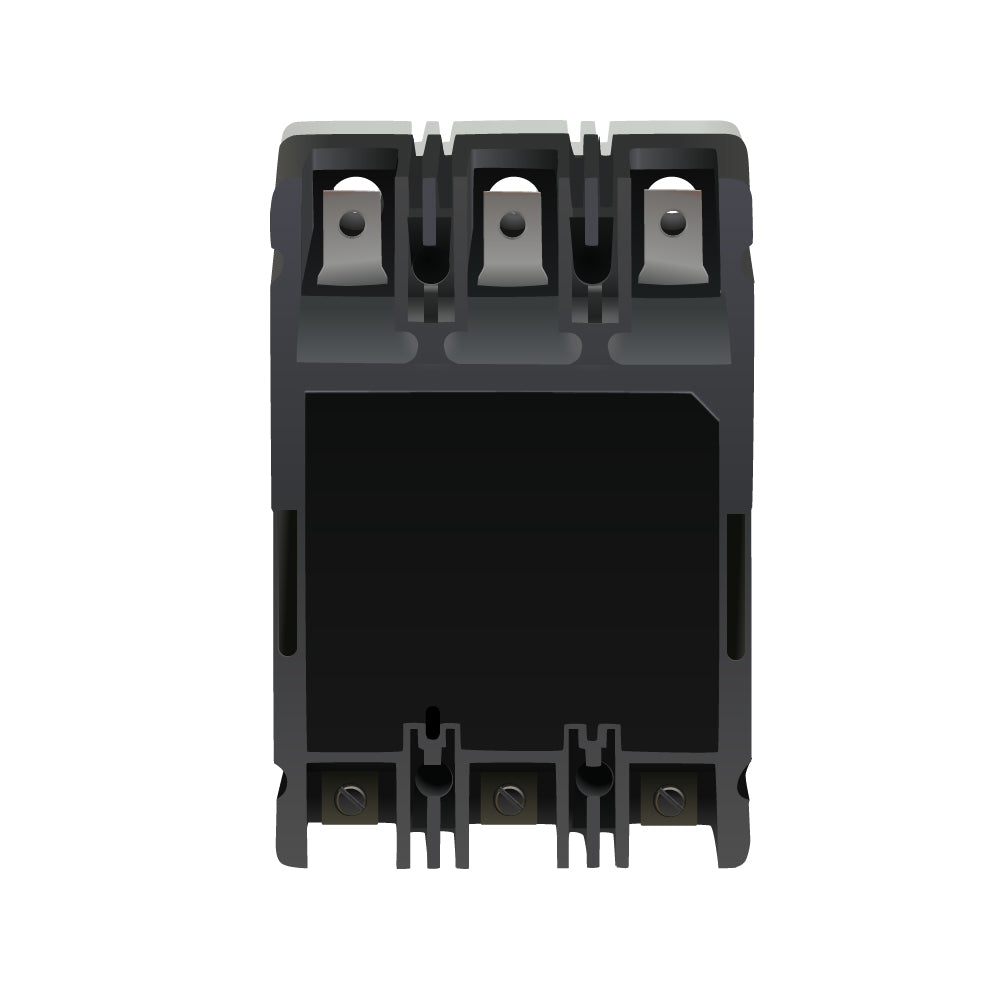

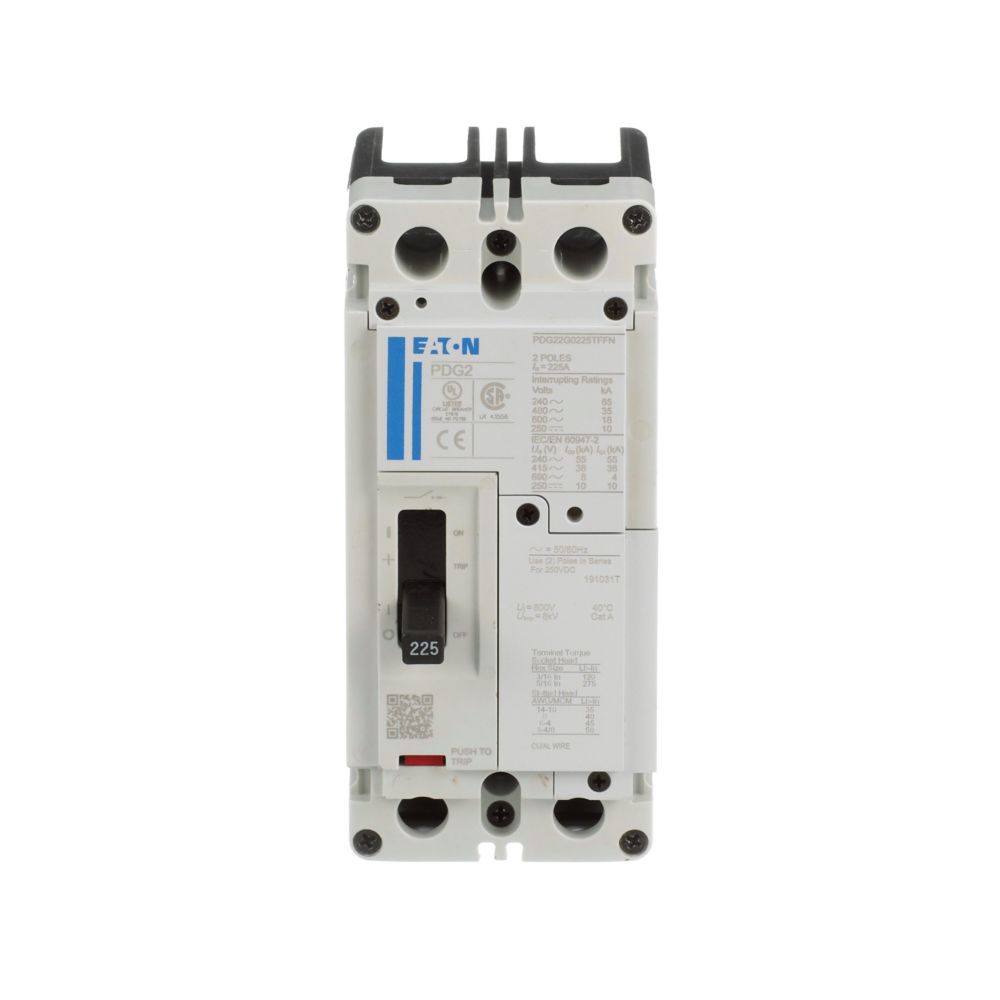

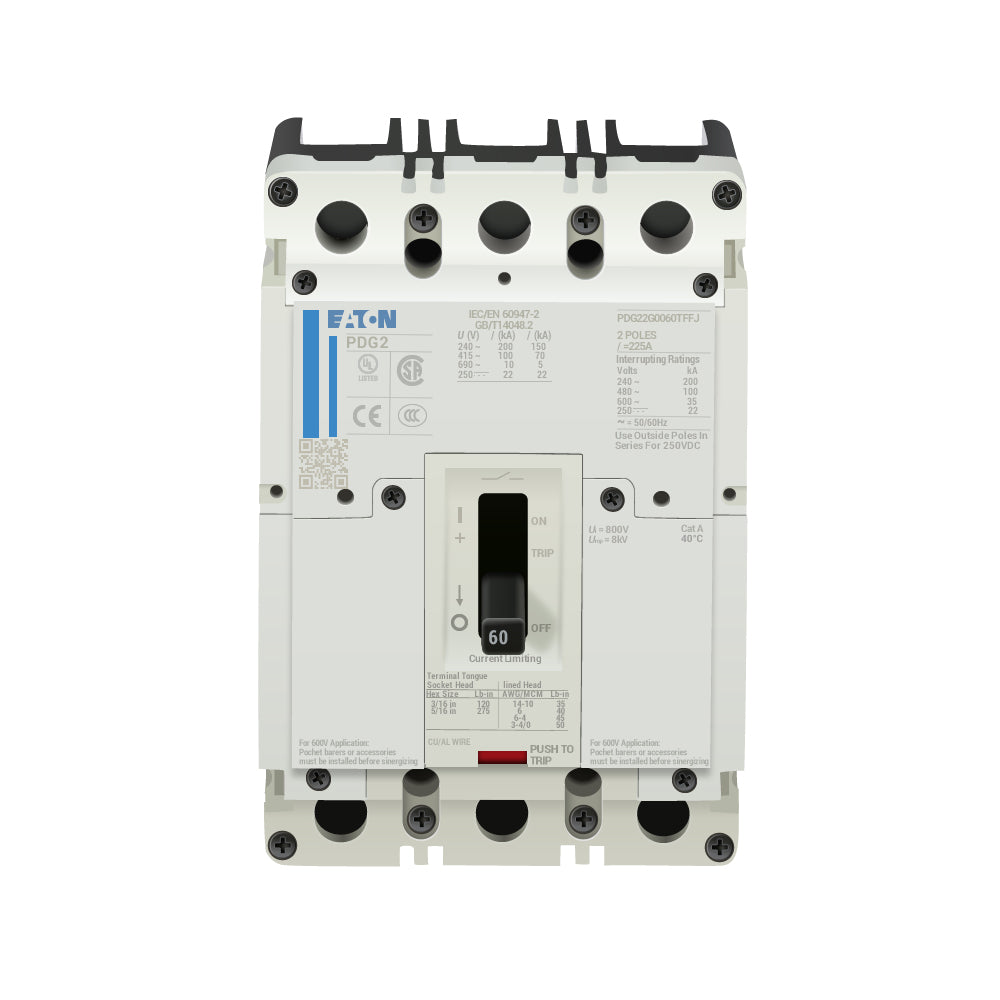

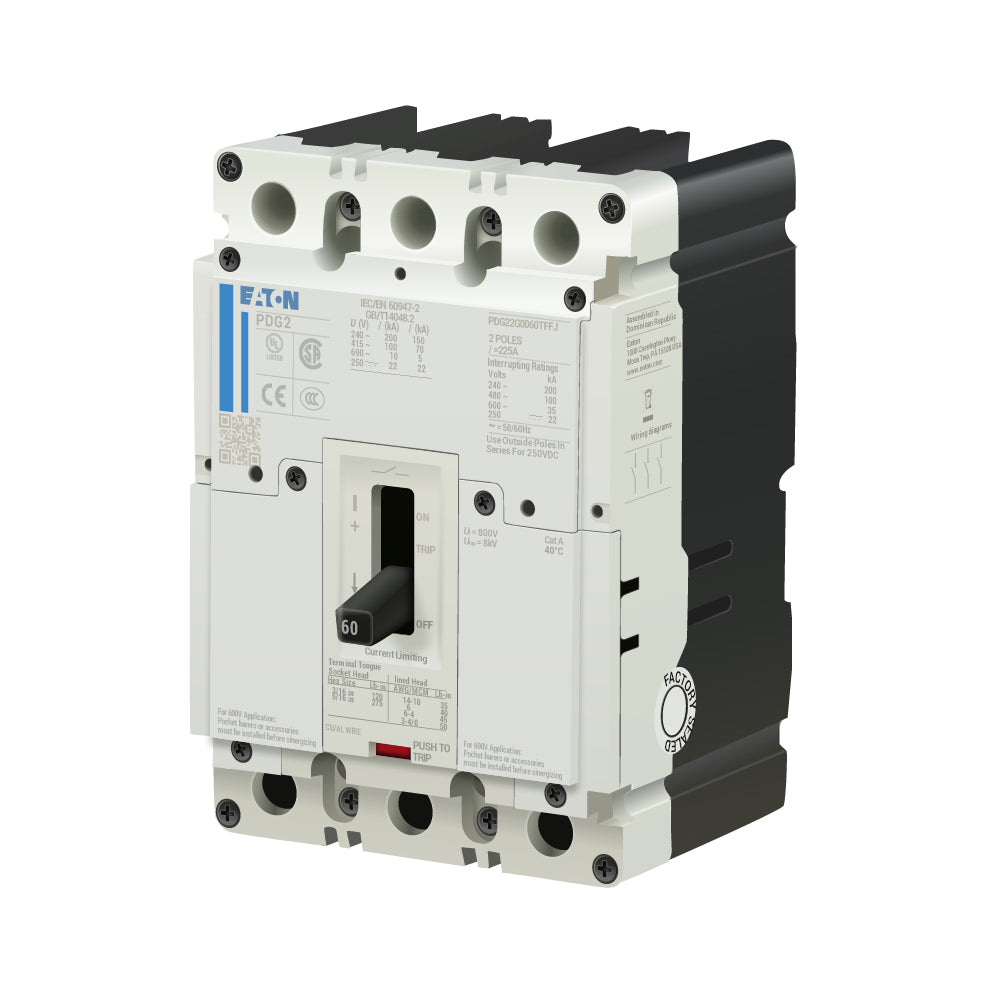

PDG22G0060TFFJ | Eaton Power Defense 60A 2-Pole 600V Molded Case Circuit Breaker
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG22G0060TFFJ
Description
The Eaton PDG22G0060TFFJ is a two-pole molded case circuit breaker designed for dependable overcurrent protection in commercial and industrial electrical systems. Rated at 60 amps and up to 600 VAC, the Eaton PDG22G0060TFFJ provides robust fault interruption and thermal magnetic protection for feeder and branch circuit applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG22G0060TFFJ |
| Subcategory | Molded Case |
| Series | Power Defense |
| Frame Size | Frame 2 |
| Breaker Type | Molded Case Circuit Breaker |
| Current Rating | 60 Amps |
| Voltage Rating | Up to 600 VAC |
| Poles | 2 |
| Phase | Single Phase |
| Trip Unit Type | Thermal Magnetic (Fixed-Fixed) |
| Trip Functions | LI – Long-Time and Instantaneous |
| Interrupting Rating | 35 kAIC at 480 VAC |
| Connection Type | Feed-Thru |
| Terminal Connection | Standard Line and Load Lugs |
| Temperature Rating | -25 °C to 70 °C |
| Certifications | UL 489, CSA, IEC 60947-2, CCC, RoHS |
| Country of Origin | Dominican Republic |
| Weight | 4.74 lb |
Information About PDG22G0060TFFJ
The PDG22G0060TFFJ is part of Eaton’s Power Defense series, built on a Frame 2 platform for globally rated electrical installations. It features a T-M fixed-fixed thermal magnetic trip unit that delivers consistent long-time and instantaneous protection without field adjustment. The breaker supports feed-thru connections with standard line and load terminals, making it compatible with a wide range of panel and switchgear configurations. Designed to meet multiple international standards, it is suitable for use in demanding industrial and commercial environments operating at voltages up to 600 VAC.
Key Features:
- Power Defense Series Design: Engineered for globally rated industrial and commercial circuit protection.
- 60 Amp Current Rating: Supports medium-load feeder and branch circuit applications.
- Two-Pole Configuration: Suitable for single-phase electrical systems requiring dual-conductor protection.
- Thermal Magnetic Trip Unit: Fixed long-time and instantaneous protection ensures reliable fault response.
- High Interrupting Capacity: Rated at 35 kAIC at 480 VAC for effective short-circuit protection.
- Feed-Thru Connection: Allows flexible wiring with standard line and load side lugs.
- Wide Voltage Capability: Rated for operation up to 600 VAC across global installations.
The PDG22G0060TFFJ delivers the reliability and precision required for industrial and commercial power distribution protection.
