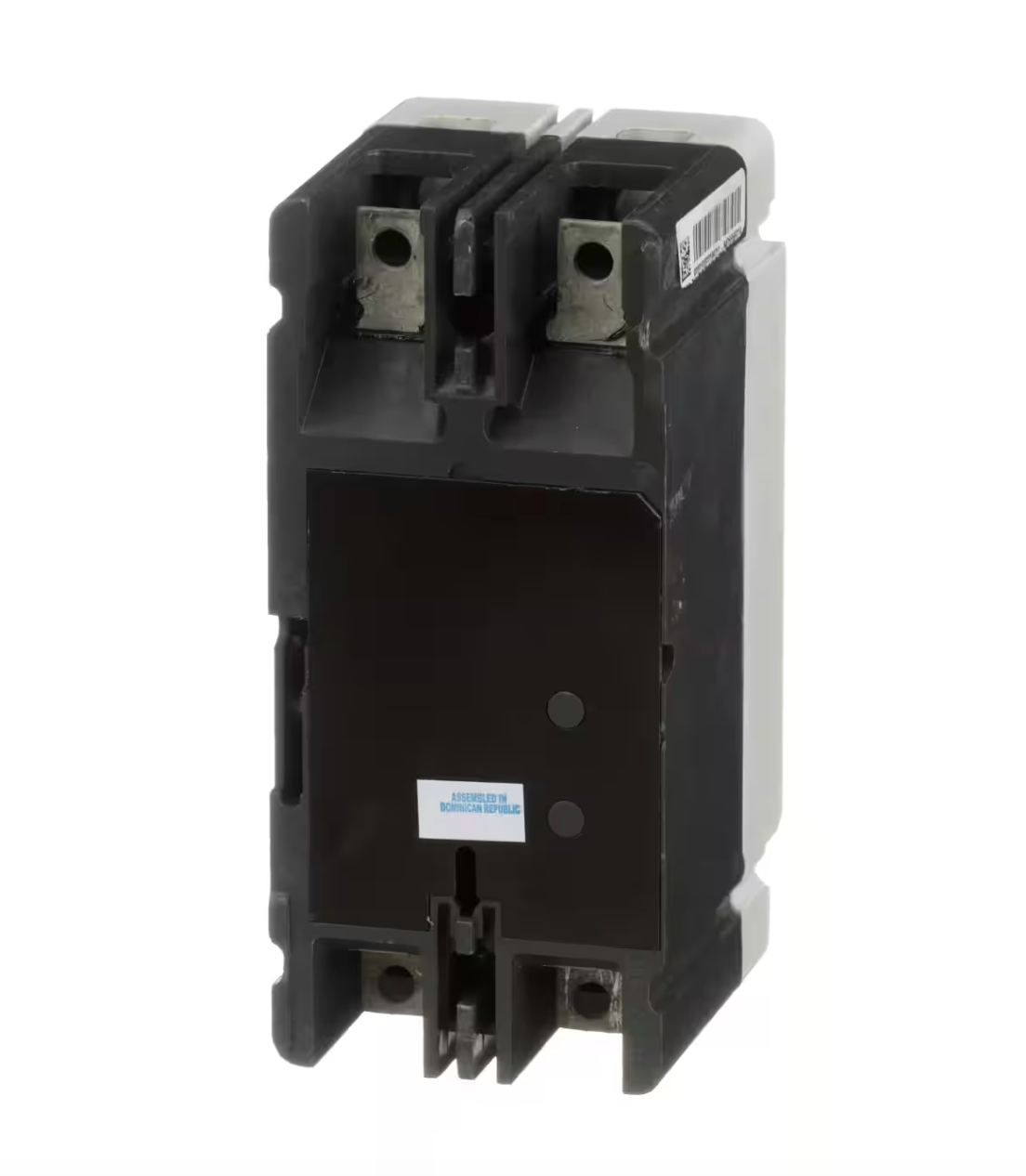

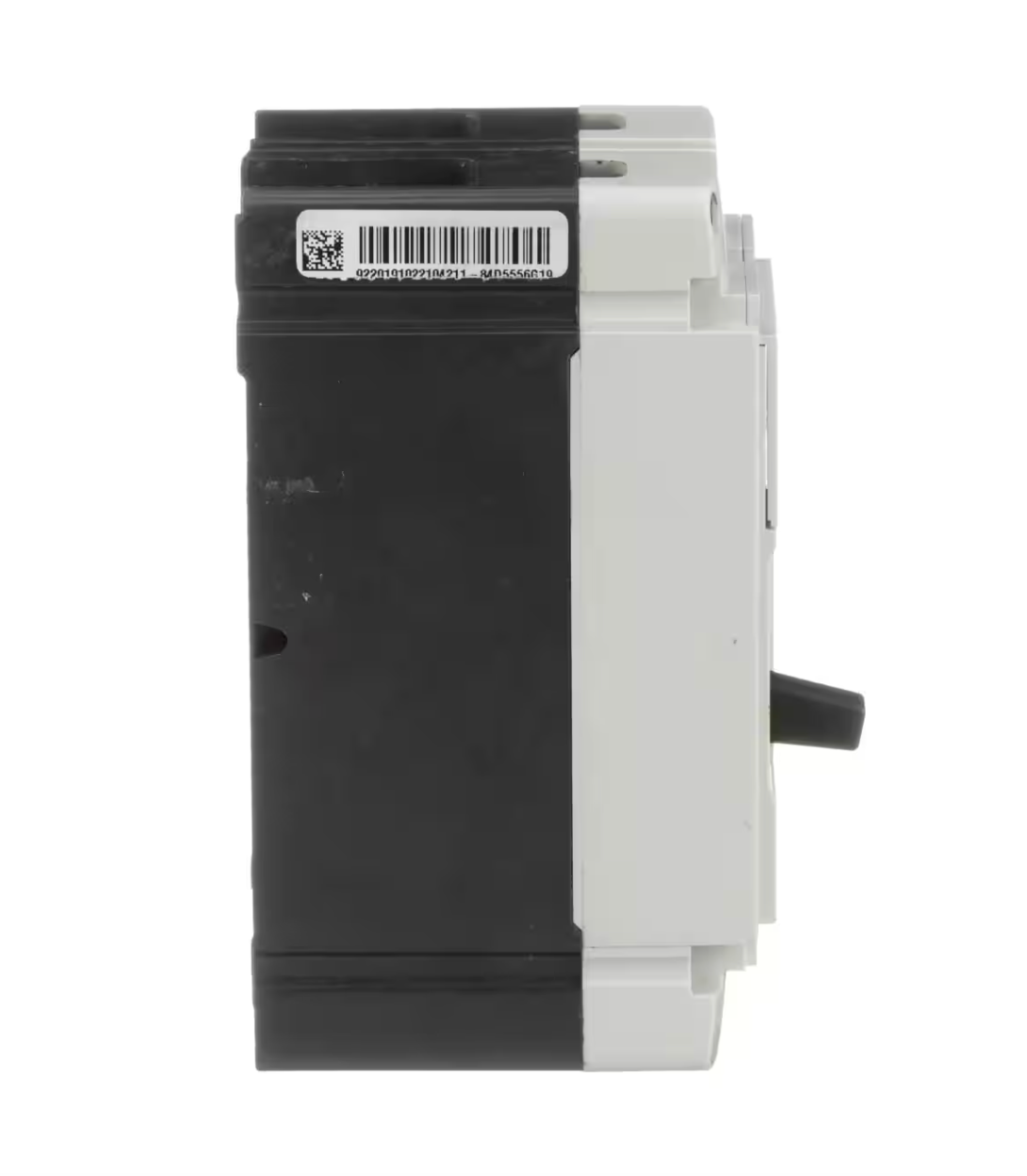

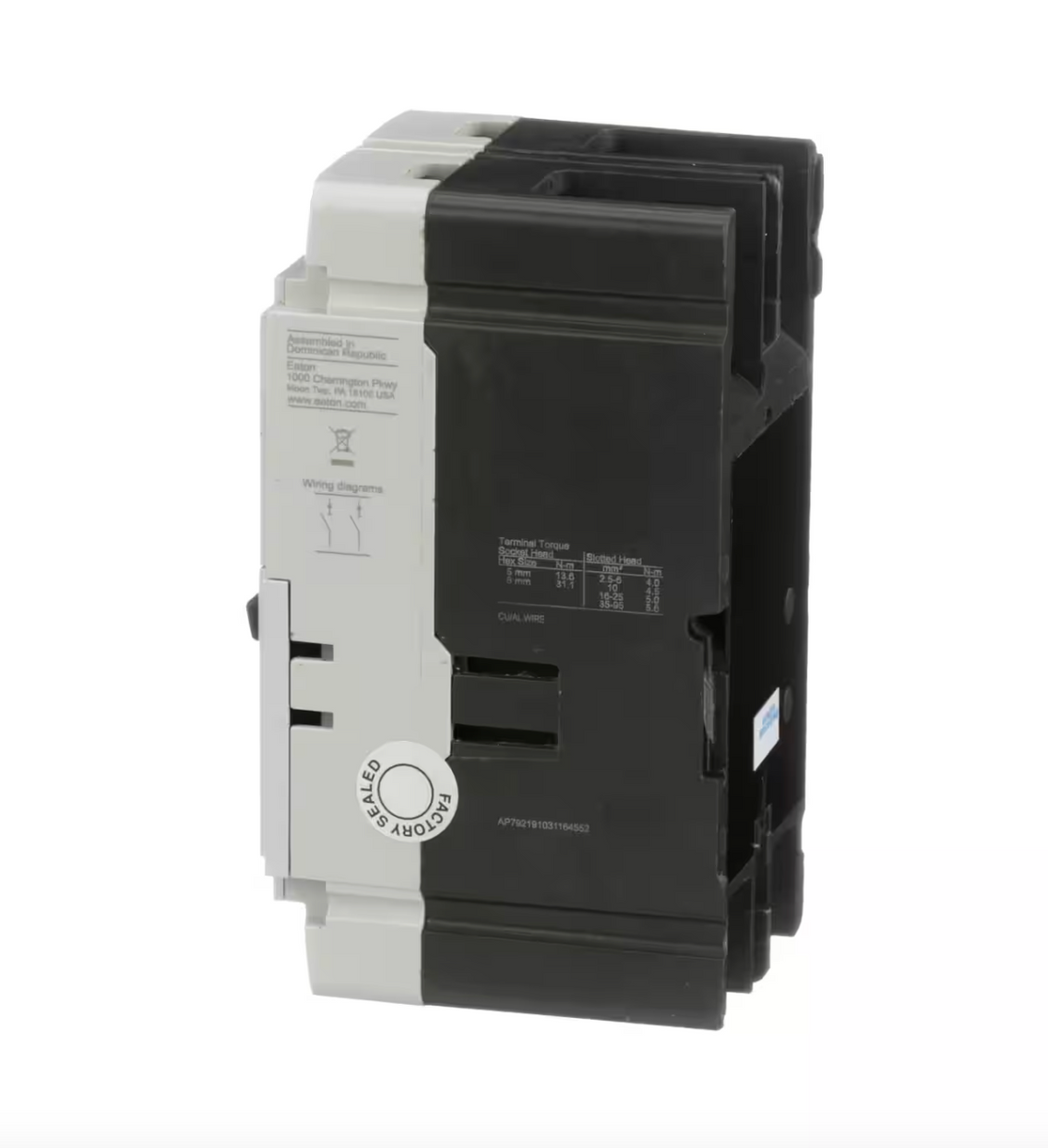

PDG22G0100TFFJ | Eaton Power Defense 100A 2-Pole 600V Molded Case Circuit Breaker
- Regular price
- $826.00
- Sale price
- $826.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG22G0100TFFJ
Description
The Eaton PDG22G0100TFFJ is a 2-pole molded case circuit breaker designed for dependable overcurrent protection in industrial and commercial electrical systems. Rated at 100A and up to 600VAC, the Eaton PDG22G0100TFFJ provides thermal magnetic protection and high interrupting capacity for demanding power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG22G0100TFFJ |
| Subcategory | Molded Case |
| Series | Power Defense |
| Frame Size | Frame 2 |
| Breaker Type | Molded Case Circuit Breaker |
| Current Rating | 100 Amps |
| Voltage Rating | 600 VAC / 250 VDC |
| Poles | 2 |
| Phase | Single Phase |
| Trip Unit Type | Thermal Magnetic (Fixed-Fixed) |
| Trip Functions | LI – Long Time and Instantaneous |
| Interrupting Rating | 35 kAIC at 480 VAC |
| Connection Type | Feed-Thru |
| Terminal Connection | Standard Line and Load Side Lugs |
| Temperature Rating | -25 °C to 70 °C |
| Certifications | UL 489, CSA, IEC 60947-2, CCC, CE, RoHS |
| Country of Origin | Dominican Republic |
| Weight | 4.74 lb |
Information About PDG22G0100TFFJ
The PDG22G0100TFFJ is part of Eaton’s Power Defense series, built on a Frame 2 platform for globally rated electrical installations. It features a fixed thermal and fixed magnetic trip unit that delivers consistent long-time and instantaneous protection without adjustment. The breaker supports feed-thru connections with standard line and load terminals, making it compatible with panelboards and switchgear operating at both AC and DC voltages. Designed to meet multiple international standards, it is suitable for use in harsh industrial environments requiring reliable fault interruption.
Key Features:
- Power Defense Series Design: Engineered for globally rated industrial and commercial power systems.
- 100 Amp Current Rating: Supports higher-load feeder and branch circuit protection.
- Thermal Magnetic Trip Unit: Fixed long-time and instantaneous protection ensures predictable fault response.
- High Interrupting Capacity: Rated at 35kAIC at 480VAC for robust short-circuit protection.
- Wide Voltage Capability: Operates at up to 600VAC and 250VDC for flexible system integration.
- Two-Pole Configuration: Designed for single-phase applications requiring dual-conductor protection.
- Feed-Thru Connections: Allows straightforward wiring using standard line and load side lugs.
The PDG22G0100TFFJ delivers the reliability and precision required for industrial and commercial power distribution protection.
