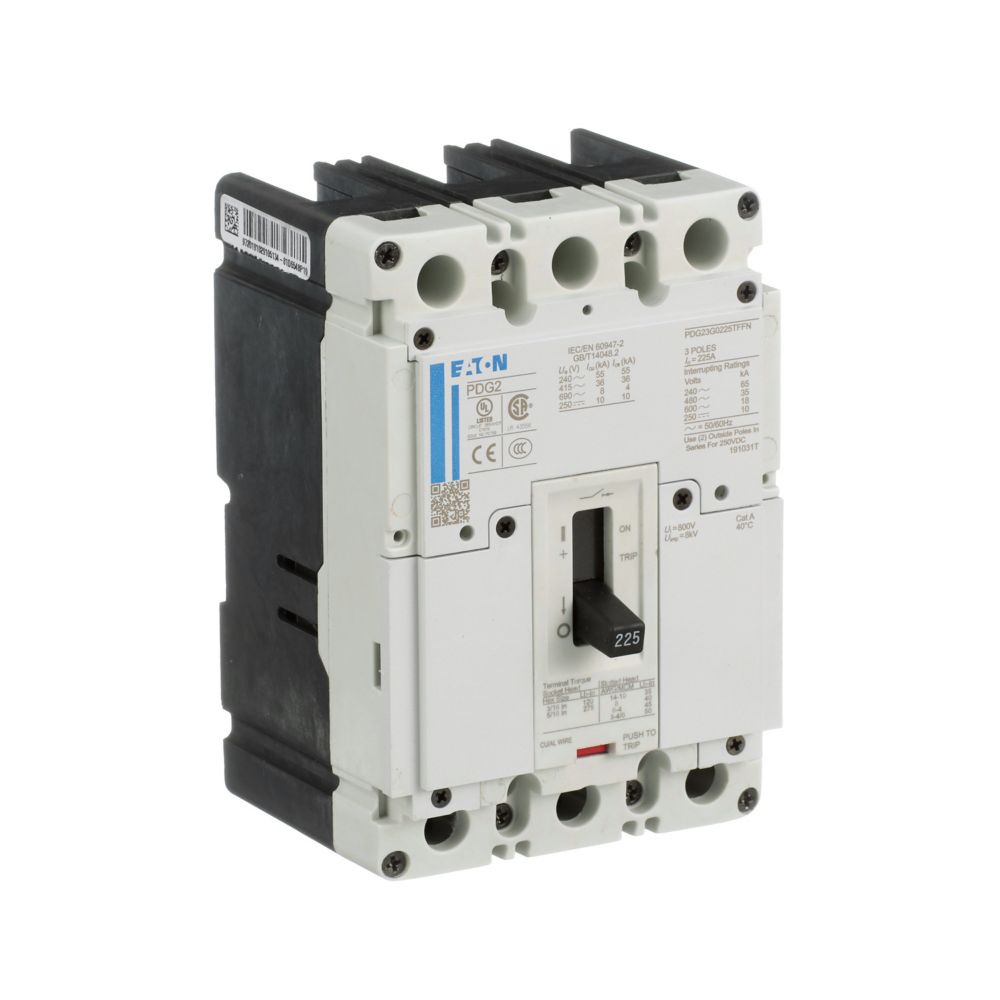

PDG23F0080TFFL | Eaton Power Defense PD2 80A 3-Pole Molded Case Circuit Breaker
- Regular price
- $942.00
- Sale price
- $942.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23F0080TFFL
Description
The Eaton PDG23F0080TFFL is a molded case circuit breaker designed to provide reliable protection against overloads and short circuits in industrial and commercial electrical systems. This Eaton part number PDG23F0080TFFL features a three-pole configuration with an 80 amp current rating and supports electrical systems up to 600 VAC. As part of the Power Defense PD2 Global series, it offers robust performance, high interrupting capacity, and dependable circuit protection for modern power distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG23F0080TFFL |
| Subcategory | Molded Case Circuit Breaker |
| Series | Power Defense PD2 Global |
| Frame Type | Frame 2 |
| Breaker Type | Molded Case Circuit Breaker |
| Number of Poles | 3 Pole |
| Current Rating | 80 A |
| Voltage Rating | 600 VAC |
| Trip Unit | T298 Thermal-Magnetic |
| Interrupt Rating | 25 kAIC @ 480 VAC |
| Interrupt Rating Range | 35 kAIC @ 240 VAC |
| DC Interrupt Rating | 10 kAIC @ 125 VDC / 250 VDC |
| Terminal Type | Standard Terminals Load Only |
| Certifications | UL 489, CSA, IEC 60947-2, CCC |
| Compliance | RoHS Compliant |
| Dimensions (L×W×H) | 88.9 × 104.6 × 152.4 mm |
| Weight | 1.82 kg |
Information About PDG23F0080TFFL
The PDG23F0080TFFL is a Power Defense PD2 Global molded case circuit breaker engineered by Eaton for advanced circuit protection in industrial and commercial power networks. It utilizes a Frame 2 design and incorporates a T298 trip unit that provides precise thermal and magnetic protection against overload and short-circuit faults. The breaker is built with standard load-side terminals and is designed for integration into panelboards, switchgear, and electrical control systems. With certifications including UL 489, CSA, IEC 60947-2, and CCC marking, it meets global safety and performance requirements while remaining compliant with RoHS environmental standards.
Key Features:
- 80 Amp Current Rating: Provides dependable protection for lower-capacity power distribution circuits.
- Three-Pole Configuration: Designed for balanced protection in three-phase electrical systems.
- Power Defense PD2 Platform: Part of Eaton’s advanced global molded case circuit breaker product line.
- Thermal-Magnetic Trip Unit: T298 trip technology ensures accurate response to overload and short-circuit events.
- High Interrupting Capacity: Rated up to 25 kAIC at 480 VAC and 35 kAIC at 240 VAC for reliable fault interruption.
- Standard Load-Side Terminals: Supports secure wiring connections in panelboards and switchgear.
- Global Compliance: Certified to UL 489, CSA, IEC 60947-2, and CCC standards for international applications.
- RoHS Compliant Construction: Manufactured to meet environmental material restrictions.
The PDG23F0080TFFL delivers the reliability and precision required for protecting industrial and commercial electrical distribution circuits.
