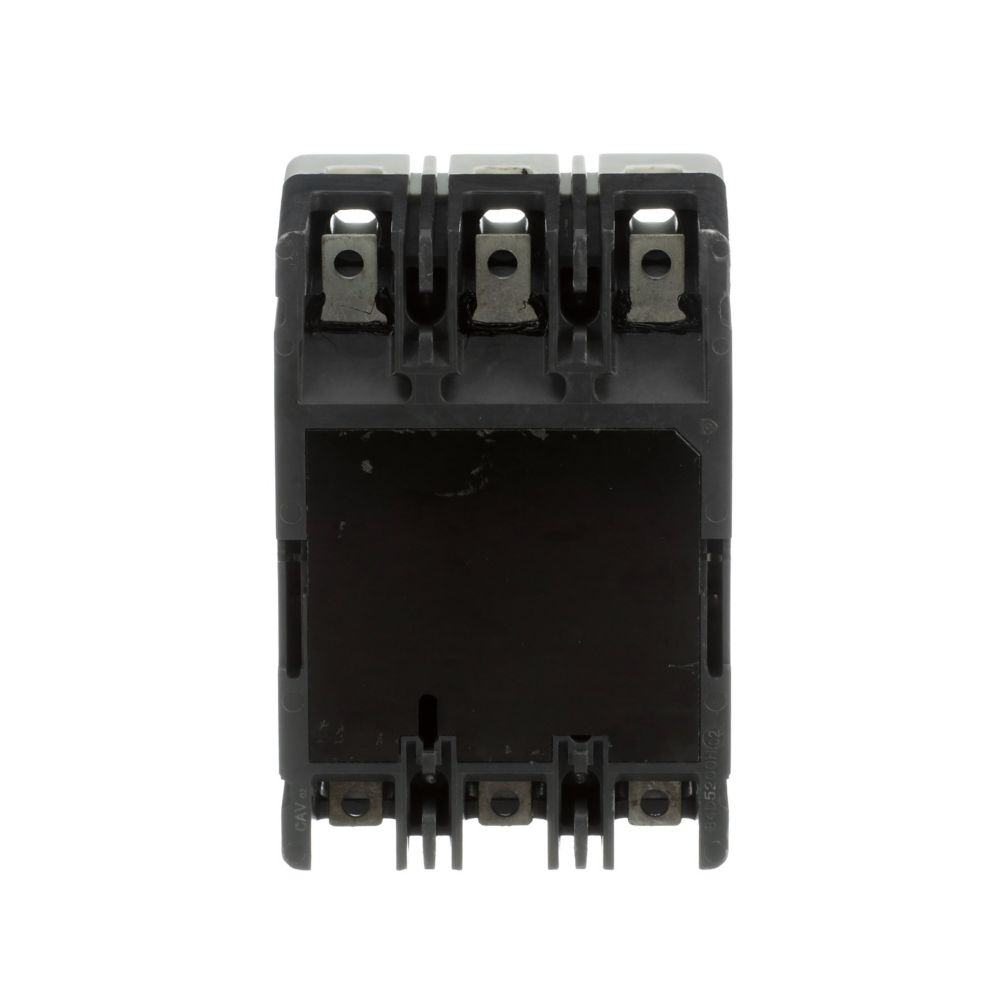

PDG23G0050TFFL | Eaton Power Defense 50A 3-Pole Molded Case Circuit Breaker, 600VAC
- Regular price
- $569.05
- Sale price
- $569.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23G0050TFFL
Description
The Eaton PDG23G0050TFFL molded case circuit breaker is a 3-pole, 50 A power protection device designed for industrial and commercial electrical distribution systems. Rated for up to 600 VAC, it uses a thermal-magnetic trip unit with long-time and instantaneous protection to safeguard circuits against overloads and short circuits. This breaker is part of Eaton’s Power Defense series and is suitable for globally rated applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Electrical Protection |
| Part Number | PDG23G0050TFFL |
| Subcategory | Molded Case Circuit Breakers |
| Series | Power Defense |
| Breaker Type | Molded Case Circuit Breaker |
| Number of Poles | 3 |
| Rated Current | 50 A |
| Rated Voltage | 600 VAC |
| Phase | 3-Phase |
| Trip Unit Type | Thermal Magnetic |
| Trip Function | LI – Long-Time and Instantaneous |
| Interrupt Rating | 35 kAIC at 480 VAC |
| Connection Type | Feed-Thru, Bolt-On |
| Terminal Type | Standard Load Side Lug |
| Certifications | UL, CSA, IEC, CCC |
| Compliance | RoHS |
| Frame Type | Complete Breaker (Frame 1) |
| Weight | 1.82 kgs |
Information About PDG23G0050TFFL
The PDG23G0050TFFL is part of Eaton Cutler-Hammer’s Power Defense family, engineered to meet international standards for molded case circuit breakers. It is designed as a complete breaker with a feed-thru, bolt-on connection style for secure installation in panelboards and switchgear. The unit supports three-phase systems and provides LI trip functionality to ensure dependable response to both sustained overloads and instantaneous fault conditions. Certified to UL, CSA, IEC, and CCC standards, it is intended for use in globally compliant electrical installations.
Key Features
- Power Defense Series Breaker: Designed for global electrical protection applications with international approvals.
- Three-Pole Configuration: Provides coordinated protection for three-phase power systems.
- 50 Amp Current Rating: Suitable for medium-load branch and feeder circuit protection.
- 600 VAC Voltage Rating: Supports high-voltage industrial and commercial power distribution.
- Thermal-Magnetic Protection: Combines overload and short-circuit protection in a single trip unit.
- LI Trip Functionality: Provides long-time and instantaneous trip response for system safety.
- High Interrupting Capacity: Rated at 35 kAIC at 480 VAC for fault protection.
The PDG23G0050TFFL delivers the reliability and precision required for industrial and commercial power distribution and circuit protection systems.
