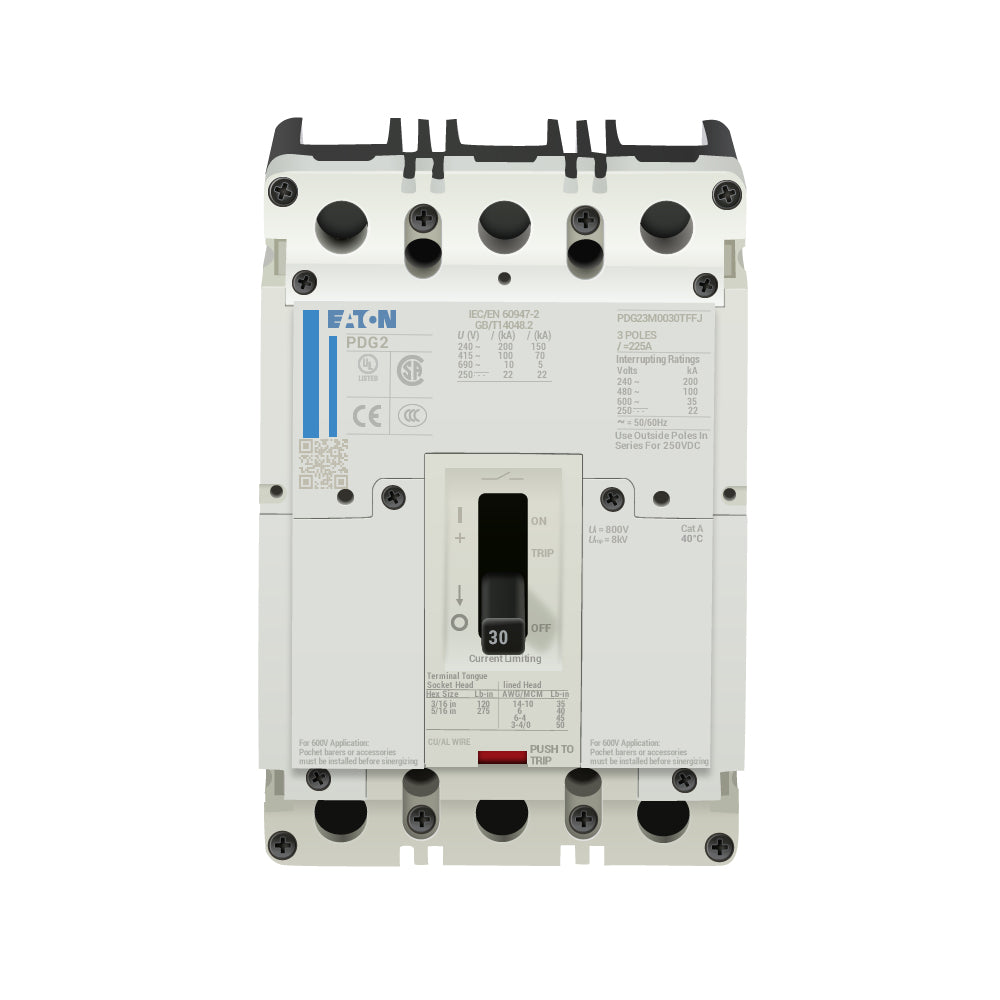

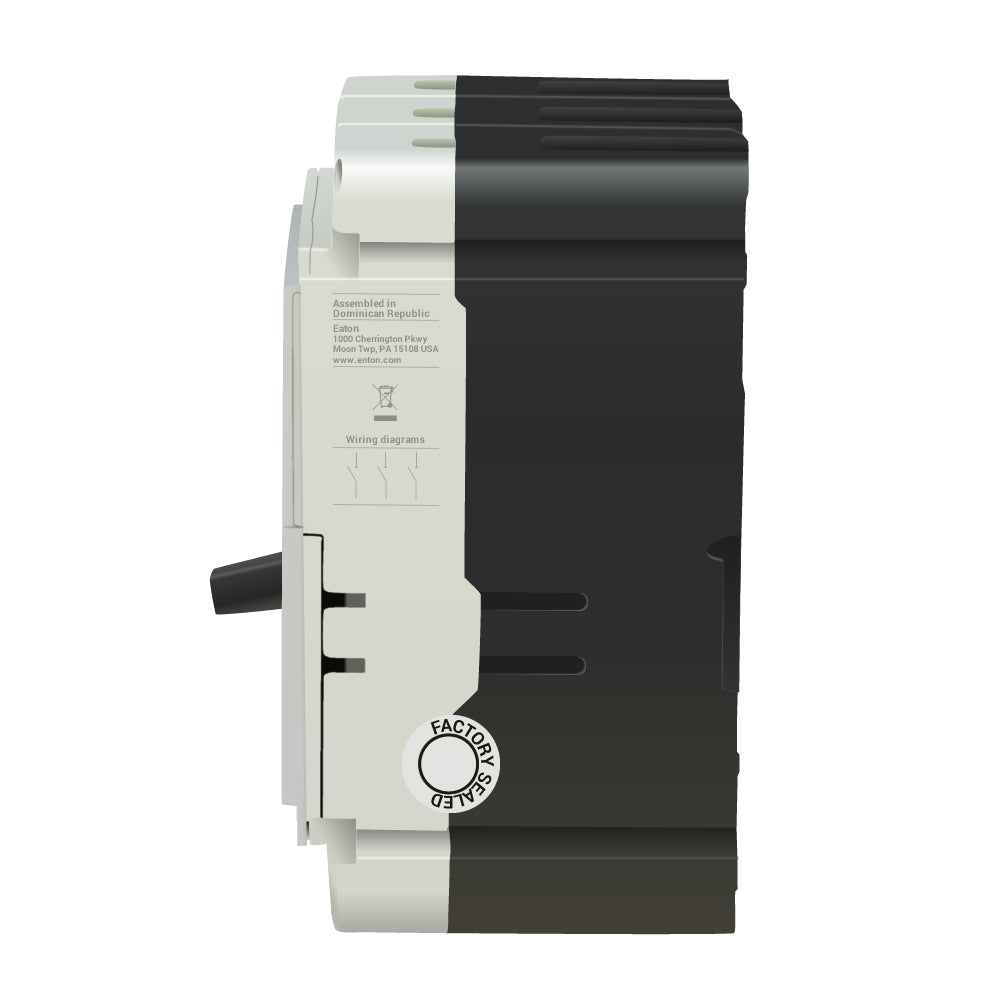

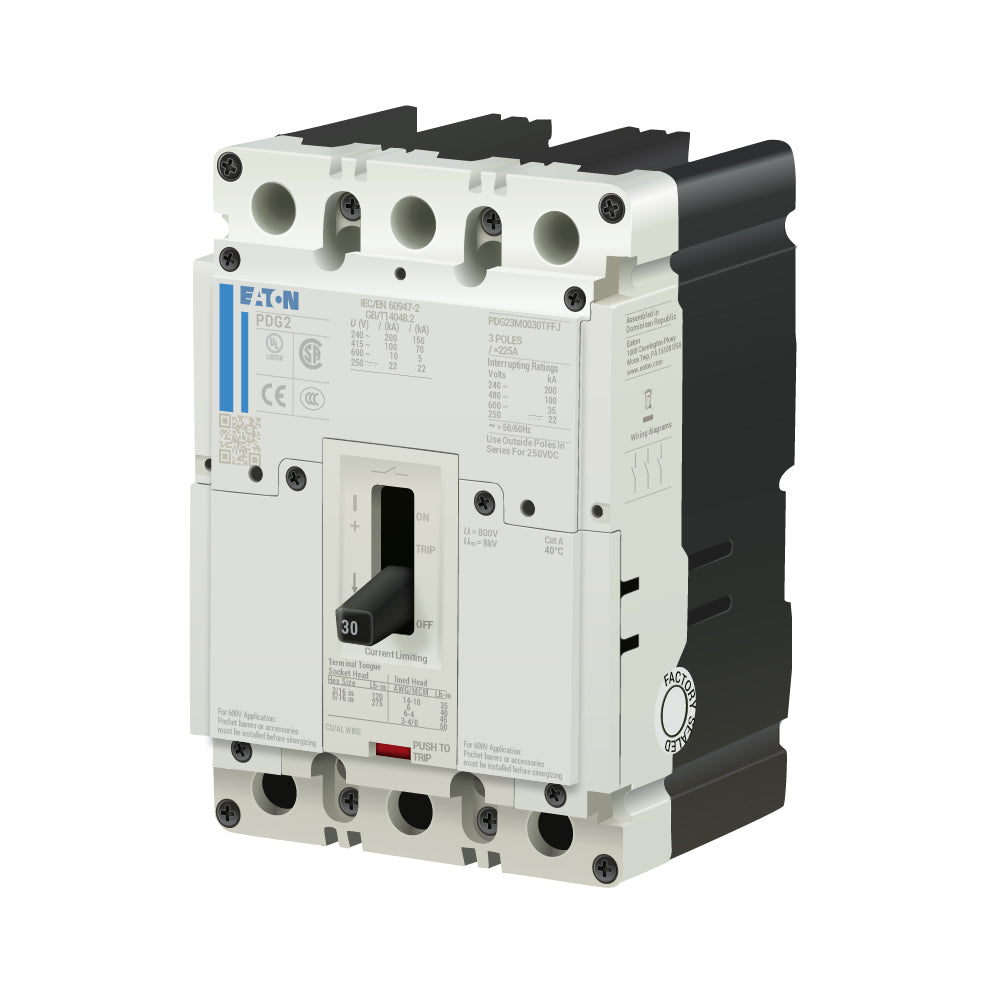

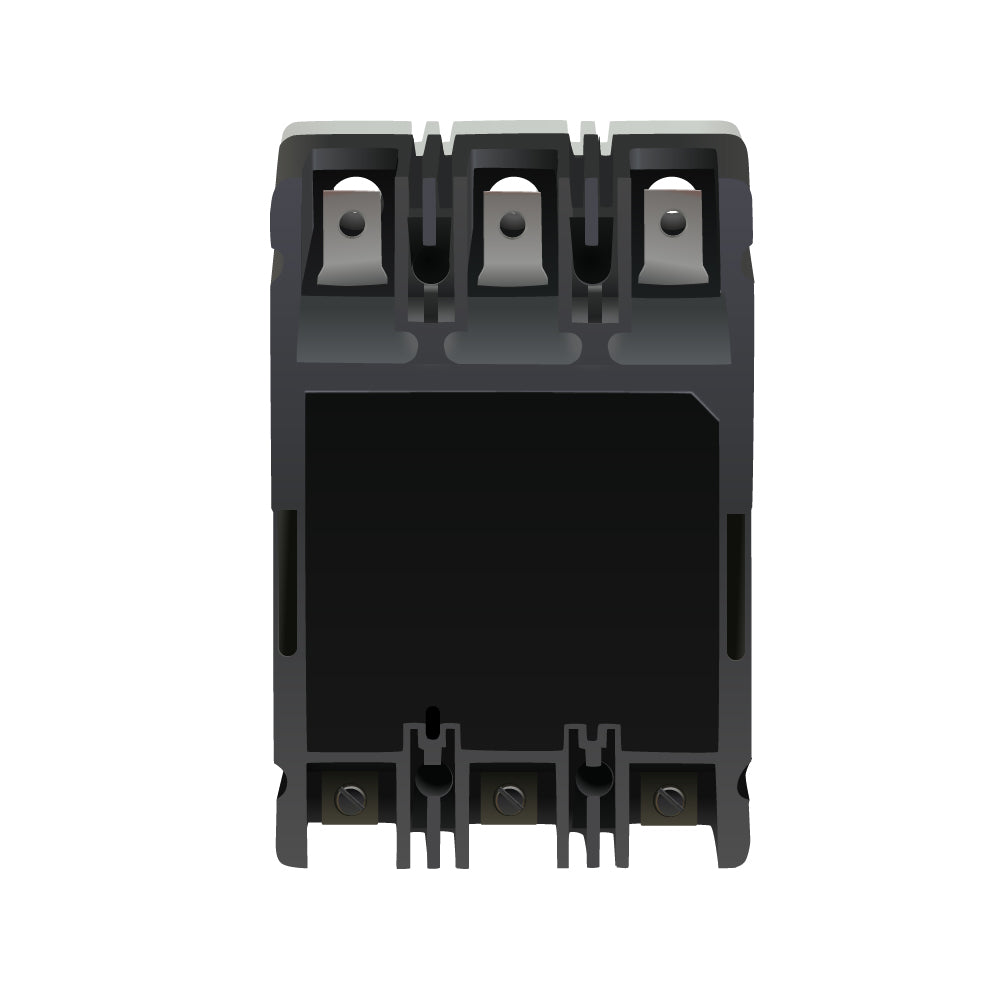

PDG23M0030TFFL | Eaton 3 Pole Circuit Breaker
- Regular price
- $975.00
- Sale price
- $975.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PDG23M0030TFFL
Description
Eaton PDG23M0030TFFL is a 3-pole, 30A molded case circuit breaker from the Power Defense series. It features a thermal-magnetic trip unit (LI), supports up to 600VAC, and offers high interrupting capacity (65kA at 480VAC). UL 489 and IEC compliant, suitable for global applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Circuit Breakers
|
| Part Number | PDG23M0030TFFL |
| Subcategory | Molded Case Circuit Breakers |
| Amperage Rating |
30 A |
| Circuit Breaker Frame Type | Complete breaker |
| Frame | 2 |
| Number of Poles | Three-pole |
| Circuit Breaker Type | PD2 Global |
| Class | Class A |
| Trip Type | T298 |
| Voltage Rating |
600 Vac
|
| Interrupt Rating | 65 kAIC at 480 Vac |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Terminal Connection | Load side lug |
| Standards | RoHS |
| Length/Depth | 88.9 mm |
| Height | 152.4 mm |
| Width | 104.6 mm |
| Weight | 1.82 kgs |
Information About PDG23M0030TFFL
The PDG23M0030TFFL is part of Eaton’s Power Defense molded case circuit breaker line—robust, globally certified breakers engineered for reliable circuit protection in industrial and commercial electrical systems. This 3-pole, bolt-on model features a fixed thermal-magnetic (LI) trip unit and delivers exceptional performance with interrupting capacities up to 65 kA at 480 VAC. Designed for panelboard or switchgear integration, it operates at voltages up to 600 VAC, offering a compact solution for overcurrent protection in demanding applications.
Key Features:
- 3-Pole Protection: Supports three-phase electrical systems, making it ideal for industrial motor loads, HVAC, and lighting circuits.
- Fixed Thermal-Magnetic Trip Unit: Provides dependable long-time (overload) and instantaneous (short-circuit) protection without adjustments—ensuring consistent, maintenance-free operation.
- High Interrupting Capacity: Rated for up to 65 kA at 480 VAC, allowing safe interruption of high fault currents in mission-critical environments.
- Bolt-On Mounting: Designed for secure, panel-mounted installation with standard line/load lug terminals for quick field wiring.
- Global Standards Compliance: UL 489 listed, IEC 60947-2 compliant, and certified for CSA, CCC, and RoHS—ensuring compatibility with international projects.
- Compact Frame: Eaton’s Frame 2 design fits in limited-space enclosures while supporting rugged duty cycles and high-performance demands.
- Durable Construction: Built with industrial-grade materials and thermal tolerance suitable for switchgear rooms, MCCs, and harsh facility conditions.
- Voltage Versatility: Operates at up to 600 VAC, supporting standard low-voltage power distribution across North American and global sites.
- Ease of Integration: Compatible with Power Defense accessories, metering, and diagnostic modules for system-level monitoring and control.
- Application Flexibility: Ideal for panelboards, switchboards, motor control centers, and OEM equipment requiring compact, high-performance circuit protection.
The Eaton PDG23M0030TFFL molded case breaker delivers compact protection with high fault interruption, thermal-magnetic reliability, and global certification—making it an excellent choice for panel builders, OEMs, and electrical contractors working across a wide range of industrial and commercial environments.
