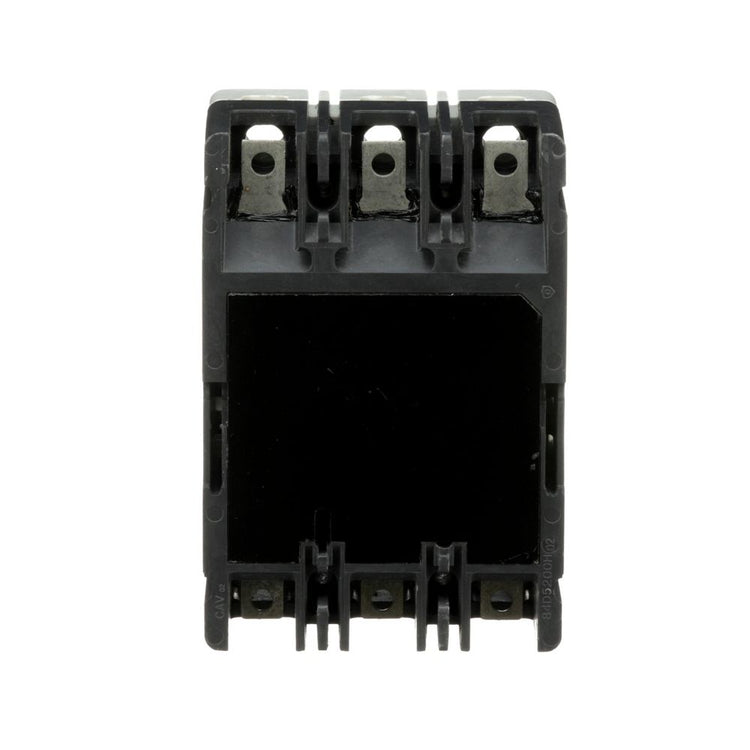

PDG23M0100TFFJ | Eaton Power Defense 100A 3-Pole Molded Case Circuit Breaker 600VAC
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23M0100TFFJ
Description
The Eaton PDG23M0100TFFJ is a molded case circuit breaker engineered to provide dependable overcurrent protection in commercial and industrial power distribution systems. This Eaton part number PDG23M0100TFFJ features a 100 amp rating with support for up to 600 Vac operation and a three-pole configuration for three-phase circuits. Designed as part of the Eaton Power Defense PD2 Global series, it delivers high interrupting capacity and reliable protection for electrical panels, switchboards, and industrial equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG23M0100TFFJ |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker |
| Series | Power Defense |
| Breaker Platform | PD2 Global |
| Frame Size | Frame 2 |
| Number of Poles | Three-pole |
| Amperage Rating | 100 A |
| Voltage Rating | 600 Vac |
| Trip Type | T298 |
| Class | Class A |
| Interrupt Rating | 65 kAIC @ 480 Vac; 100 kAIC @ 240 Vac |
| DC Interrupt Rating | 22 kAIC @ 125/250 Vdc |
| Terminals | Standard Line and Load |
| Certifications | UL 489, CSA, IEC 60947-2, CCC |
| Compliance | RoHS Compliant |
| Dimensions (L×W×H) | 88.9 × 104.6 × 152.4 mm |
| Weight | 1.82 kg |
Information About PDG23M0100TFFJ
The PDG23M0100TFFJ is a Power Defense molded case circuit breaker developed by Eaton for modern low-voltage electrical distribution systems. It belongs to the PD2 Global breaker platform and uses a Class A design with a T298 trip unit to provide accurate overcurrent protection. The breaker features a three-pole configuration suitable for three-phase power systems commonly used in industrial machinery and commercial facilities. With robust line-and-load terminals and compliance with major international standards such as UL, CSA, and IEC, it ensures dependable protection and compatibility with global electrical installations.
Key Features:
- 100 Amp Current Rating: Provides reliable overcurrent protection for circuits rated up to 100 A.
- Power Defense PD2 Global Platform: Designed as part of Eaton’s advanced PD2 Global molded case breaker series.
- Three-Pole Configuration: Ideal for protecting three-phase power distribution circuits.
- High Interrupting Capacity: Supports up to 100 kAIC at 240 Vac and 65 kAIC at 480 Vac for demanding fault conditions.
- T298 Trip Unit: Delivers precise overcurrent protection for overload and short-circuit conditions.
- 600 Vac Voltage Rating: Suitable for industrial and commercial electrical distribution systems.
- Standard Line and Load Terminals: Enables straightforward installation and secure electrical connections.
- Multi-Standard Certifications: Approved under UL 489, CSA, IEC 60947-2, and CCC for global compliance.
The PDG23M0100TFFJ delivers the reliability and precision required for protecting industrial power distribution equipment and commercial electrical infrastructure.
