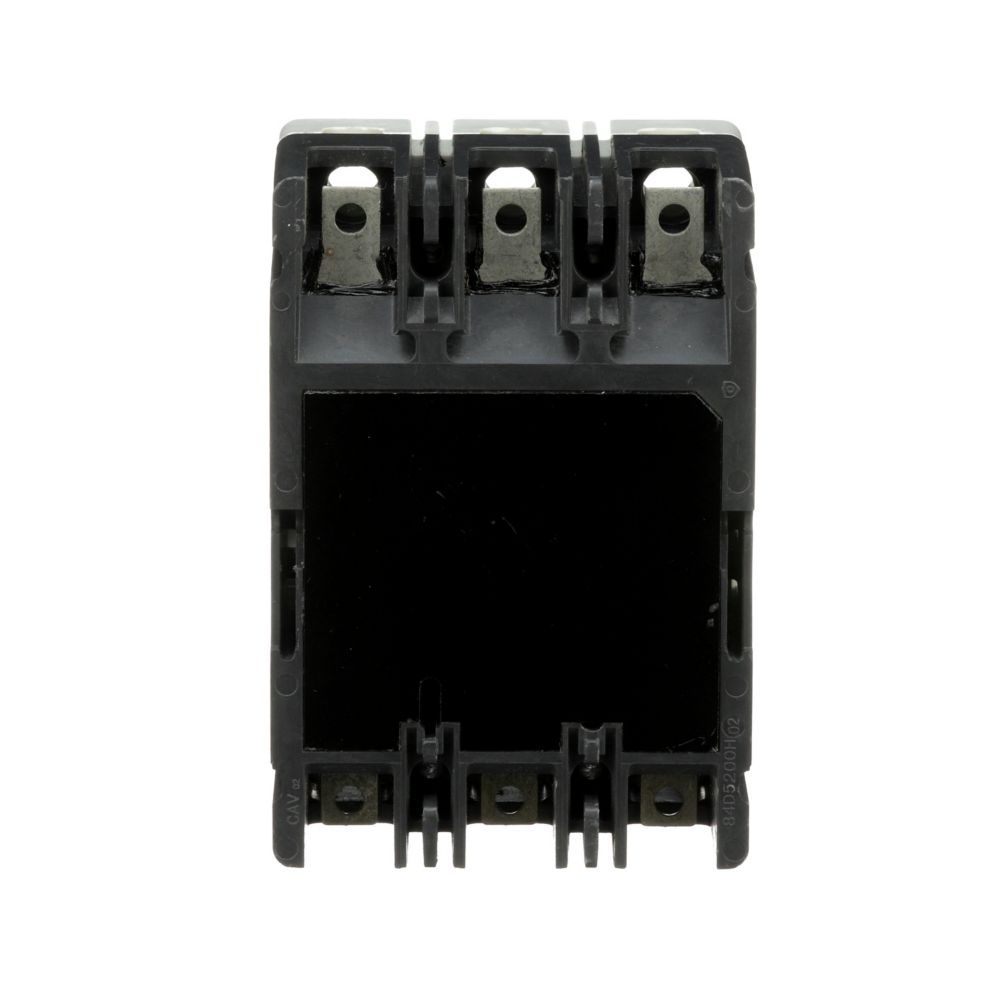

PDG23M0125TFFL | Eaton Power Defense 125A 3-Pole Molded Case Circuit Breaker 600VAC
- Regular price
- $685.00
- Sale price
- $685.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23M0125TFFL
Description
The Eaton PDG23M0125TFFL is a Power Defense molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial electrical distribution systems. This Eaton part number PDG23M0125TFFL features a 125 amp rating, a three-pole configuration, and supports systems operating up to 600 Vac. Built on the PD2 Global platform, it offers high interrupting capacity and reliable protection for panelboards, switchgear, and industrial equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG23M0125TFFL |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Power Defense Molded Case Circuit Breaker |
| Series | Power Defense |
| Breaker Platform | PD2 Global |
| Frame Size | Frame 2 |
| Number of Poles | Three-pole |
| Amperage Rating | 125 A |
| Voltage Rating | 600 Vac |
| Trip Type | T298 |
| Class | Class A |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Interrupt Rating (240V) | 100 kAIC at 240 Vac |
| DC Interrupt Rating | 22 kAIC at 125 Vdc / 250 Vdc |
| Terminals | Standard Terminals Load Only |
| Compliance | RoHS Compliant |
| Certifications | UL 489, CSA, IEC 60947-2, CCC |
| Dimensions (L × W × H) | 88.9 × 104.6 × 152.4 mm |
| Weight | 1.82 kg |
Information About PDG23M0125TFFL
The PDG23M0125TFFL is a molded case circuit breaker from Eaton’s Power Defense series, engineered to deliver advanced protection and operational reliability in low-voltage power distribution applications. It belongs to the PD2 Global breaker family and incorporates a T298 trip unit with Class A protection characteristics. The breaker is designed with a three-pole configuration and standard load terminals, making it suitable for three-phase distribution systems commonly used in commercial facilities and industrial installations. Certified under UL, CSA, IEC, and CCC standards and compliant with RoHS requirements, it supports global electrical infrastructure and safety standards.
Key Features:
- 125 Amp Current Rating: Provides dependable overcurrent protection for circuits rated up to 125 A.
- Power Defense PD2 Global Platform: Designed as part of Eaton’s advanced Power Defense breaker series for modern distribution systems.
- Three-Pole Configuration: Suitable for protecting three-phase electrical circuits in industrial and commercial installations.
- High Interrupting Capacity: Rated up to 100 kAIC at 240 Vac and 65 kAIC at 480 Vac for demanding fault conditions.
- T298 Electronic Trip System: Ensures accurate overload and short-circuit protection performance.
- 600 Vac Voltage Rating: Compatible with high-voltage industrial distribution systems.
- Standard Load Terminals: Provides secure electrical connections and simplified installation.
- Global Certifications: UL 489, CSA, IEC 60947-2, and CCC approvals for international compliance.
The PDG23M0125TFFL delivers the reliability and precision required for protecting critical industrial and commercial electrical distribution systems.
