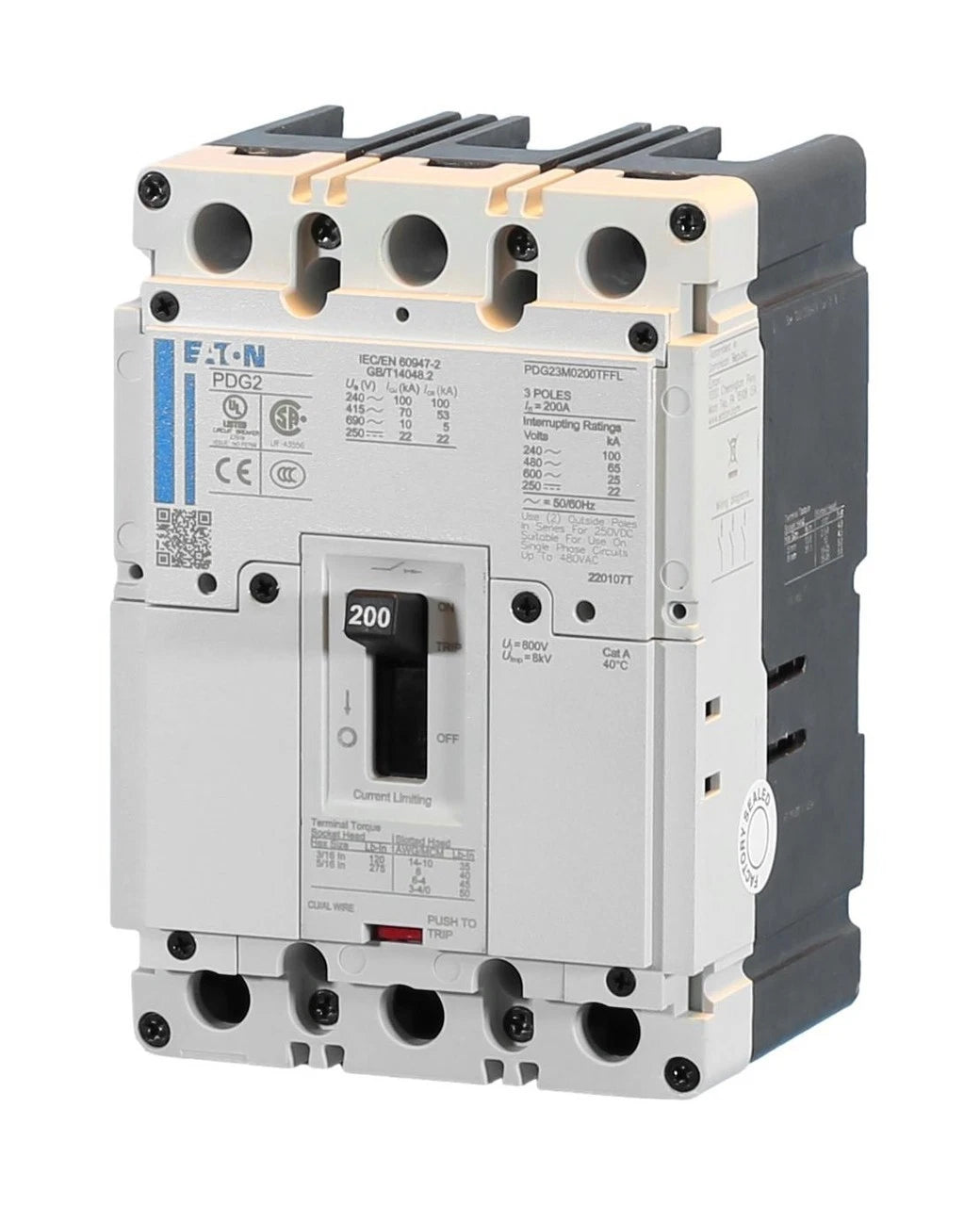

PDG23M0200TFFL | Eaton Power Defense 200 A 3-Pole Molded Case Circuit Breaker
- Regular price
- $1,067.80
- Sale price
- $1,067.80
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23M0200TFFL
Description
The Eaton PDG23M0200TFFL is a three-pole molded case circuit breaker designed to provide reliable thermal-magnetic protection in industrial and commercial power distribution systems. Rated at 200 A and up to 600 VAC, it is engineered to safely interrupt fault currents and protect electrical equipment. This breaker is part of the Power Defense series, offering robust performance in demanding three-phase applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDG23M0200TFFL |
| Subcategory | Molded Case Circuit Breakers |
| Series | Power Defense (PDG) |
| Circuit Breaker Type | Molded Case, 3-Pole |
| Rated Current | 200 A |
| Rated Voltage | 600 VAC |
| Phase | 3-Phase |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time, Instantaneous (LI) |
| Interrupting Rating | 65 kAIC @ 480 VAC |
| Terminal Connection | Standard Load Side Lug |
| Standards | UL, CSA, IEC, CCC, RoHS |
| Dimensions (H × W × D) | 3.5 × 6 × 4.11 in |
| Weight | 4.01 lbs |
Information About PDG23M0200TFFL
The PDG23M0200TFFL is part of Eaton’s Power Defense PDG series of molded case circuit breakers. It features a thermal-magnetic protection mechanism with long-time and instantaneous trip functions for dependable circuit protection. The breaker is designed for three-phase systems and supports high interrupting capacity in industrial environments. It is commonly used in switchboards, panelboards, and power distribution assemblies requiring compliance with global electrical standards.
Key Features:
- Three-Pole Circuit Protection: Designed for three-phase electrical distribution systems
- Thermal-Magnetic Trip Unit: Provides long-time and instantaneous overcurrent protection
- High Interrupting Capacity: Rated up to 65 kAIC at 480 VAC for fault protection
- Power Defense Series Design: Engineered for industrial and commercial power applications
- Feed-Thru Connection Type: Supports standard load-side lug connections
- Global Compliance: Certified to UL, CSA, IEC, and CCC standards
- Molded Case Construction: Ensures durability and electrical safety
The PDG23M0200TFFL delivers the reliability and precision required for circuit protection in industrial power distribution systems.
