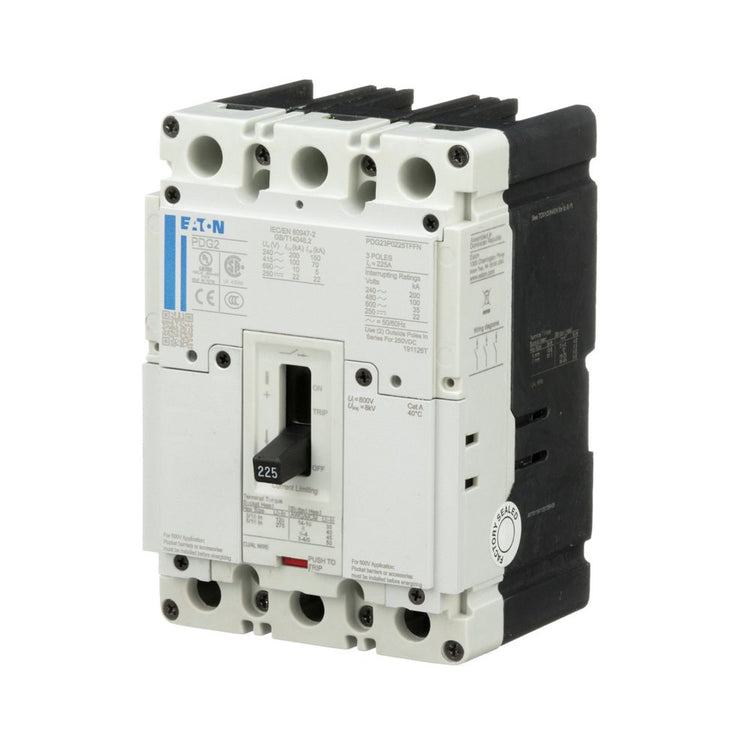

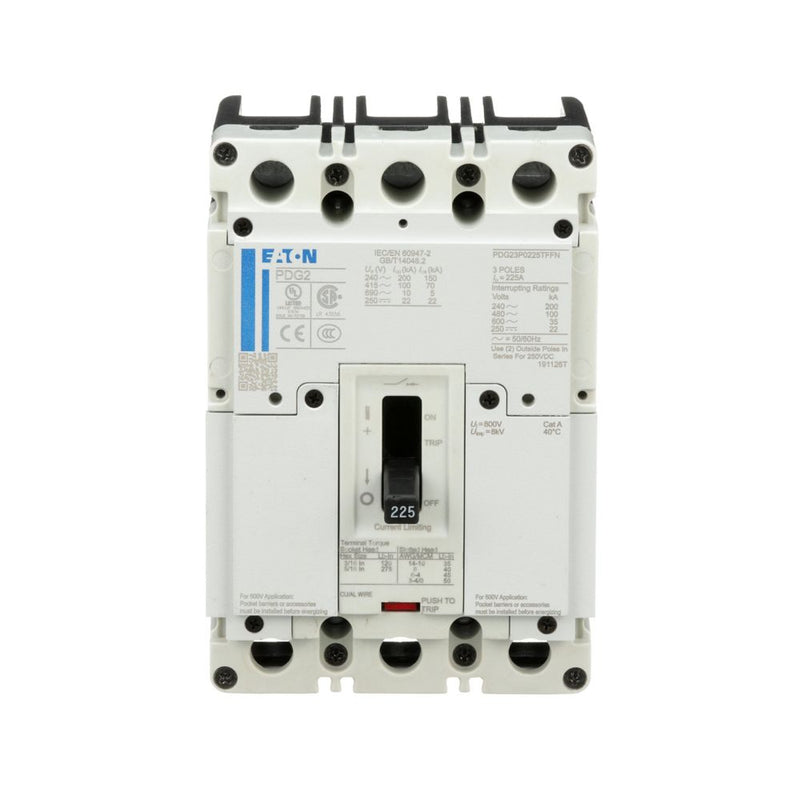

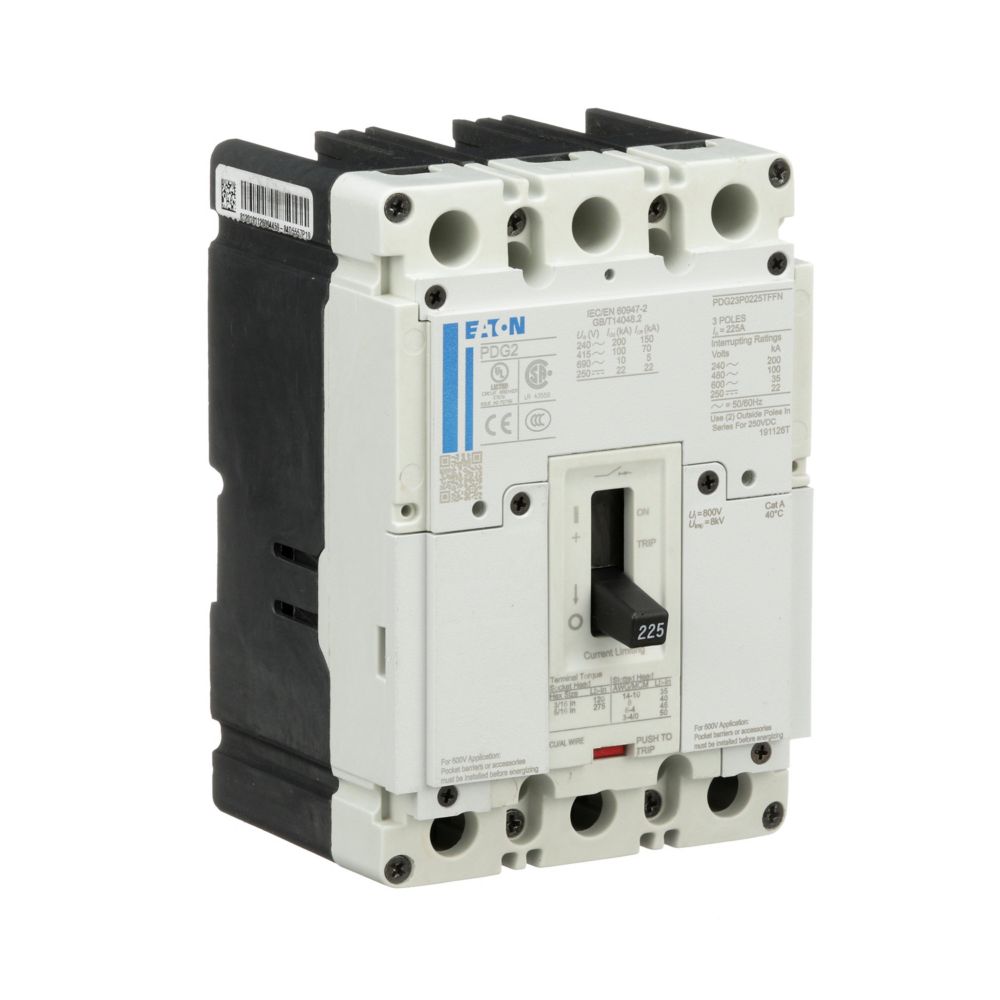

PDG23M0225TFFL | Eaton Power Defense PD2 225A 3-Pole Molded Case Circuit Breaker
- Regular price
- $488.00
- Sale price
- $488.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23M0225TFFL
Description
The Eaton PDG23M0225TFFL is a molded case circuit breaker designed to provide dependable overcurrent protection in commercial and industrial electrical distribution systems. This Eaton part number PDG23M0225TFFL features a three-pole configuration with a 225 amp rating and operates at voltages up to 600 VAC. Built within the Power Defense PD2 platform, it offers high interrupting capacity and robust protection for modern power distribution networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG23M0225TFFL |
| Subcategory | Molded Case Circuit Breaker |
| Series | Power Defense PD2 Global |
| Frame Type | Frame 2 |
| Breaker Type | Molded Case Circuit Breaker |
| Number of Poles | 3 Pole |
| Current Rating | 225 A |
| Voltage Rating | 600 VAC |
| Interrupt Rating | 65 kAIC @ 480 VAC |
| Trip Type | T298 Thermal-Magnetic Trip Unit |
| Terminals | Standard Terminals Load Only |
| Certifications | UL 489, CSA, IEC 60947-2, CCC |
| Compliance | RoHS Compliant |
| Dimensions (L×W×H) | 88.9 × 104.6 × 152.4 mm |
| Weight | 1.82 kg |
Information About PDG23M0225TFFL
The PDG23M0225TFFL is a Power Defense PD2 Global molded case circuit breaker developed by Eaton for reliable circuit protection in demanding electrical installations. It incorporates a T298 trip unit within a Frame 2 breaker design, delivering thermal-magnetic protection against overload and short-circuit faults. The breaker supports standard load-only terminals and integrates easily into switchboards, panelboards, and industrial control equipment. Certified to UL 489, CSA, IEC 60947-2, and CCC standards, it meets international safety and performance requirements for industrial power systems.
Key Features:
- 225 Amp Current Rating: Provides dependable protection for medium-capacity power distribution circuits.
- Three-Pole Configuration: Designed for balanced protection in three-phase electrical systems.
- Power Defense PD2 Platform: Advanced molded case circuit breaker technology for industrial applications.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 VAC for strong short-circuit protection.
- Thermal-Magnetic Trip Unit: T298 trip mechanism safeguards against overloads and fault currents.
- Global Certifications: Compliant with UL 489, CSA, IEC 60947-2, and CCC safety standards.
- Standard Load Terminals: Supports reliable electrical connections within distribution panels.
- RoHS Compliance: Manufactured according to environmental material restrictions.
The PDG23M0225TFFL delivers the reliability and precision required for protecting three-phase electrical distribution circuits in industrial and commercial power systems.
