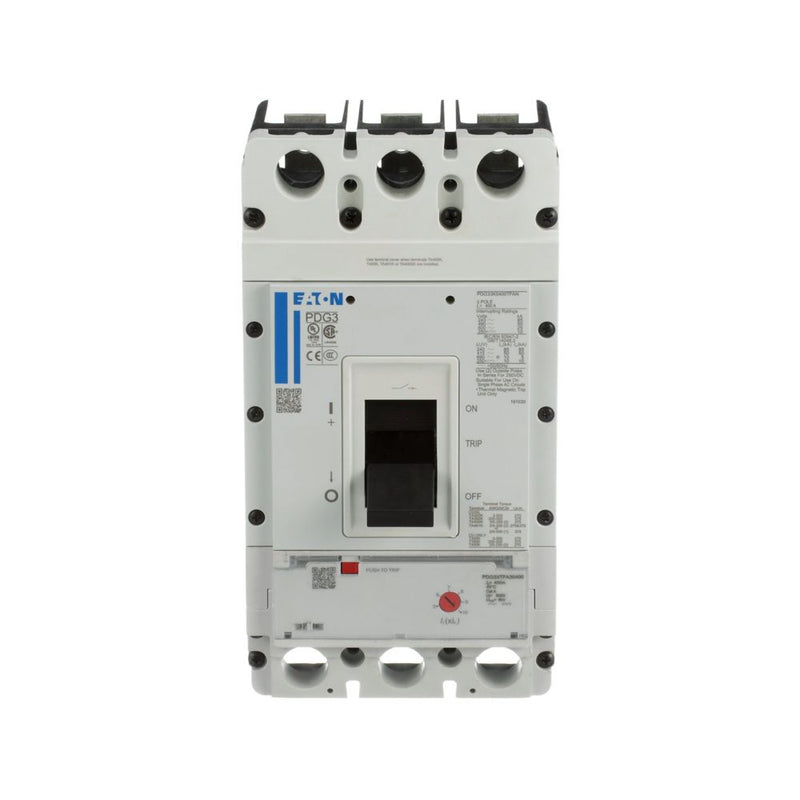

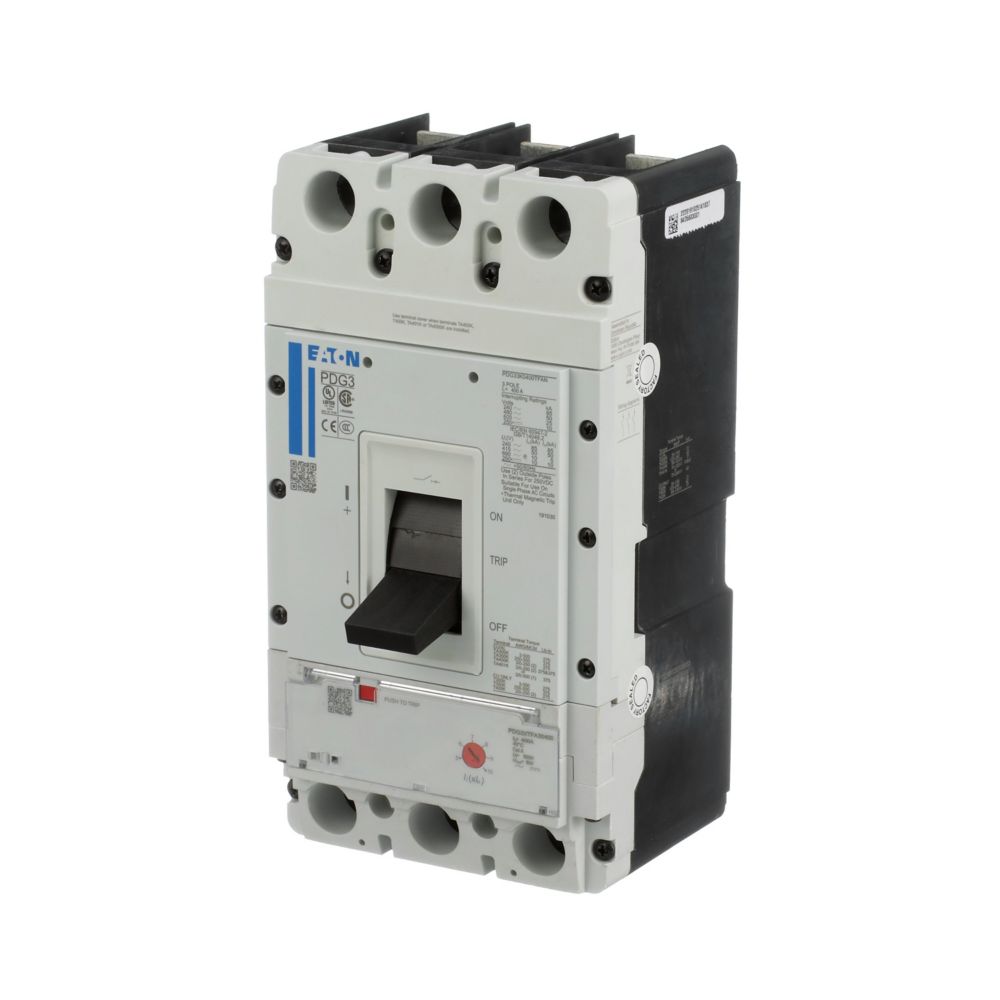

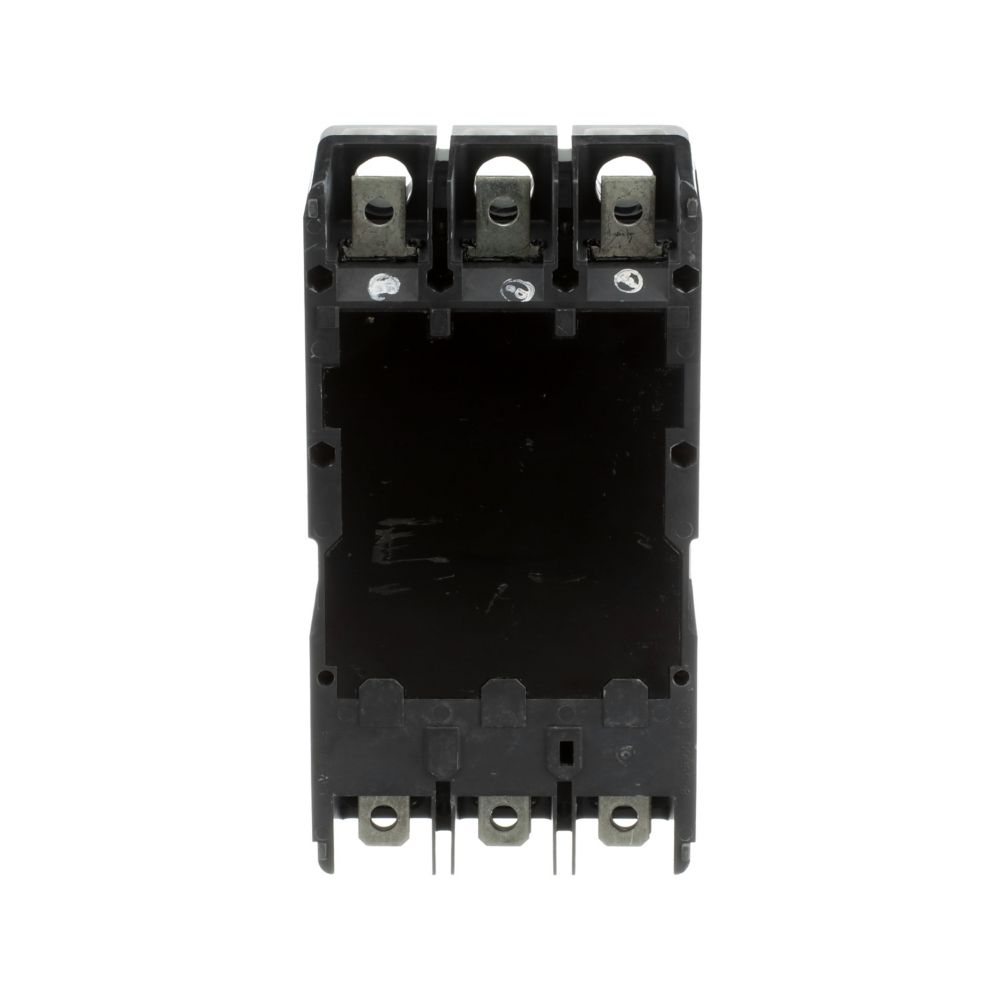

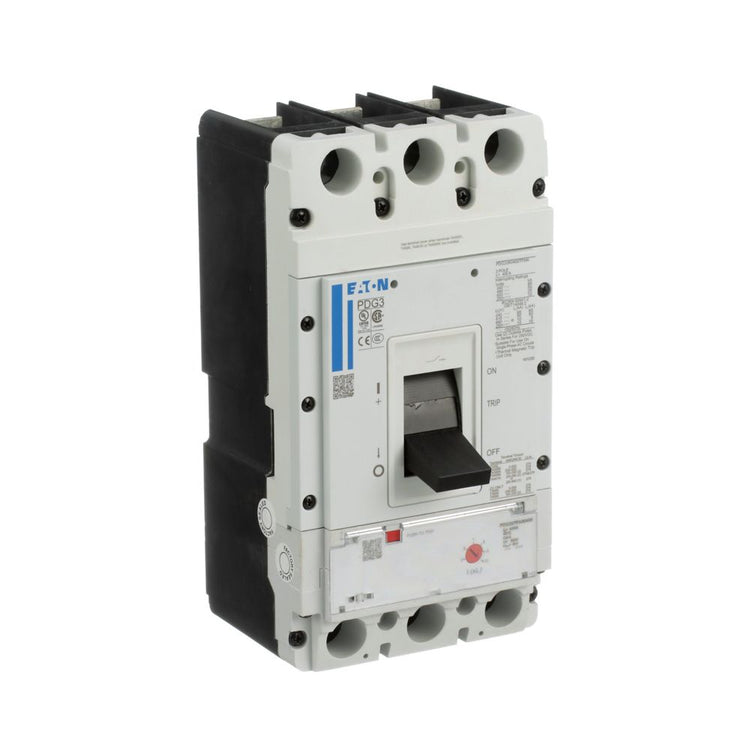

PDG33G0300TFAJ | Eaton Power Defense PD3 300A 3-Pole Molded Case Circuit Breaker
- Regular price
- $1,354.00
- Sale price
- $1,354.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG33G0300TFAJ
Description
The Eaton PDG33G0300TFAJ is a molded case circuit breaker engineered to provide dependable overcurrent and short-circuit protection in industrial and commercial electrical distribution systems. This Eaton part number PDG33G0300TFAJ features a three-pole configuration with a 300 amp rating and supports electrical systems up to 600 VAC. As part of Eaton’s Power Defense PD3 Global platform, it combines robust mechanical construction with advanced trip protection for reliable operation in demanding installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG33G0300TFAJ |
| Subcategory | Molded Case Circuit Breaker |
| Series | Power Defense PD3 Global |
| Frame Type | Frame 3 |
| Breaker Type | Molded Case Circuit Breaker |
| Number of Poles | 3 Pole |
| Current Rating | 300 A |
| Voltage Rating | 600 VAC |
| Trip Unit | T297 |
| Interrupt Rating | 35 kAIC @ 480 VAC |
| Interrupt Rating Range | Up to 65 kAIC @ 240 VAC |
| Terminal Type | Standard Line and Load |
| Certifications | UL 489, CSA, IEC 60947-2, CCC |
| Compliance | RoHS Compliant |
| Dimensions (L×W×H) | 4.29 × 5.46 × 7 in |
| Weight | 12.36 lbs |
Information About PDG33G0300TFAJ
The PDG33G0300TFAJ is a Power Defense PD3 Global molded case circuit breaker developed by Eaton for high-performance circuit protection in modern power distribution infrastructure. It uses a Frame 3 design with a T297 trip unit that delivers thermal and magnetic protection to quickly respond to overload and short-circuit conditions. The breaker includes standard line and load terminals to support secure wiring connections in switchboards, panelboards, and control equipment. Certified to UL 489, CSA, IEC 60947-2, and CCC standards and compliant with RoHS requirements, it is suitable for global industrial and commercial applications.
Key Features:
- 300 Amp Current Rating: Provides dependable overcurrent protection for medium-to-high capacity distribution circuits.
- Three-Pole Configuration: Designed for balanced protection in three-phase electrical systems.
- Power Defense PD3 Platform: Part of Eaton’s advanced global molded case circuit breaker family.
- Thermal-Magnetic Trip Unit: T297 trip technology ensures accurate overload and short-circuit protection.
- High Interrupting Capacity: Rated up to 35 kAIC at 480 VAC and 65 kAIC at 240 VAC for effective fault interruption.
- Standard Line and Load Terminals: Supports secure electrical connections within distribution panels.
- International Certifications: UL 489, CSA, IEC 60947-2, and CCC approvals for global installations.
- RoHS Compliance: Built in accordance with environmental material restriction standards.
The PDG33G0300TFAJ delivers the reliability and precision required for protecting industrial and commercial power distribution systems.
