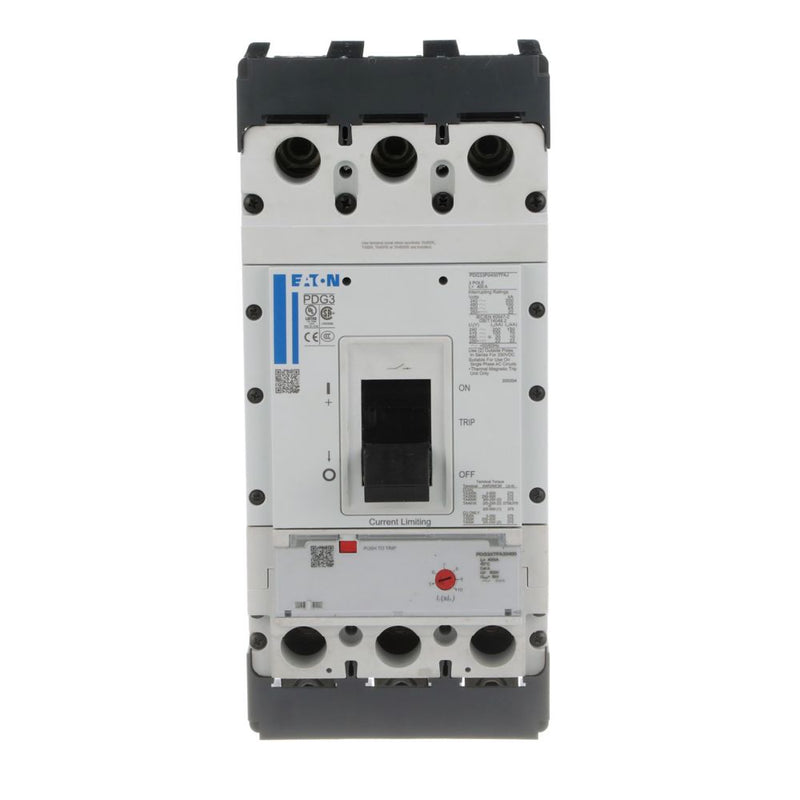

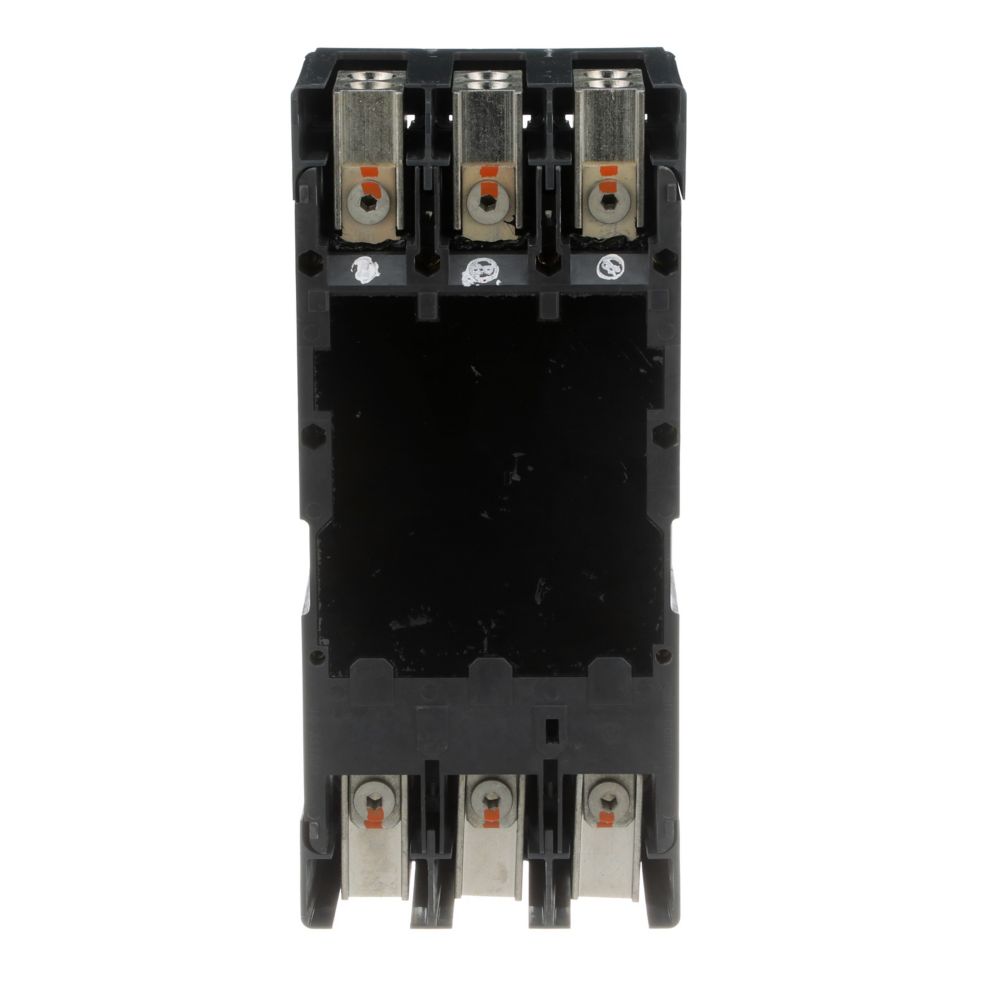

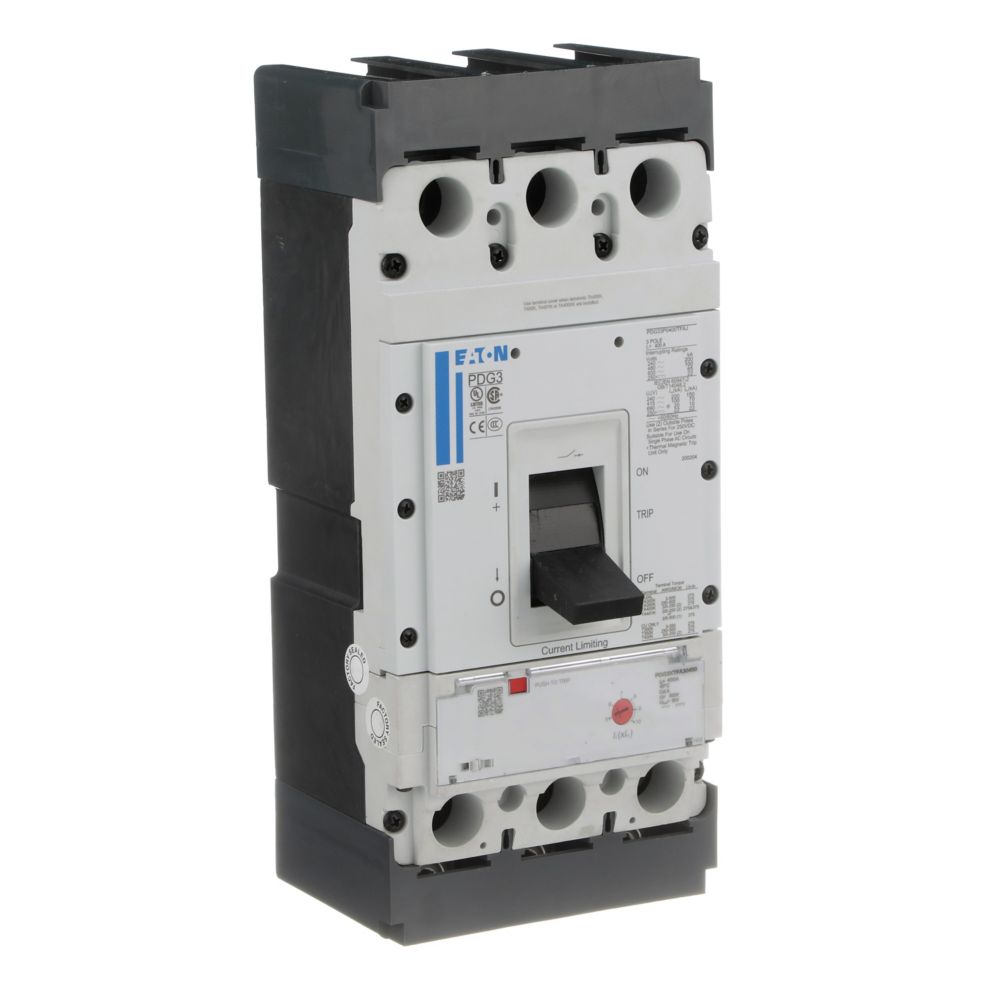

PDG33M0400TFAJ | Eaton Power Defense PD3 400A 3-Pole Molded Case Circuit Breaker
- Regular price
- $1,359.00
- Sale price
- $1,359.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG33M0400TFAJ
Description
The Eaton PDG33M0400TFAJ is a molded case circuit breaker designed to provide reliable protection against overloads and short circuits in industrial and commercial electrical distribution systems. This Eaton part number PDG33M0400TFAJ features a three-pole configuration with a 400 amp rating and supports electrical systems up to 600 VAC. As part of Eaton’s Power Defense PD3 Global platform, it offers robust fault protection and high interrupting capacity for modern power infrastructure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG33M0400TFAJ |
| Subcategory | Molded Case Circuit Breaker |
| Series | Power Defense PD3 Global |
| Frame Type | Frame 3 |
| Breaker Type | Molded Case Circuit Breaker |
| Number of Poles | 3 Pole |
| Current Rating | 400 A |
| Voltage Rating | 600 VAC |
| Trip Unit | T297 Thermal-Magnetic |
| Interrupt Rating | 65 kAIC @ 480 VAC |
| Interrupt Rating Range | 100 kAIC @ 240 VAC |
| DC Interrupt Rating | 22 kAIC @ 250 VDC |
| Terminal Type | Standard Line and Load |
| Certifications | UL 489, CSA, IEC 60947-2, CCC |
| Compliance | RoHS Compliant |
| Dimensions (L×W×H) | 17 × 8 × 7.5 in |
| Weight | 14.08 lb |
Information About PDG33M0400TFAJ
The PDG33M0400TFAJ is a Power Defense PD3 Global molded case circuit breaker engineered by Eaton for high-performance protection of power distribution networks. It uses a Frame 3 design and incorporates a T297 trip unit that provides accurate thermal and magnetic protection against overload and short-circuit faults. The breaker includes standard line and load terminals, allowing straightforward installation in switchboards, panelboards, and industrial control equipment. Certified to UL 489, CSA, IEC 60947-2, and CCC standards and compliant with RoHS environmental requirements, it is suitable for global industrial and commercial electrical applications.
Key Features:
- 400 Amp Current Rating: Provides dependable protection for high-capacity electrical distribution circuits.
- Three-Pole Configuration: Designed for balanced protection of three-phase electrical systems.
- Power Defense PD3 Platform: Advanced Eaton molded case breaker technology for industrial power protection.
- Thermal-Magnetic Trip Unit: T297 trip mechanism ensures fast response to overloads and fault currents.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 VAC and 100 kAIC at 240 VAC.
- Standard Line and Load Terminals: Supports secure wiring connections in switchgear and distribution panels.
- Global Certifications: UL 489, CSA, IEC 60947-2, and CCC approvals for worldwide installation.
- RoHS Compliant Construction: Designed to meet environmental material restrictions.
The PDG33M0400TFAJ delivers the reliability and precision required for protecting industrial power distribution systems and high-capacity electrical equipment.
