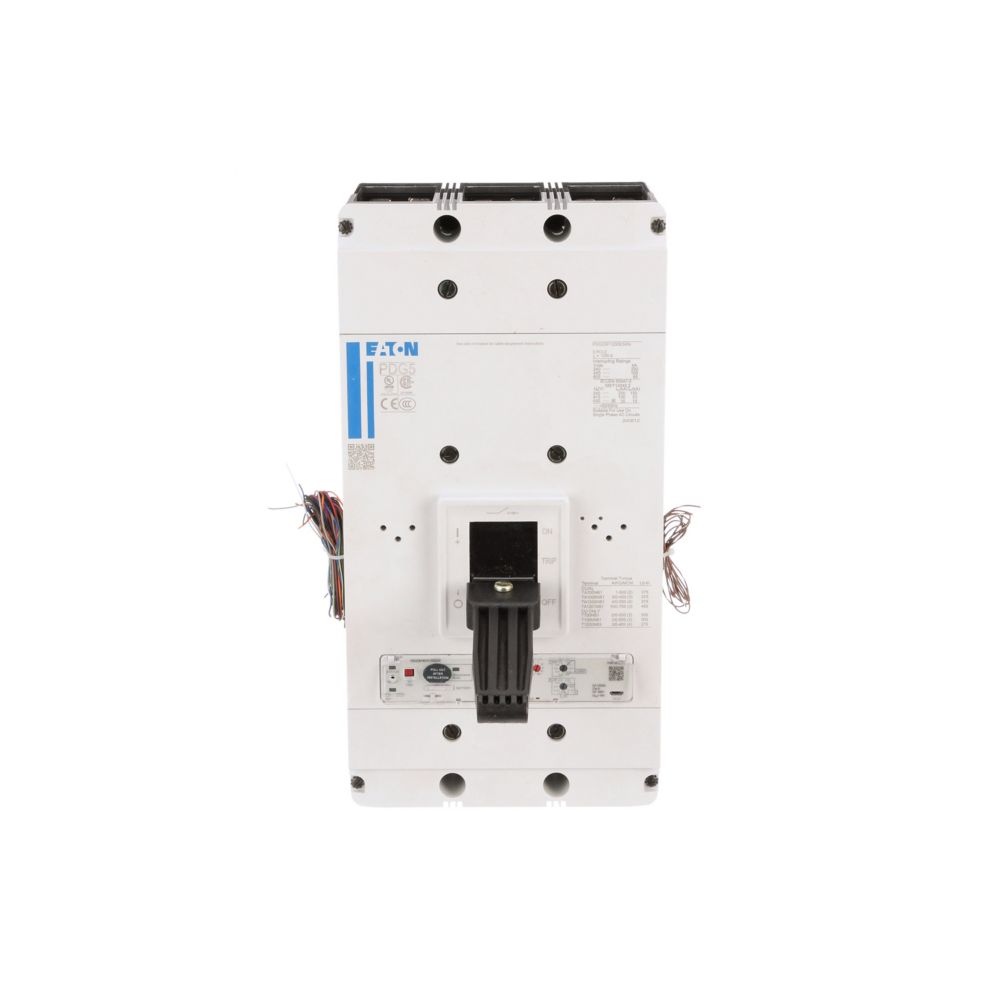

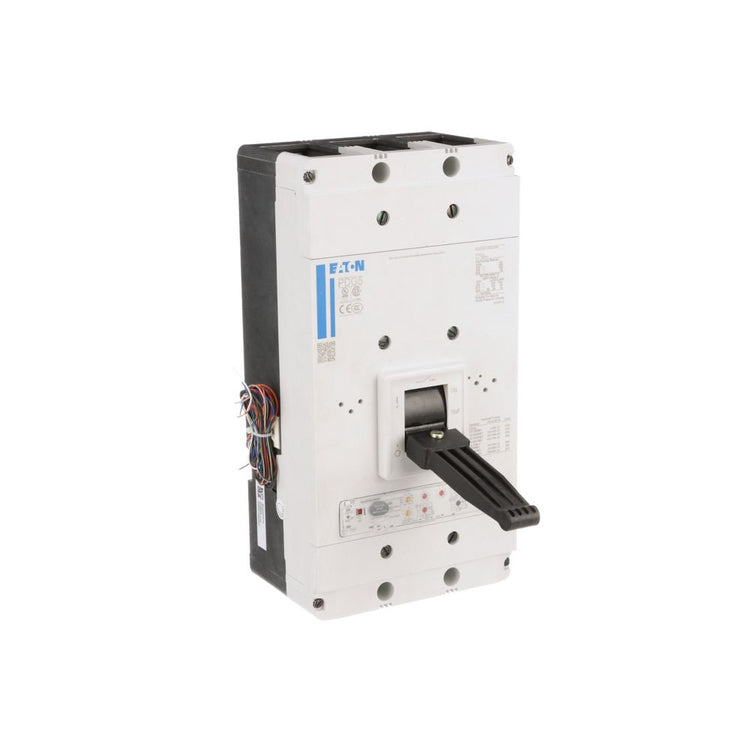

PDG53M1200E5RN | Eaton Power Defense PD5 1200A 3-Pole Molded Case Circuit Breaker
- Regular price
- $10,999.00
- Sale price
- $10,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG53M1200E5RN
Description
The Eaton PDG53M1200E5RN is a high-capacity molded case circuit breaker designed to protect large-scale electrical distribution systems from overloads and short circuits. This Eaton part number PDG53M1200E5RN provides a 1200 amp rating with a three-pole configuration and supports systems up to 600 VAC. As part of the Power Defense PD5 Global platform, it delivers advanced protection performance and high interrupting capacity for demanding industrial and commercial power applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | PDG53M1200E5RN |
| Subcategory | Molded Case Circuit Breaker |
| Series | Power Defense PD5 Global |
| Frame Type | Frame 5 |
| Breaker Type | Molded Case Circuit Breaker |
| Number of Poles | 3 Pole |
| Current Rating | 1200 A |
| Voltage Rating | 600 VAC |
| Trip Unit | T286 |
| Interrupt Rating | 65 kAIC @ 480 VAC |
| Interrupt Rating Range | Up to 100 kAIC @ 240 VAC (UL) |
| Certifications | UL 489, CSA, IEC 60947-2, CCC |
| Compliance | RoHS Compliant |
| Terminals | No Terminals |
| Dimensions (L×W×H) | 139.7 × 209.5 × 406.4 mm |
| Weight | 21.32 kg |
Information About PDG53M1200E5RN
The PDG53M1200E5RN is a Power Defense PD5 Global molded case circuit breaker engineered by Eaton for heavy-duty electrical protection in modern power distribution systems. It features a Frame 5 design equipped with a T286 trip unit that provides precise thermal and magnetic protection against overloads and short circuits. The breaker is built for integration into switchgear, panelboards, and large industrial power systems requiring high current capacity and reliable interruption performance. With certifications including UL 489, CSA, IEC 60947-2, and CCC, it meets international safety standards and is compliant with RoHS environmental regulations.
Key Features:
- 1200 Amp Current Rating: Designed for high-capacity industrial power distribution systems.
- Three-Pole Configuration: Provides balanced protection for three-phase electrical circuits.
- Power Defense PD5 Platform: Advanced molded case circuit breaker technology for modern protection systems.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 VAC for reliable short-circuit protection.
- T286 Trip Unit: Provides accurate thermal and magnetic fault detection for stable circuit protection.
- Global Safety Certifications: Compliant with UL 489, CSA, IEC 60947-2, and CCC standards.
- Frame 5 Heavy-Duty Design: Built for high-current applications in industrial switchgear and distribution panels.
- RoHS Compliant Construction: Manufactured in accordance with environmental material regulations.
The PDG53M1200E5RN delivers the reliability and precision required for protecting high-capacity industrial power distribution systems and critical electrical infrastructure.
