PDUMH20ATNET | Eaton Outlet Surge Suppressor
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: PDUMH20ATNET
Description

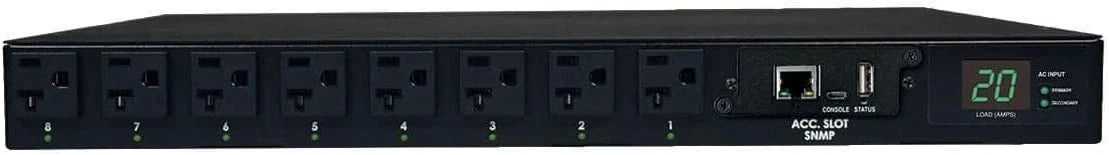

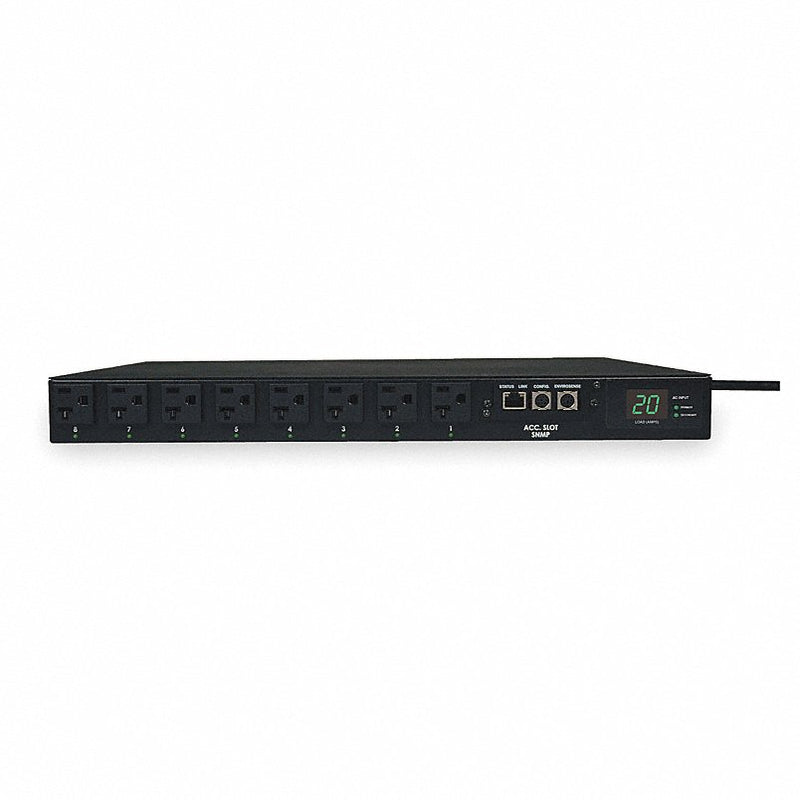

The Eaton PDUMH20ATNET is a 1U rack-mountable, switched automatic transfer switch (ATS) power distribution unit (PDU) designed to provide redundant power for single-corded network devices.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Electrical Products
|
| Part Number | PDUMH20ATNET |
| Subcategory | Power Distribution |
| PDU Type | Auto-Transfer Switch; Switched |
| Frequency Compatibility |
60 Hz |
| Output | 2400 VA |
| Output Nominal Voltage | 120V |
| Outlet Quantity/Type | 16 NEMA 5-15/20R |
| Outlet Type | NEMA 5-15R, NEMA 5-20R |
| Customized Load Management Receptacles |
16 individually controlled load management receptacles |
| Nominal Input Voltage(s) Supported |
120V AC |
| PDU Input Voltage | 100; 120; 127 |
| Maximum Input Amps |
20 A |
| PDU Plug Type |
NEMA 5-20P; NEMA L5-20P
|
| Input Cord Length Details |

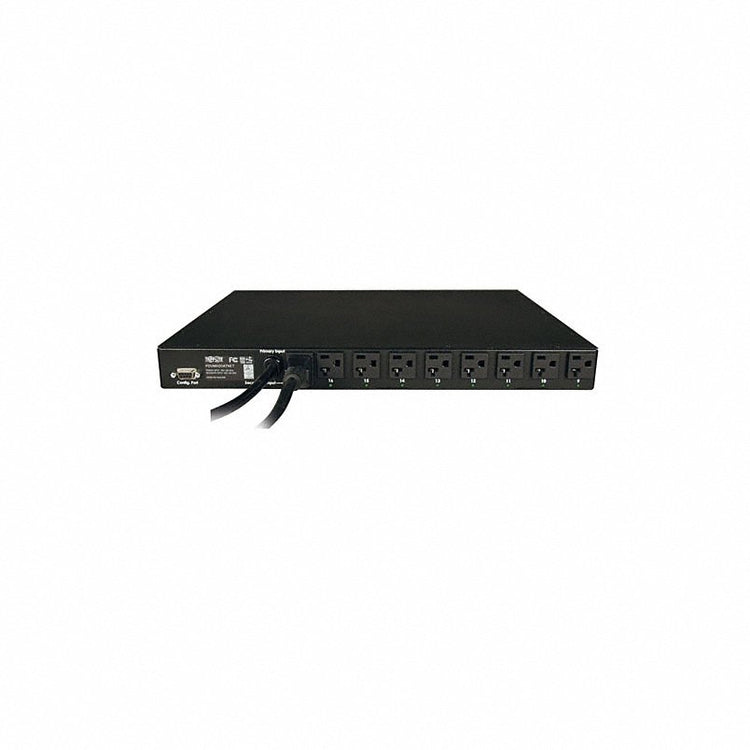

Both input cables are 12 ft / 3.6m - the cables each terminate to a L5-20P locking plug on the input side. Two included 6 inch plug adapters convert the locking plugs to NEMA 5-20P plugs
|
| Voltage Compatibility |
120 VAC
|
| Phase |
Single-Phase
|
| Front Panel LEDs |
16 front panel LEDs display power on - off status for each outlet, plus 2 LEDs for power status on each input line
cord. Digital current meter display shows the amount of power consumption in amps for entire output of PDU |
| Dimensions |
1.75 (1U) x 17.5 x 14.5 in
|
| Weight |
12.2 lbs
|
| Material |
Steel
|
| Style |
Rackmount
|
| PDU Form Factor |
Horizontal (1U, 2U, etc)
|
| Relative Humidity |
Up to 95% (non-condensing)
|
Information About PDUMH20ATNET
The Eaton PDUMH20ATNET is a 1U rack-mountable switched automatic transfer switch (ATS) power distribution unit (PDU) designed to ensure power redundancy and remote control for single-corded IT equipment in critical network and data center environments. Operating at 120V with a 20A maximum input (de-rated to 16A continuous), it supplies up to 1.92 kW of power across 16 individually switchable NEMA 5-15/20R outlets. The unit includes dual 12-foot input cords with NEMA L5-20P plugs to support seamless source transfer between primary and backup power feeds. Integrated remote management through Eaton’s LX Platform enables full outlet-level control and monitoring over SNMP, web, SSH, or telnet. With sequential outlet power-on, advanced metering, and environmental monitoring compatibility, the PDUMH20ATNET ensures efficient and reliable power management in demanding installations.
Key Features:
- Redundant Power Switching: Dual power cords with automatic source transfer ensure continuous operation for single-corded devices.
- Outlet Configuration: Includes 16 NEMA 5-15/20R outlets, each individually switchable for remote on/off control.
- Power Capacity: Supports up to 1.92 kW at 120V with a 20A max input (16A continuous).
- Input Connectivity: Features dual 12 ft NEMA L5-20P input cords for primary and secondary sources.
- Remote Management: Enables control and monitoring via HTTP/HTTPS, SNMP v1/v2/v3, SSH, telnet, SMTP, and FTP.
- Metering Interface: Built-in digital current meter provides real-time power load status.
- Environmental Monitoring: Supports optional EnviroSense2 modules for temperature, humidity, and contact closure data.
- Startup Protection: Sequential outlet power-on reduces inrush current and protects connected equipment.
- Certifications: UL listed and TAA compliant for quality, safety, and government procurement eligibility.
The PDUMH20ATNET provides intelligent, remotely managed power redundancy and control in a compact rack-mounted form, making it ideal for ensuring uptime and manageability in network closets, server rooms, and data center racks.
