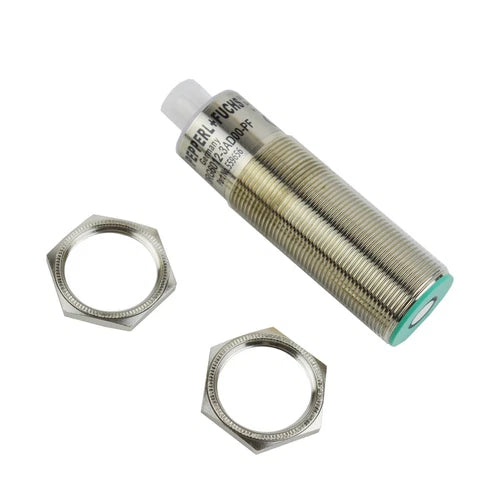

Pepperl+Fuchs 3RG6012-3AD00-PF M30 Ultrasonic Proximity Sensor
- Regular price
- $385.00
- Sale price
- $385.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RG6012-3AD00-PF
Description
The Pepperl+Fuchs 3RG6012-3AD00-PF is an ultrasonic proximity sensor designed for non-contact object detection in industrial automation systems. It features an M30 threaded housing, a 60–300 mm sensing range, and a PNP normally open switching output for reliable monitoring of object presence and position.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Transducers |
| Part Number | 3RG6012-3AD00-PF |
| Subcategory | Ultrasonic Proximity Sensors |
| Sensor Type | Ultrasonic proximity switch |
| Sensing Range | 60–300 mm |
| Focusing Range | 60 (+20 mm) to 300 (+20 mm) |
| Standard Target | 10 × 10 mm |
| Repeat Accuracy | ±0.45 mm |
| Switching Hysteresis | 10 mm |
| Nominal Ultrasonic Frequency | 400 kHz |
| Operating Voltage | 12–30 V DC |
| No-Load Supply Current | Maximum 50 mA |
| Maximum Ripple Content | 10% |
| Output Type | PNP, normally open |
| Maximum Switching Current | 300 mA |
| Maximum Output Voltage Drop | 3 V at 300 mA |
| Switching Frequency | 8 Hz |
| Response Time | 80 ms |
| Protection Rating | IP65 |
| Housing Material | Nickel-plated brass |
| Connection | M12 connector |
| Operating Temperature | −25°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Dimensions | M30 cylindrical housing; 131 mm length per RS specification |
| Weight | 0.46 lb |
Information About 3RG6012-3AD00-PF
The 3RG6012-3AD00-PF is an ultrasonic proximity switch from Pepperl+Fuchs intended for industrial sensing and control applications. It operates with a 12–30 V DC supply and uses a 400 kHz ultrasonic frequency to detect targets within its specified sensing range. The sensor provides a PNP normally open output rated for switching currents up to 300 mA, with integrated short-circuit and overload protection. Its nickel-plated brass housing, M12 connector, and IP65 protection support installation in industrial environments.
-
Ultrasonic Detection: Detects objects without requiring physical contact.
-
Sensing Range: Supports detection from 60 to 300 mm.
-
Switching Output: Uses a PNP normally open output.
-
Operating Voltage: Accepts a 12–30 V DC supply.
-
Ultrasonic Frequency: Operates at a nominal frequency of 400 kHz.
-
Switching Capacity: Supports output currents up to 300 mA.
-
Industrial Housing: Features an M30 cylindrical body made from nickel-plated brass.
-
Environmental Protection: IP65-rated housing helps protect against dust and water jets.
The 3RG6012-3AD00-PF delivers the reliability and precision required for object detection, conveyor monitoring, and industrial process automation.
