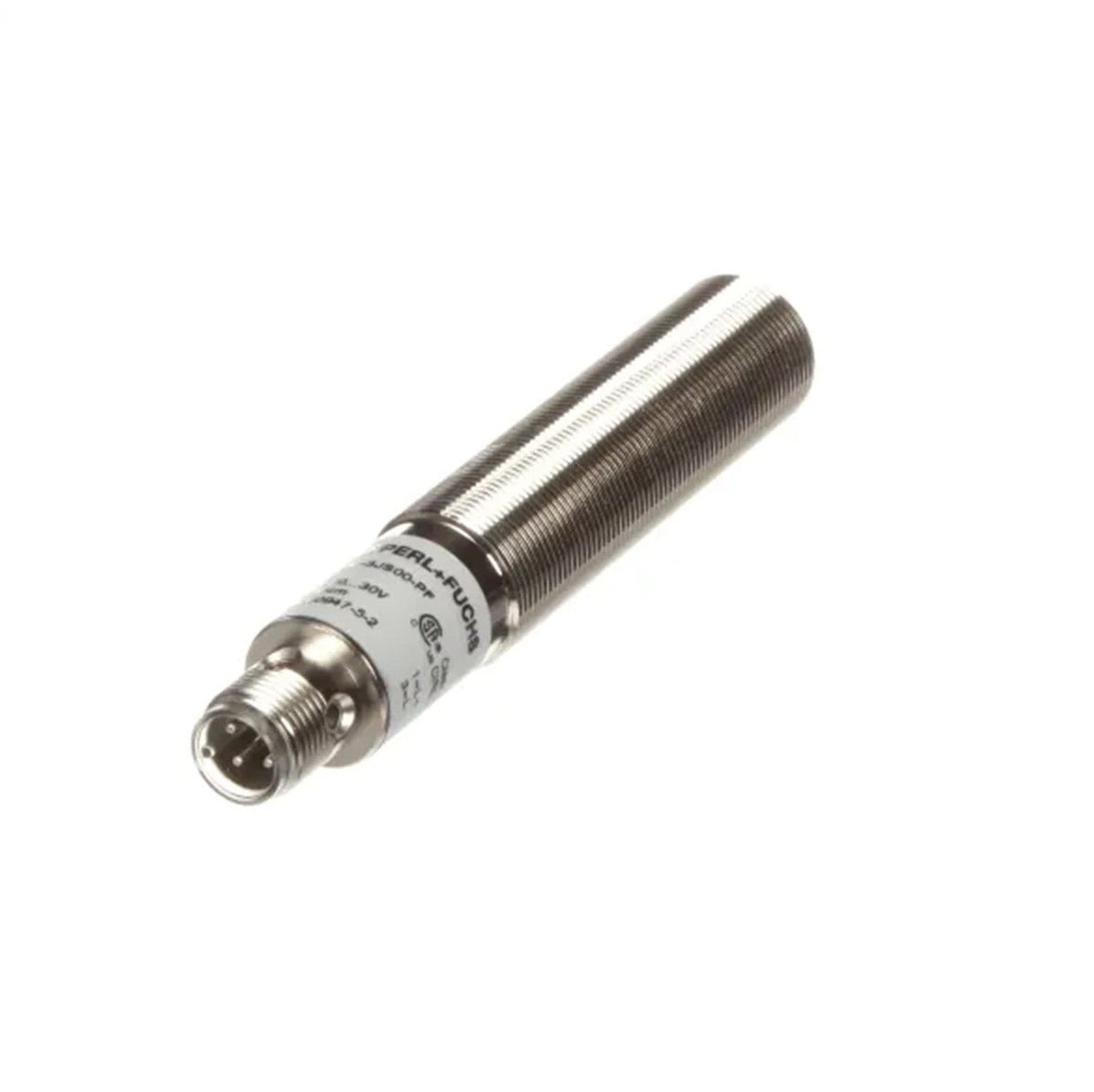

Pepperl+Fuchs 3RG6233-3JS00-PF Ultrasonic Sensor 1 m
- Regular price
- $822.00
- Sale price
- $822.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RG6233-3JS00-PF
Description
The Pepperl+Fuchs 3RG6233-3JS00-PF is an M18 ultrasonic sensor designed for non-contact distance measurement and object detection in industrial automation systems. It provides a 150–1000 mm sensing range, an analog voltage output, and an IP67-rated enclosure for use in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | 3RG6233-3JS00-PF |
| Subcategory | Ultrasonic Sensors |
| Sensor Type | Ultrasonic proximity sensor |
| Sensing Range | 150–1000 mm |
| Output Type | Analog voltage |
| Output Signal | 0–10 V DC |
| Supply Voltage | 12–30 V DC |
| Housing Style | Threaded cylindrical |
| Housing Diameter | M18 |
| Electrical Connection | M12, 4-pin connector |
| Housing Material | Nickel-plated brass |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +70 °C (−13 to +158 °F) |
| Weight | 0.13 lb |
Information About 3RG6233-3JS00-PF
The 3RG6233-3JS00-PF is an ultrasonic proximity sensor manufactured by Pepperl+Fuchs. It uses sound waves to detect objects and measure distance without physical contact. The sensor operates from a 12–30 V DC supply and provides a 0–10 V analog output. Its threaded M18 cylindrical housing and M12 connector support integration into compatible industrial control systems.
-
Sensor Technology: Ultrasonic sensing for non-contact object detection.
-
Sensing Range: 150–1000 mm.
-
Analog Output: 0–10 V DC distance signal.
-
Operating Voltage: 12–30 V DC.
-
Housing Design: Threaded M18 cylindrical body.
-
Electrical Connection: M12, 4-pin connector.
-
Environmental Protection: IP67-rated enclosure.
-
Housing Material: Nickel-plated brass.
The 3RG6233-3JS00-PF delivers the reliability and precision required for industrial distance measurement, object positioning, and automated monitoring applications.
