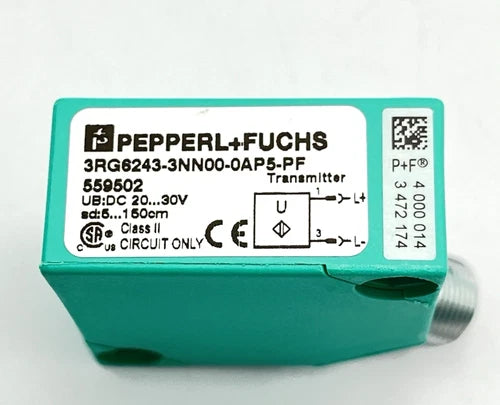

Pepperl+Fuchs 3RG6243-3NN00-0AP5-PF Ultrasonic Sensor Transmitter
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3RG6243-3NN00-0AP5-PF
Description
The Pepperl+Fuchs 3RG6243-3NN00-0AP5-PF is an ultrasonic through-beam sensor transmitter designed for non-contact object detection in industrial automation applications. It operates from a 24 V DC nominal supply and belongs to the 3RG6243 ultrasonic sensor family. The unit is intended to work with a compatible receiver to detect objects across a sensing path.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Switches |
| Part Number | 3RG6243-3NN00-0AP5-PF |
| Subcategory | Ultrasonic Sensors |
| Manufacturer Reference | 559502 |
| Product Type | Ultrasonic Through-Beam Sensor Transmitter |
| Sensing Range | Up to 1.5 m |
| Operating Frequency | 200 kHz |
| Nominal Supply Voltage | 24 V DC |
| Operating Voltage Range | 20–30 V DC |
| Sensor Arrangement | Through-beam; compatible receiver required |
| Connection | Verify exact connector configuration |
| Response Time | 2.5 ms (supplier-listed) |
| Dimensions | 18 mm diameter × 66 mm length |
| Weight | 0.12 lb |
Information About 3RG6243-3NN00-0AP5-PF
The 3RG6243-3NN00-0AP5-PF is identified by supplier listings as an ultrasonic sensor with a maximum sensing range of 1.5 m. It uses a 200 kHz ultrasonic frequency and is designed for a 20–30 V DC operating supply. The related 3RG6243 series uses a transmitter-and-receiver arrangement, with M12 connections available on compatible versions. This specific part is reported as discontinued, so confirm the exact suffix and compatible receiver before selecting it for a replacement installation.
Key Features:
-
Ultrasonic Detection: Uses ultrasonic technology for non-contact object detection.
-
Through-Beam Configuration: Designed to operate with a compatible ultrasonic receiver.
-
1.5 m Sensing Range: Listed maximum sensing distance of 150 cm.
-
200 kHz Operating Frequency: Uses ultrasonic sound waves for detection.
-
24 V DC Nominal Supply: Designed for industrial low-voltage power systems.
-
Wide Supply Range: Supports 20–30 V DC operation.
-
M12 Connection: Compatible series versions use M12 connectors; verify the exact connector configuration.
-
Legacy Replacement Component: Suitable for replacement applications where the complete part number matches.
The 3RG6243-3NN00-0AP5-PF provides ultrasonic through-beam detection for compatible industrial sensing systems.
