Pepperl+Fuchs 50FY41-12 Hall-Effect Magnetic Field Sensor
- Regular price
- $515.00
- Sale price
- $515.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50FY41-12
Description

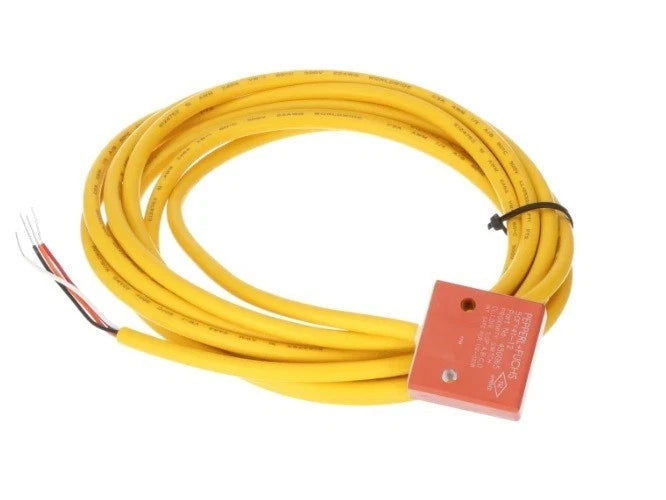

The Pepperl+Fuchs 50FY41-12 is a Hall-effect magnetic field sensor designed for non-contact detection in compatible industrial safety interlocking systems. It features a 4 m (approximately 12 ft) cable, a four-wire DC connection, and a compact housing for installation in machine guard monitoring applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | 50FY41-12 |
| Subcategory | Magnetic Field Sensors |
| Sensor Technology | Hall effect |
| Switching Function | Normally open (NO) |
| Output Type | PNP/NPN |
| Output Configuration | 4-wire DC |
| Operating Voltage | 10–12 V DC |
| Rated Sensing Distance | 2.5 mm at 0 mm offset |
| Sensing Distance at 4.4 mm Offset | 1.3 mm |
| Sensing Distance at 7.5 mm Offset | 0 mm |
| Cable Length | 4 m (approximately 12 ft) |
| Cable Material | PVC |
| Conductor Cross-Section | 0.34 mm² |
| Housing Material | Polysulfone |
| Protection Rating | IP67 |
| Operating Temperature | −40 to +85 °C |
| Compatible Actuator | 52FY31 |
| Weight | 0.55 lb |
Information About 50FY41-12
The 50FY41-12 is a Pepperl+Fuchs magnetic field sensor with a normally open switching function. It operates on a 10–12 V DC supply and uses PNP/NPN output circuitry. Its rated sensing distance is up to 2.5 mm under the specified alignment conditions. The sensor is designed for use with approved actuators and compatible safety monitoring equipment, rather than as a standalone safety system.
-
Sensor Technology: Hall-effect magnetic field detection.
-
Switching Function: Normally open (NO).
-
Output Type: PNP/NPN, four-wire DC.
-
Operating Voltage: 10–12 V DC.
-
Sensing Distance: Up to 2.5 mm, depending on alignment.
-
Cable Length: 4 m (approximately 12 ft).
-
Environmental Protection: IP67-rated housing.
-
Operating Temperature: −40 to +85 °C (−40 to +185 °F).
The 50FY41-12 delivers the reliability and precision required for magnetic detection in compatible machine-guard and industrial interlocking applications.
