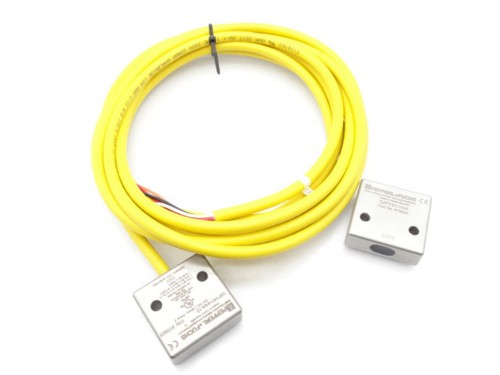

Pepperl+Fuchs 50FY41-V4A-12-KIT Hall Effect Sensor Kit
- Regular price
- $677.00
- Sale price
- $677.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50FY41-V4A-12-KIT
Description
The Pepperl+Fuchs 50FY41-V4A-12-KIT is a Hall-effect magnetic field sensor kit that includes a sensor and a compatible magnet for non-contact detection in industrial safety interlocking applications. It features a 2.5 mm nominal sensing distance, a four-wire DC PNP/NPN output, and a stainless-steel housing designed for demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | 50FY41-V4A-12-KIT |
| Subcategory | Magnetic Field Sensor Kits |
| Sensor Technology | Hall effect |
| Kit Contents | Magnetic field sensor and magnet |
| Switching Function | Normally open (NO) |
| Output Type | PNP/NPN |
| Output Configuration | 4-wire DC |
| Operating Voltage | 10–12 V DC |
| Rated Operating Distance | 2.5 mm at 0 mm offset |
| Operating Distance at 3.5 mm Offset | 1.3 mm |
| Housing Material | 316 stainless steel |
| Sensing Face Material | 316 stainless steel |
| Cable Length | 3.5 m (11.5 ft) |
| Cable Material | PVC |
| Conductor Cross-Section | 0.34 mm² |
| Protection Rating | IP69K |
| Operating Temperature | −40 to +100 °C (−40 to +212 °F) |
| Dimensions | 39 × 39 × 12.7 mm |
| Compatible Actuator | 52FY31-V4A |
| Weight | 0.85 lb |
Information About 50FY41-V4A-12-KIT
The 50FY41-V4A-12-KIT is a magnetic field sensor kit from Pepperl+Fuchs. It uses Hall-effect technology to detect a compatible magnetic actuator without mechanical contact. The sensor operates on a 10–12 V DC supply and provides a normally open switching function with PNP/NPN output. Its IP69K protection rating and 316 stainless-steel housing make it suitable for applications requiring high resistance to water and environmental exposure.
-
Sensor Technology: Hall-effect magnetic field detection.
-
Kit Contents: Magnetic field sensor and compatible magnet.
-
Sensing Distance: 2.5 mm at zero offset.
-
Output Configuration: Four-wire DC PNP/NPN.
-
Switching Function: Normally open (NO).
-
Supply Voltage: 10–12 V DC.
-
Housing Material: 316 stainless steel.
-
Environmental Protection: IP69K-rated enclosure.
The 50FY41-V4A-12-KIT delivers the reliability and precision required for magnetic detection and interlocking applications in compatible industrial equipment.
