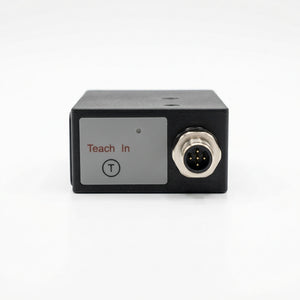

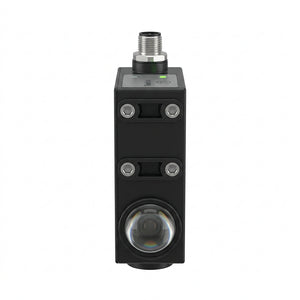

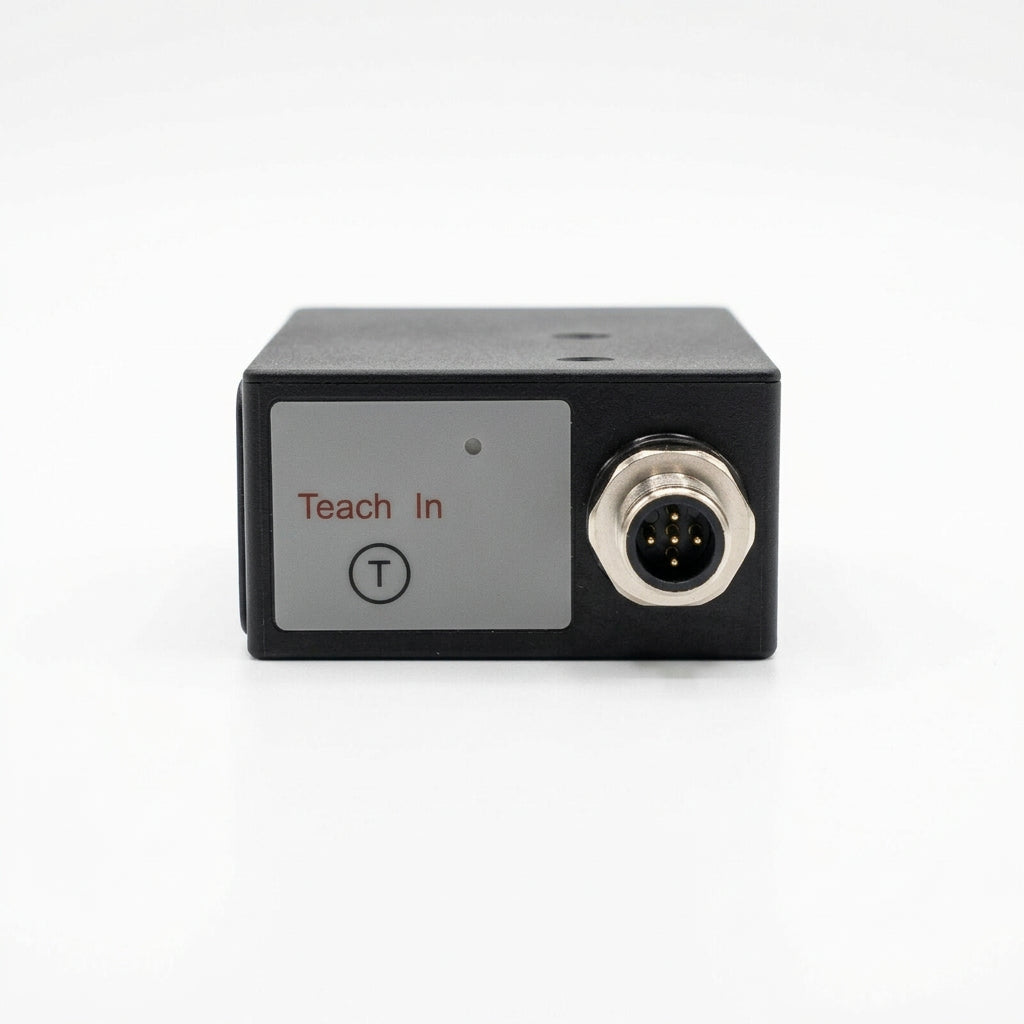

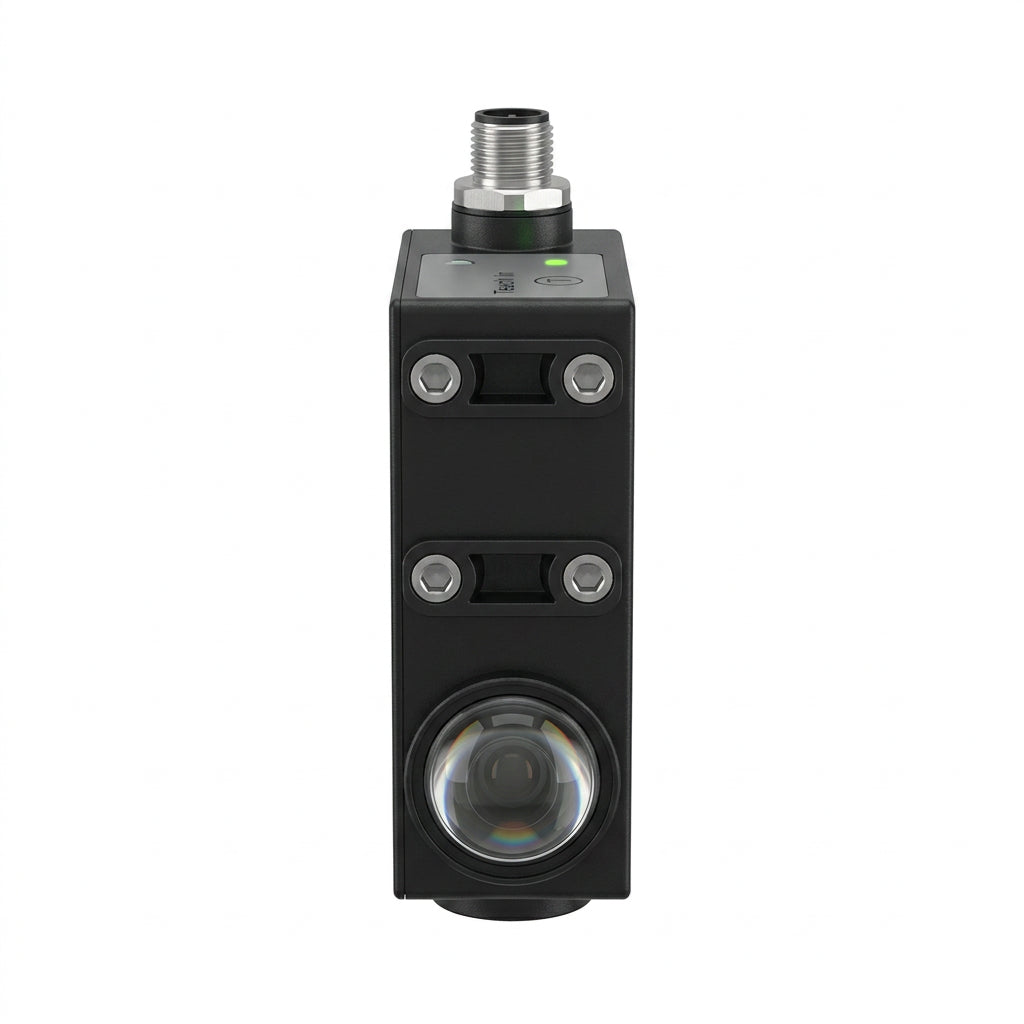

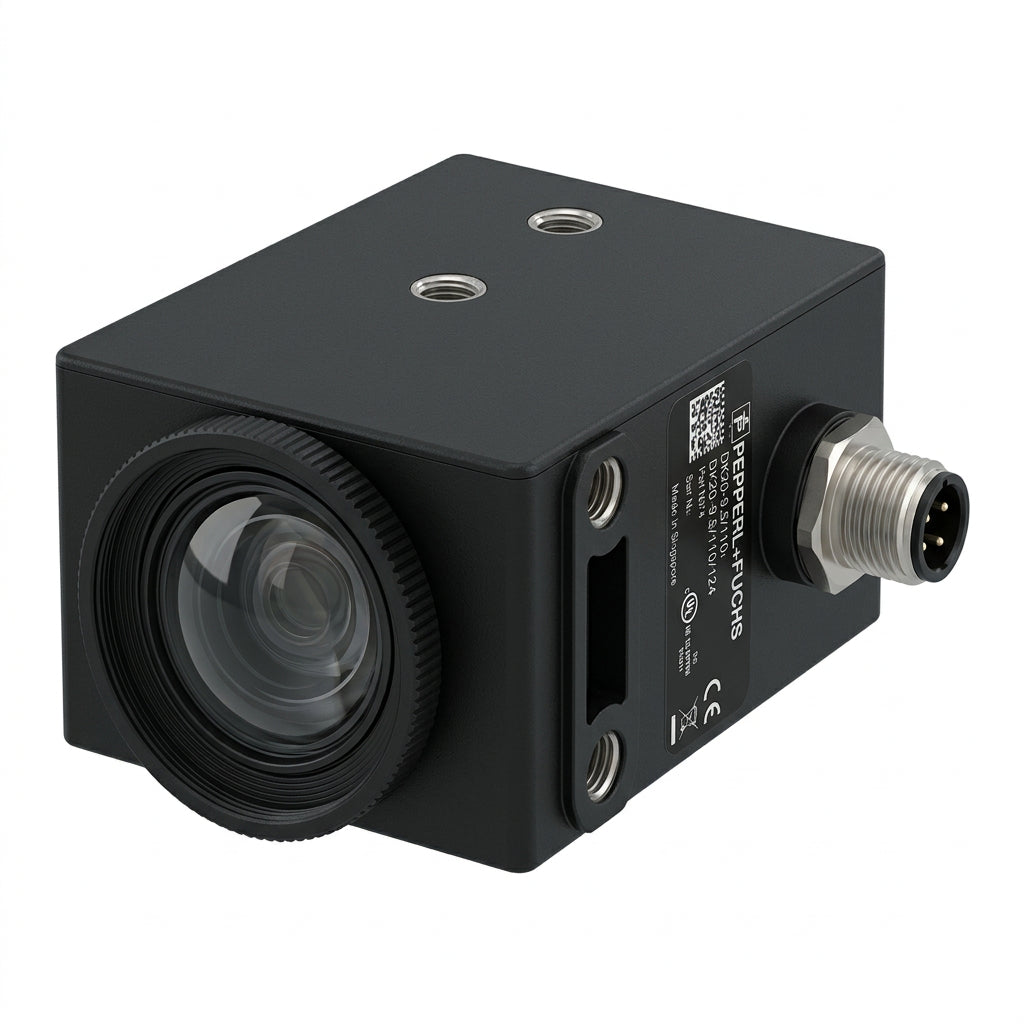

Pepperl+Fuchs DK20-9.5/110/124 Print Mark Contrast Sensor
- Regular price
- $545.00
- Sale price
- $545.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DK20-9.5/110/124
Description
The Pepperl+Fuchs DK20-9.5/110/124 is a diffuse-mode contrast sensor for detecting printed marks against their backgrounds. Its RGB LED illumination and 30 µs response time support registration sensing on packaging, labeling, and printing machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Switches |
| Part Number | DK20-9.5/110/124 |
| Subcategory | Photoelectric Contrast Sensors |
| Sensing Mode | Diffuse reflective contrast detection |
| Sensing Distance | 9.5 mm ±3 mm |
| Light Source | Modulated RGB LEDs |
| Standard Light Spot | 1 × 4 mm |
| Supply Voltage | 10–30 V DC |
| No-Load Supply Current | ≤70 mA |
| Output Type | Push-pull; light-on/dark-on determined by teach-in sequence |
| Maximum Switching Current | 200 mA |
| Switching Frequency / Response Time | 16.5 kHz / 30 µs |
| Sensitivity Adjustment | Static teach-in; local key and external input |
| Connection | Five-pin M12 × 1 connector |
| Housing / Protection | Glass-fiber-reinforced polycarbonate, glass optical face / IP67 |
| Operating Temperature / Dimensions | −20 to +60°C / 85.6 × 33 × 60.8 mm (H × W × D) |
| Weight | 200 g (0.44 lb) |
Information About DK20-9.5/110/124

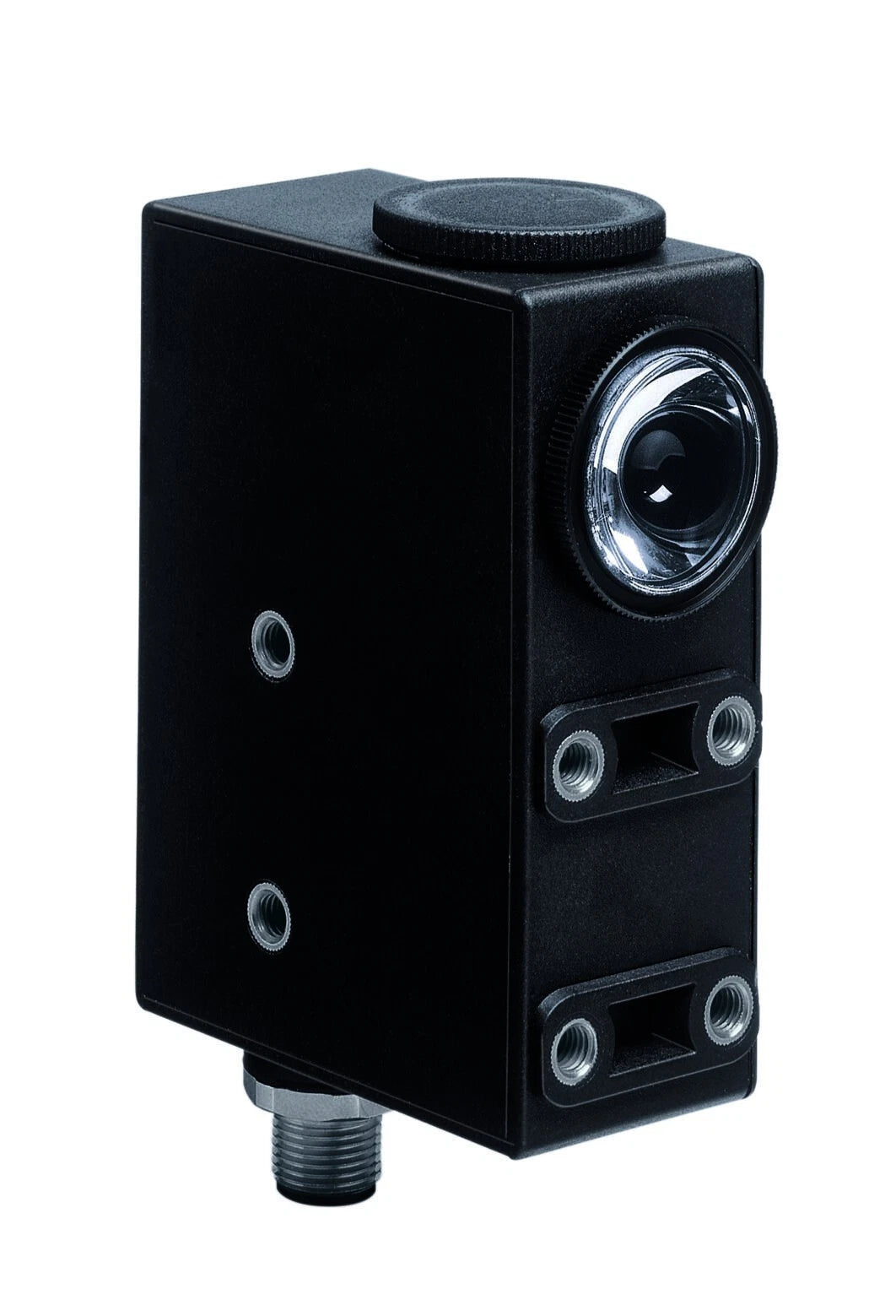

The DK20-9.5/110/124 is part of the DK20 series and corresponds to order number 418074. Its reinforced polycarbonate housing incorporates a glass optical face. The lens and cover can exchange positions to change the sensing direction by 90°. Local and external teach-in functions establish the switching threshold.
Key Features:
- Print Mark Detection: Detects contrast differences between a printed mark and its background.
- RGB LED Illumination: Uses visible red, green, and blue emitters for contrast evaluation.
- Sensing Distance: Provides a specified working distance of 9.5 mm ±3 mm.
- Defined Light Spot: Produces a standard sensing spot measuring 1 × 4 mm.
- Static Teach-In: Sets the switching threshold through mark and background acquisition.
- External Teach Input: Allows setup through the connected machine control system.
- Push-Pull Output: Provides a protected switching output with light-on/dark-on operation.
- Fast Response: Supports a 30 µs response time and 16.5 kHz switching frequency.
The DK20-9.5/110/124 delivers the reliability and precision required for print-mark detection in compatible packaging, labeling, and industrial automation equipment.
