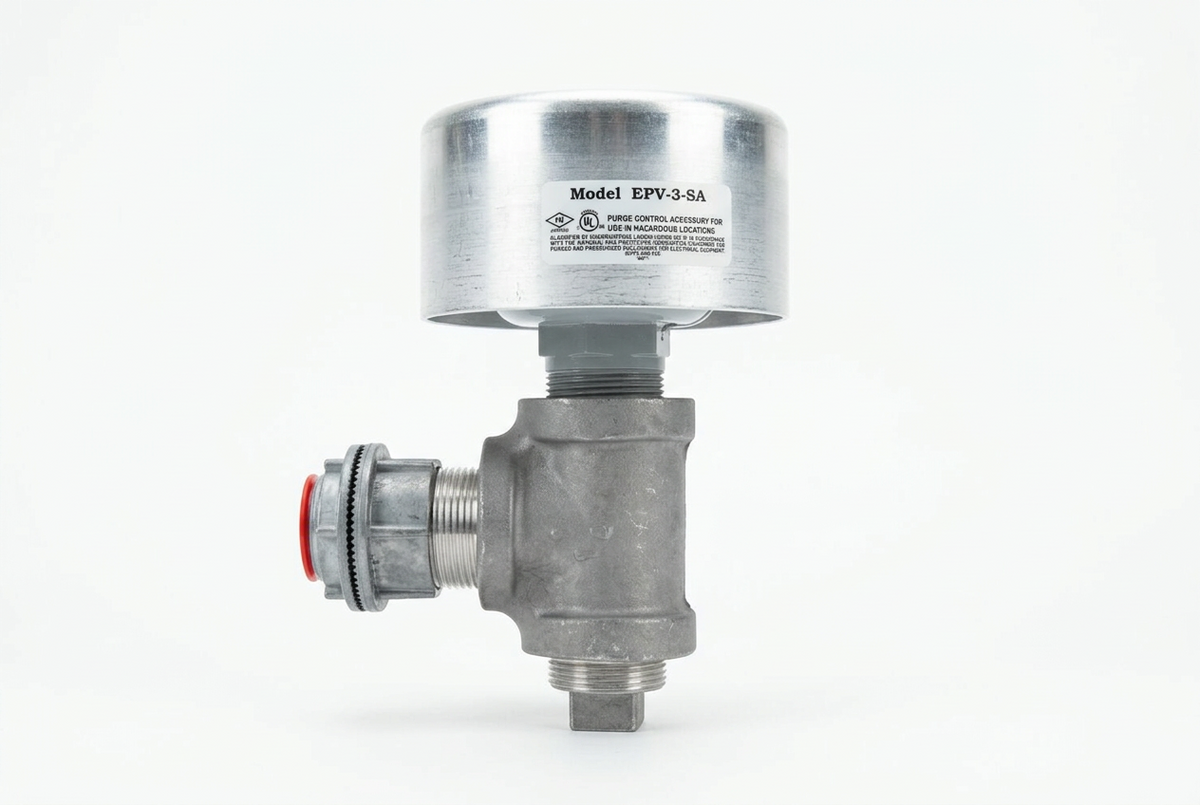

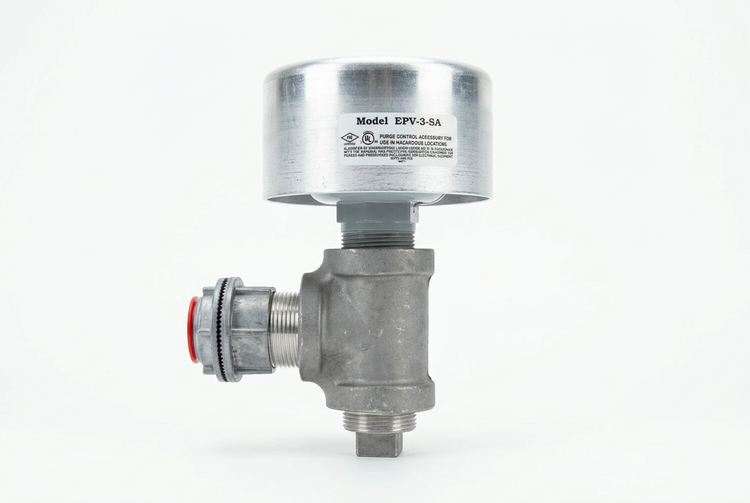

Pepperl+Fuchs EPV-3-SA-90 Enclosure Protection Vent
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EPV-3-SA-90
Description
The Pepperl+Fuchs EPV-3-SA-90 is an enclosure protection vent designed to release excess pressure from protected industrial enclosures used with compatible purge and pressurization systems. It features a 90-degree side-mount configuration, a spark-arresting exhaust element, and a pressure-operated valve assembly. Its design helps manage enclosure pressure while supporting the requirements of suitable hazardous-area protection installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | EPV-3-SA-90 |
| Subcategory | Enclosure Protection Vents |
| Manufacturer Part Number | 513152 |
| Product Series | EPV |
| Product Type | Enclosure Protection / Pressure Relief Vent |
| Mounting Configuration | Side mount, 90° |
| Nominal Vent Size | 1 1/4 in (size code 3) |
| Exhaust Element | Spark arrestor, 316 stainless steel |
| Normal Operating Pressure | 2–5 in. water column |
| Maximum Operating Pressure | 5–7 in. water column under specified system conditions |
| Opening Pressure | Approximately 0.65 in. water column |
| Ambient Temperature | −20 to +120 °F (approximately −29 to +49 °C) |
| Body Material | Aluminum with stainless-steel valve components |
| Compatible System | Pepperl+Fuchs Bebco EPS purge and pressurization systems |
| Weight | 5.00 lb |
Information About EPV-3-SA-90
The EPV-3-SA-90 belongs to the Pepperl+Fuchs EPV series of enclosure protection vents. The model designation specifies a size-3 vent, a spark-arresting element, and a side-mount configuration. Its valve opens when enclosure pressure exceeds approximately 0.65 inches of water column, allowing excess pressure to escape. The vent is intended for use with compatible Pepperl+Fuchs Bebco EPS purge and pressurization systems and must be installed vertically according to the manufacturer's instructions.
Key Features:
-
Enclosure Pressure Relief: Releases excess pressure from compatible protected enclosures.
-
Side-Mount Configuration: The “90” designation indicates side mounting.
-
Spark-Arresting Exhaust: Incorporates a stainless-steel spark-arresting element.
-
Pressure-Operated Valve: Opens at approximately 0.65 inches of water column.
-
Aluminum Construction: Uses aluminum body components and pipe fittings.
-
Stainless-Steel Hardware: Includes stainless-steel components in the exhaust and valve assembly.
-
Industrial Purge-System Compatibility: Designed for compatible Pepperl+Fuchs Bebco EPS systems.
-
Hazardous-Area Applications: Supports enclosure protection systems used in appropriately designed hazardous-area installations.
The EPV-3-SA-90 delivers the pressure-relief and spark-arresting functions required for compatible industrial enclosure purge and pressurization systems.
