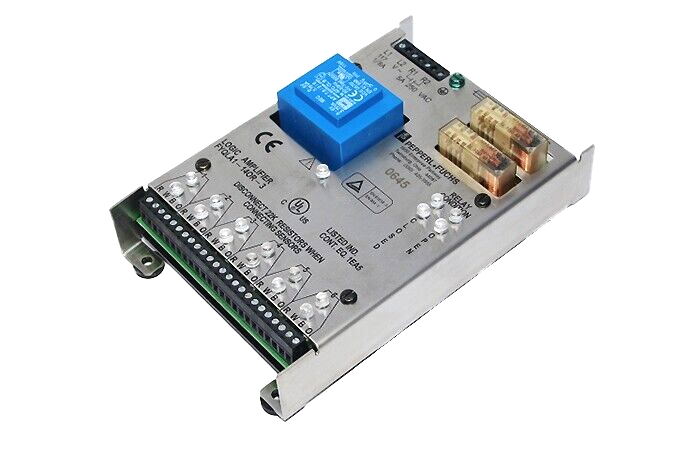

Pepperl+Fuchs FYQLA1-140R-3 Six-Channel Logic Amplifier with Relay Output
- Regular price
- $4,295.00
- Sale price
- $4,295.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FYQLA1-140R-3
Description
The Pepperl+Fuchs FYQLA1-140R-3 is a six-channel logic amplifier designed to interface with compatible 50FY series magnetic proximity sensors in industrial control and HVAC applications. Operating from a 120 V AC supply, it provides a normally open SPST relay output for switching external circuits based on sensor signals.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Control Components |
|
Part Number |
FYQLA1-140R-3 |
|
Subcategory |
Logic Amplifiers |
|
Maximum Sensor Connections |
6 compatible sensors |
|
Output Type |
SPST relay |
|
Switching Function |
Normally open |
|
Operating Voltage |
120 V AC ±15% |
|
Supply Frequency |
45–65 Hz |
|
Relay Contact Rating |
250 V AC, 5 A |
|
Electrical Contact Life |
Minimum 100,000 cycles at specified rating |
|
Response Time |
Less than 20 ms for specified switching condition |
|
Startup Delay |
3 seconds |
|
Ambient Temperature |
−40°C to +70°C |
|
Ambient Temperature at Maximum Load |
−20°C to +50°C |
|
Installation Requirement |
Sealed NEMA enclosure |
|
UL File Number |
E179102 |
|
Dimensions (H × W × D) |
3.30 × 7.70 × 10.45 in |
|
Weight |
2.585 lb |
Information About FYQLA1-140R-3
The FYQLA1-140R-3 is part of the Pepperl+Fuchs 50FY sensor system and is designed to process inputs from up to six compatible sensors through a shared logic amplifier. Its relay-based output provides an electromechanical switching interface with a contact rating of up to 250 V AC at 5 A, specified for a minimum of 100,000 electrical cycles. The amplifier operates at 120 V AC ±15% over a frequency range of 45–65 Hz and has a startup delay of approximately three seconds before becoming available. Installation requires a sealed NEMA enclosure, and the unit supports operation from −40°C to +70°C under specified load conditions.
Key Features:
-
Six-channel sensor interface: Accepts inputs from up to six compatible Pepperl+Fuchs 50FY series sensors.
-
Logic amplification: Processes sensor signals for use in industrial switching and control applications.
-
SPST normally open relay: Provides a single-pole, single-throw relay output with normally open contacts.
-
AC power supply: Operates at 120 V AC ±15%, with a supported frequency range of 45–65 Hz.
-
Relay contact rating: Supports switching up to 250 V AC at 5 A, with a specified minimum electrical life of 100,000 cycles.
-
Fast response: Provides a response time of less than 20 ms for the specified switching condition.
-
Startup delay: Requires approximately three seconds before the output becomes available.
-
Industrial temperature range: Supports ambient temperatures from −40°C to +70°C, with a reduced range at maximum load.
The FYQLA1-140R-3 delivers the reliability and precision required for multi-sensor logic processing and relay-based switching in industrial control systems.
