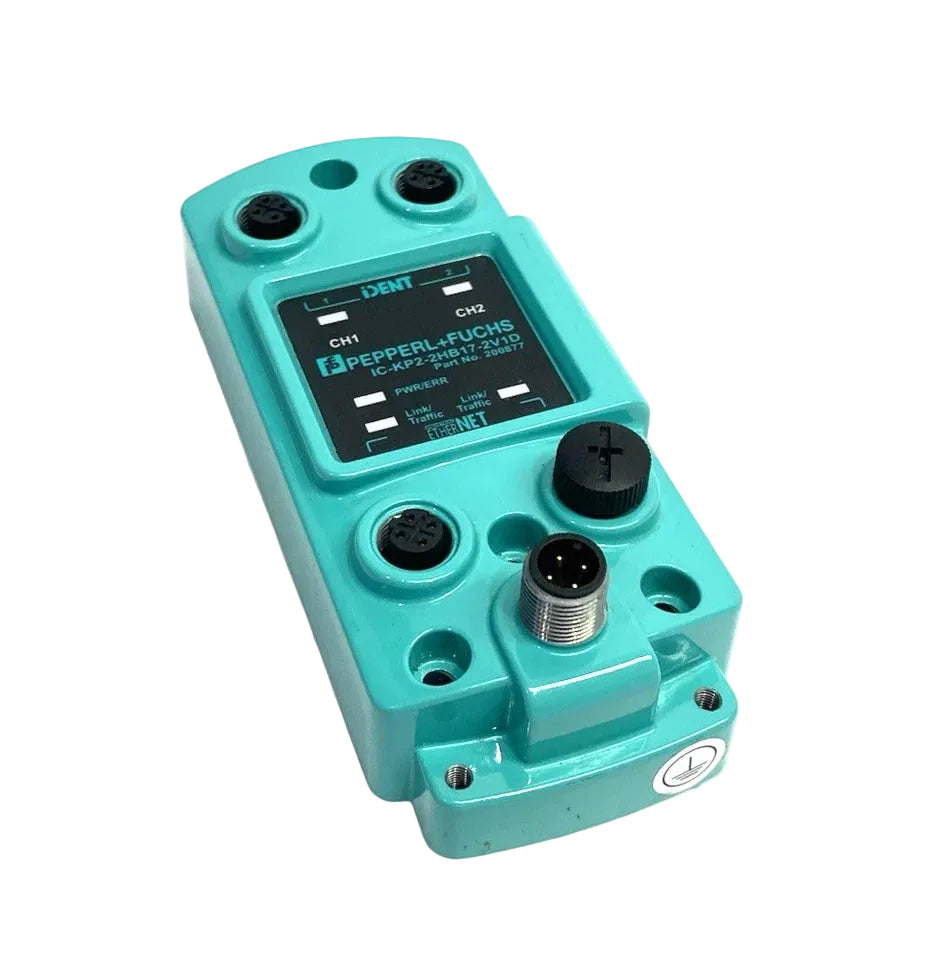

Pepperl+Fuchs IC-KP2-2HB17-2V1D IDENTControl Compact RFID Controller
- Regular price
- $1,212.00
- Sale price
- $1,212.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IC-KP2-2HB17-2V1D
Description
The Pepperl+Fuchs IC-KP2-2HB17-2V1D is an RFID evaluation unit from the IDENTControl Compact family, designed to manage read/write heads and exchange identification data with industrial automation systems. It supports Ethernet communication through TCP/IP, PROFINET, EtherNet/IP, and Modbus TCP, with connections for up to two read/write heads or one read/write head and one trigger sensor.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Control Components |
|
Part Number |
IC-KP2-2HB17-2V1D |
|
Subcategory |
RFID Controllers |
|
Communication Interface |
Ethernet |
|
Supported Protocols |
TCP/IP, PROFINET, EtherNet/IP, Modbus TCP |
|
Integrated Network Switch |
2-port Ethernet switch |
|
Alternative Configuration |
1 read/write head and 1 trigger sensor |
|
Supply Voltage |
20–30 V DC |
|
Current Rating |
4 A |
|
Power Consumption |
3.5 W |
|
Connection Type |
M12, 4-pin connector |
|
Housing Material |
Powder-coated aluminum |
|
Degree of Protection |
IP67 |
|
Ambient Temperature |
−25°C to +70°C |
|
Storage Temperature |
−40°C to +85°C |
|
Maximum Relative Humidity |
96% |
|
Salt Spray Resistance |
EN 60068-2-52 |
|
Dimensions (H × W × L) |
42 × 62 × 137 mm |
|
UL File Number |
E87056 |
|
MTBF |
70 years at +40°C |
|
Weight |
0.33 lb |
Information About IC-KP2-2HB17-2V1D
The IC-KP2-2HB17-2V1D is an industrial RFID control interface that processes identification data from compatible read/write heads and transfers it to a connected controller or network. Its integrated two-port Ethernet switch enables network loop-through, simplifying connections within automation architectures. LED indicators provide status information for bus communication and connected read/write heads, supporting installation and operational diagnostics. The unit uses a powder-coated aluminum housing with IP67 protection and is designed for operation in industrial environments with ambient temperatures from −25°C to +70°C.
Key Features:
-
Multi-protocol Ethernet: Supports TCP/IP, PROFINET, EtherNet/IP, and Modbus TCP communication.
-
Dual read/write head support: Connects up to two compatible RFID read/write heads.
-
Flexible device configuration: Supports one read/write head and one trigger sensor as an alternative configuration.
-
Integrated Ethernet switch: Provides two-port network loop-through for simplified system wiring.
-
LED status indication: Displays bus communication and read/write head status.
-
Industrial housing: Uses powder-coated aluminum construction for demanding installation environments.
-
IP67 protection: Protects the enclosure against dust ingress and water immersion under specified test conditions.
-
Wide operating temperature: Supports ambient temperatures from −25°C to +70°C.
The IC-KP2-2HB17-2V1D delivers the reliability and precision required for RFID identification, traceability, and data exchange in industrial automation systems.
