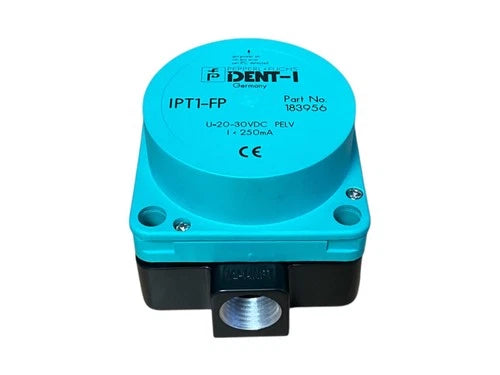

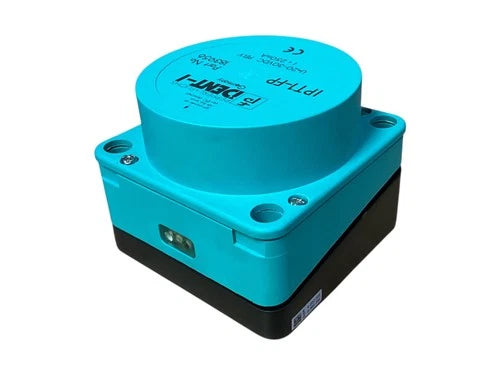

Pepperl+Fuchs IPT1-FP 183956 RFID Read/Write Station
- Regular price
- $1,985.00
- Sale price
- $1,985.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IPT1-FP
Description
The Pepperl+Fuchs IPT1-FP is a low-frequency RFID read/write station designed for industrial identification and data-transfer applications. Operating at 125 kHz, it communicates with compatible transponders at distances of up to 100 mm for reading and 50 mm for writing. Its integrated control interface and IP67 protection rating support installation in suitable industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | IPT1-FP |
| Subcategory | RFID Read/Write Systems |
| Manufacturer Reference | 183956 |
| Product Type | RFID Read/Write Station |
| Operating Frequency | 125 kHz |
| Transfer Rate | 2 kbit/s |
| Maximum Reading Distance | 100 mm |
| Maximum Writing Distance | 50 mm |
| Operating Voltage | 20–30 V DC |
| Maximum Power Consumption | 5 W, when used with base |
| Communication Interface | Depends on selected base |
| Protection Rating | IP67, with base |
| Operating Temperature | −25 to +70 °C |
| Housing Material | PBT |
| Weight | 0.86 lb |
Information About IPT1-FP
The IPT1-FP is a fully assembled RFID read/write station from Pepperl+Fuchs, intended for configuration, testing, and industrial identification tasks. Its integrated analysis system simplifies system design, while the compatible base determines the available serial or fieldbus interface. The device operates at 125 kHz with a transfer rate of 2 kbit/s and supports compatible IPC11 transponders. Three status LEDs indicate power, transponder detection, and fieldbus faults when applicable.
Key Features:
-
125 kHz RFID Operation: Supports low-frequency industrial identification.
-
Read Distance up to 100 mm: Reads compatible transponders within the specified operating range.
-
Write Distance up to 50 mm: Supports data writing at the specified distance.
-
Integrated Control Interface: Includes analysis electronics within the read/write station.
-
Selectable Interfaces: Serial or fieldbus communication depends on the selected base.
-
IP67 Protection: Provides dust-tight construction and protection against temporary immersion when properly assembled.
-
Three Status LEDs: Indicate power, transponder detection, and applicable bus faults.
-
IPC11 Compatibility: Designed to support writing of compatible IPC11 transponders.
The IPT1-FP delivers reliable RFID identification and data-transfer functionality for compatible industrial tracking, configuration, and testing applications.
