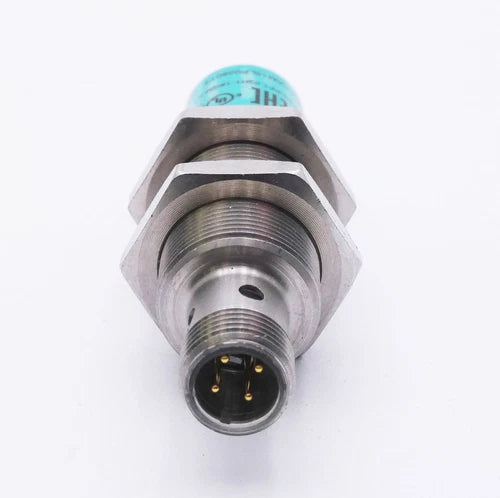

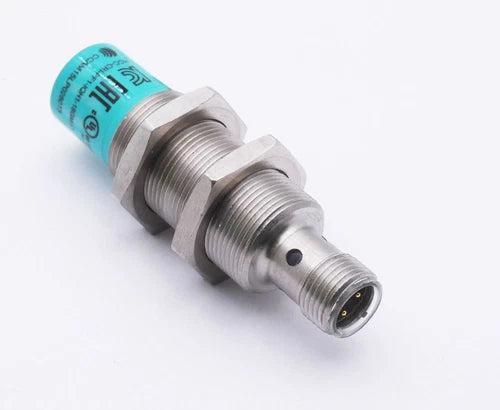

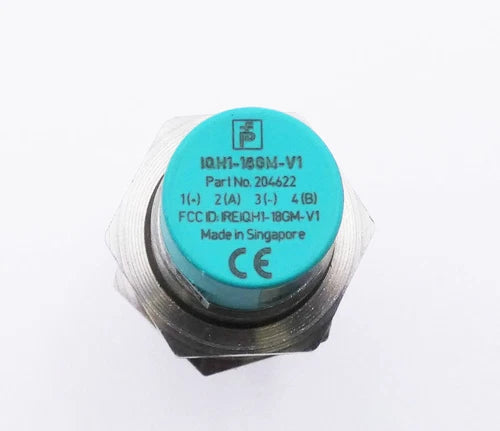

Pepperl+Fuchs IQH1-18GM-V1 HF RFID Read/Write Head
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IQH1-18GM-V1
Description
The Pepperl+Fuchs IQH1-18GM-V1 is a high-frequency RFID read/write head designed to identify and exchange data with compatible transponders in industrial automation systems. Operating at 13.56 MHz, it supports ISO 15693-compatible tags with read and write distances of up to 50 mm. Its M18 threaded housing, M12 connector, and IP67 protection rating make it suitable for industrial identification and tracking applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Industrial Identification |
| Part Number | IQH1-18GM-V1 |
| Subcategory | RFID Read/Write Heads |
| Manufacturer Product ID | 204622 |
| Product Type | HF RFID Read/Write Head |
| Operating Frequency | 13.56 MHz |
| RFID Standard | ISO 15693 |
| Data Transfer Rate | 26 kbit/s |
| Read Distance | 0–50 mm |
| Write Distance | 0–50 mm |
| Power Consumption | ≤ 1.2 W |
| Power Supply | Supplied by compatible IDENTControl evaluation unit |
| Connection | M12 × 1 connector |
| Mounting | M18 × 1 threaded, non-flush |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +70 °C |
| Dimensions | 18 mm diameter × 66 mm length |
| Weight | 0.088 lb |
Information About IQH1-18GM-V1
The IQH1-18GM-V1 is part of the Pepperl+Fuchs IDENTControl RFID identification system and is designed for use with compatible evaluation units. It uses high-frequency inductive coupling to communicate with suitable ISO 15693 transponders, including compatible FRAM tags. An integrated multicolor LED indicates power status, read/write activity, and transponder detection. The cylindrical M18 design allows non-flush mounting in compatible industrial installations, while the M12 connector simplifies connection to the system.
Key Features:
-
High-Frequency RFID: Operates at 13.56 MHz for industrial identification.
-
ISO 15693 Compatibility: Communicates with compatible high-frequency RFID transponders.
-
Read/Write Functionality: Supports both reading and writing tag data.
-
50 mm Read Distance: Manufacturer-listed reading distance of up to 50 mm.
-
M18 Threaded Housing: Features an M18 × 1 threaded mounting design.
-
M12 Connection: Uses an M12 × 1 plug connection.
-
IP67 Protection: Designed to resist dust ingress and temporary immersion under specified test conditions.
-
Multicolor LED Indicator: Displays power, communication activity, and transponder detection.
The IQH1-18GM-V1 delivers reliable RFID identification and data exchange for compatible industrial tracking and automation systems.
Description
The Pepperl+Fuchs IQH1-18GM-V1 is a high-frequency RFID read/write head designed to identify and exchange data with compatible transponders in industrial automation systems. Operating at 13.56 MHz, it supports ISO 15693-compatible tags with read and write distances of up to 50 mm. Its M18 threaded housing, M12 connector, and IP67 protection rating make it suitable for industrial identification and tracking applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Industrial Identification |
| Part Number | IQH1-18GM-V1 |
| Subcategory | RFID Read/Write Heads |
| Manufacturer Product ID | 204622 |
| Product Type | HF RFID Read/Write Head |
| Operating Frequency | 13.56 MHz |
| RFID Standard | ISO 15693 |
| Data Transfer Rate | 26 kbit/s |
| Read Distance | 0–50 mm |
| Write Distance | 0–50 mm |
| Power Consumption | ≤ 1.2 W |
| Power Supply | Supplied by compatible IDENTControl evaluation unit |
| Connection | M12 × 1 connector |
| Mounting | M18 × 1 threaded, non-flush |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +70 °C |
| Dimensions | 18 mm diameter × 66 mm length |
| Weight | 0.088 lb |
Information About IQH1-18GM-V1
The IQH1-18GM-V1 is part of the Pepperl+Fuchs IDENTControl RFID identification system and is designed for use with compatible evaluation units. It uses high-frequency inductive coupling to communicate with suitable ISO 15693 transponders, including compatible FRAM tags. An integrated multicolor LED indicates power status, read/write activity, and transponder detection. The cylindrical M18 design allows non-flush mounting in compatible industrial installations, while the M12 connector simplifies connection to the system.
Key Features:
-
High-Frequency RFID: Operates at 13.56 MHz for industrial identification.
-
ISO 15693 Compatibility: Communicates with compatible high-frequency RFID transponders.
-
Read/Write Functionality: Supports both reading and writing tag data.
-
50 mm Read Distance: Manufacturer-listed reading distance of up to 50 mm.
-
M18 Threaded Housing: Features an M18 × 1 threaded mounting design.
-
M12 Connection: Uses an M12 × 1 plug connection.
-
IP67 Protection: Designed to resist dust ingress and temporary immersion under specified test conditions.
-
Multicolor LED Indicator: Displays power, communication activity, and transponder detection.
The IQH1-18GM-V1 delivers reliable RFID identification and data exchange for compatible industrial tracking and automation systems.
