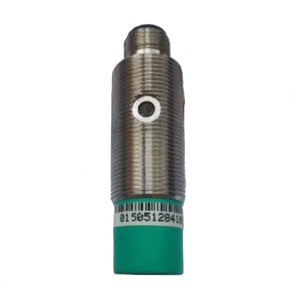

Pepperl+Fuchs IVH-18GM-V1 System IV RFID Read/Write Head
- Regular price
- $885.00
- Sale price
- $885.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IVH-18GM-V1
Description
The Pepperl+Fuchs IVH-18GM-V1 is an inductive RFID read/write head designed for industrial identification and data communication systems. Part of the System IV identification family, it operates at 250 kHz, supports a transfer rate of 7.8 kbit/s, and connects to a compatible evaluation unit through an M12 connector.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | RFID & Identification Systems |
| Part Number | IVH-18GM-V1 |
| Subcategory | RFID Read/Write Heads |
| Identification System | System IV |
| Device Type | Inductive RFID read/write head |
| Operating Frequency | 250 kHz |
| Transfer Rate | 7.8 kbit/s |
| Maximum Operating Distance | 42 mm |
| Power Consumption | 1.1 W |
| Connection Type | M12 × 1 plug connector, V1 |
| Mounting Thread | M18 × 1 |
| Status Indicators | Dual green/yellow LEDs |
| Protection Rating | IP67 |
| Housing Material | PBT and stainless steel |
| Operating Temperature | −25°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Installation | Non-flush; requires a metal-free zone and clearance from adjacent heads |
| Weight | 0.24 lb |
Information About IVH-18GM-V1
The IVH-18GM-V1 is a compact RFID read/write head from Pepperl+Fuchs designed to communicate with compatible identification data carriers. It operates at 250 kHz and supports data transfer at 7.8 kbit/s, with a maximum operating distance of 42 mm under specified conditions. The unit features a threaded M18 × 1 housing, an M12 × 1 plug connection, and dual LEDs for operating status and data carrier detection. Its IP67 protection and PBT/stainless-steel construction make it suitable for industrial identification applications.
-
RFID Identification: Functions as a read/write head for the Pepperl+Fuchs System IV identification system.
-
Operating Frequency: Uses a 250 kHz operating frequency.
-
Data Transfer Rate: Supports communication at 7.8 kbit/s.
-
Operating Distance: Provides a maximum operating distance of 42 mm, depending on the compatible data carrier and installation conditions.
-
Threaded Housing: Features an M18 × 1 thread for mounting.
-
Electrical Connection: Uses an M12 × 1 plug connection.
-
Status Indicators: Includes dual LEDs for power and data carrier detection.
-
Environmental Protection: IP67-rated construction helps protect against dust and temporary immersion.
The IVH-18GM-V1 delivers the reliability and precision required for industrial identification, product tracking, and automated data exchange systems.
