Pepperl+Fuchs IVI-KHD2-4HB6 PROFIBUS-DP Identification Interface
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IVI-KHD2-4HB6
Description

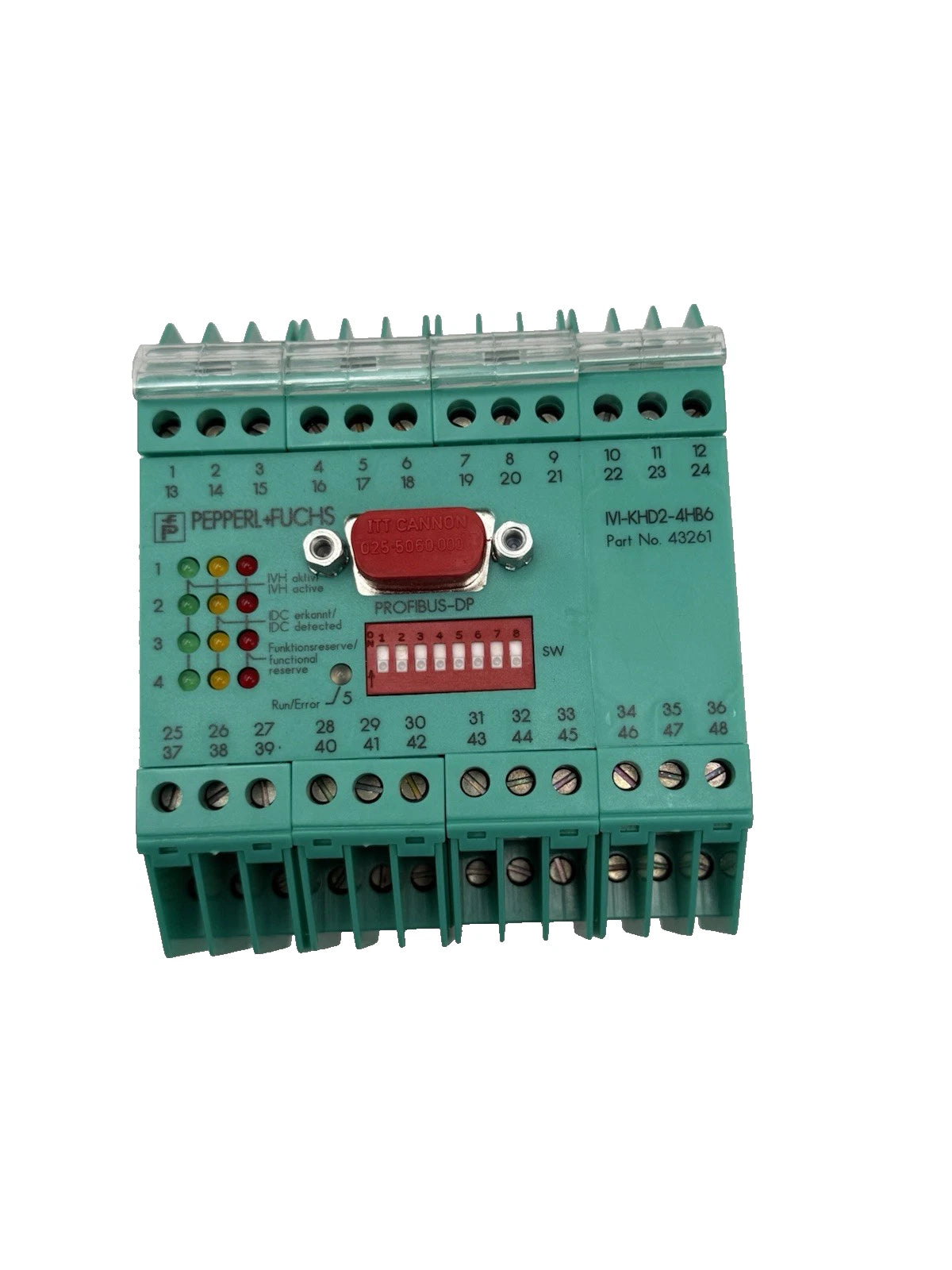

The Pepperl+Fuchs IVI-KHD2-4HB6 is a control interface unit designed to connect industrial identification read/write heads to a PROFIBUS-DP network. It supports up to four compatible read/write heads and transfers identification data to a PLC or other PROFIBUS-DP master for automated tracking and identification applications.
Technical Specifications
| Specification | Details |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation & Control |
| Part Number | IVI-KHD2-4HB6 |
| Subcategory | PROFIBUS Interface Modules |
| Device Type | Identification control interface unit |
| Communication Protocol | PROFIBUS-DP, EN 50170 |
| Physical Interface | RS-485 |
| Maximum Read/Write Heads | 4 |
| Data Transfer Capacity | Up to 14 words × 16 bits per cycle |
| Maximum Data per Cycle | 32 bytes |
| Operating Voltage | 18–30 V DC |
| Voltage Ripple | Maximum 10% |
| Current Consumption | 250 mA |
| No-Load Supply Current | ≤120 mA; up to 190 mA with an active read head |
| Power Consumption | 6 W |
| Supported Transfer Rates | 9.6, 19.2, 44.44, 93.75, 187.5, 500, and 1500 kbit/s |
| Address Configuration | DIP switches |
| Bus Termination | Integrated, selectable |
| Connection | Self-opening terminals and 9-pin Sub-D connector |
| Maximum Conductor Cross-Section | 2 × 2.5 mm² |
| Protection Rating | IP20 |
| Housing Material | Makrolon 6485 |
| Operating Temperature | −25°C to +70°C |
| Storage Temperature | −25°C to +85°C |
| Dimensions (W × H × D) | 80 × 90 × 110 mm |
| Weight | 1.10 lb |
Information About IVI-KHD2-4HB6
The IVI-KHD2-4HB6 is a PROFIBUS-DP slave interface from Pepperl+Fuchs for industrial identification systems. It connects up to four compatible read/write heads and transfers up to 14 words of 16-bit data per communication cycle. The unit operates on an 18–30 V DC supply and uses an RS-485 physical interface, with communication rates up to 1.5 Mbit/s. Its DIP-switch address configuration, selectable bus termination, and LED status indicators support installation and diagnostics in industrial control systems.
-
PROFIBUS-DP Communication: Connects an identification system to a PROFIBUS-DP network.
-
Four-Head Capacity: Supports up to four compatible read/write heads.
-
Data Transfer: Transfers up to 14 words of 16-bit data per cycle.
-
RS-485 Interface: Uses an RS-485 physical communication interface.
-
Address Configuration: Allows the station address to be set using DIP switches.
-
Integrated Bus Termination: Provides a selectable termination resistor.
-
Status Indicators: Includes LEDs for head activity, data carrier detection, and bus status.
-
Industrial Mounting: Uses a K-System housing designed for DIN-rail installation.
The IVI-KHD2-4HB6 delivers the reliability and precision required for automated identification, production tracking, and PLC-based industrial control systems.
