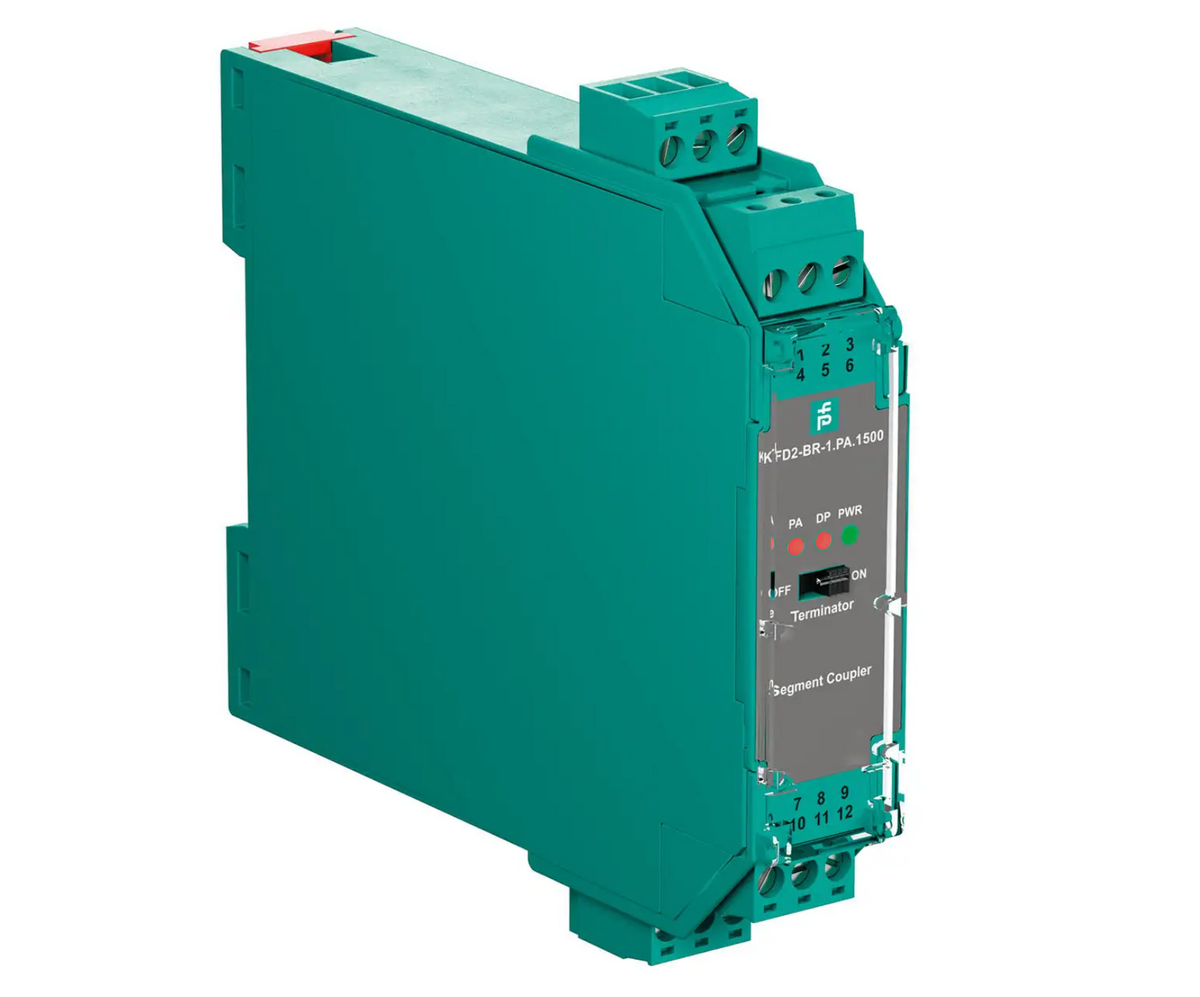

Pepperl+Fuchs KFD2-BR-1.PA.1500 FieldConnex Segment Coupler
- Regular price
- $2,167.00
- Sale price
- $2,167.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KFD2-BR-1.PA.1500
Description
The Pepperl+Fuchs KFD2-BR-1.PA.1500 is a FieldConnex segment coupler that connects PROFIBUS PA field devices to a PROFIBUS DP control network. It supplies power to a single PA segment, supports transmission speeds up to 1.5 Mbit/s on the DP side, and provides an output of 24–26 V DC at up to 400 mA.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | KFD2-BR-1.PA.1500 |
| Subcategory | Fieldbus Segment Couplers |
| Product Family | FieldConnex |
| Product Type | Basic Segment Coupler |
| Number of PA Segments | 1 |
| Input Supply Voltage | 20–30 V DC |
| Input Ripple | ≤ 10% |
| Rated Input Current | 365–640 mA |
| Maximum Power Dissipation | 2.5 W |
| PROFIBUS PA Output Voltage | 24–26 V DC |
| Maximum PA Output Current | 400 mA |
| Integrated PA Terminating Impedance | 100 Ω |
| PROFIBUS DP Interface | RS-485 |
| Maximum DP Baud Rate | 1.5 Mbit/s |
| Mounting Type | 35 mm DIN rail |
| Connection Type | Pluggable screw terminals |
| Maximum Conductor Cross-Section | 2.5 mm² |
| Housing Material | Polycarbonate |
| Protection Rating | IP20 |
| Operating Temperature | −40 to +60 °C (−40 to +140 °F) |
| Hazardous-Area Approval | ATEX, IECEx, CSA; applicable installation conditions apply |
| Weight | 0.40 lb |
Information About KFD2-BR-1.PA.1500
The KFD2-BR-1.PA.1500 is a basic segment coupler designed for transparent communication between PROFIBUS PA devices and a PROFIBUS DP master. It operates from a 20–30 V DC supply and supports one PROFIBUS PA segment. An integrated 100 Ω terminating impedance and selectable PROFIBUS DP termination support network installation. The module is designed for DIN-rail mounting and approved applications in Zone 2 and Class I, Division 2 hazardous locations, subject to installation requirements.
-
Protocol Conversion: Connects PROFIBUS PA field devices to PROFIBUS DP networks.
-
Single Segment: Supports one PROFIBUS PA segment.
-
PA Output: Supplies 24–26 V DC at up to 400 mA.
-
Power Supply: Operates from a 20–30 V DC input.
-
Communication Speed: Supports PROFIBUS DP transmission up to 1.5 Mbit/s.
-
Network Termination: Includes integrated 100 Ω PA termination and a selectable DP terminator.
-
Status Indicators: LEDs indicate power, DP communication or faults, and PA communication status.
-
Industrial Installation: Supports 35 mm DIN-rail mounting and specified hazardous-area applications.
The KFD2-BR-1.PA.1500 delivers the reliability and precision required for integrating PROFIBUS PA field instruments into PROFIBUS DP control systems.
