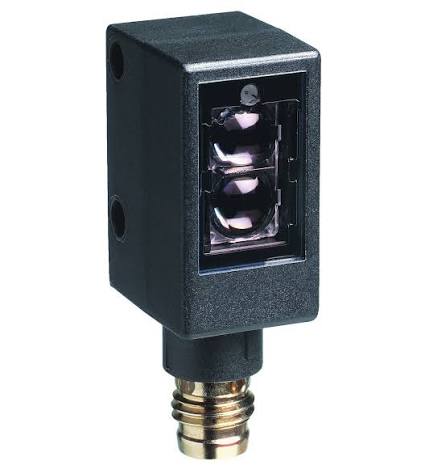

Pepperl+Fuchs ML4.2-8-H-40-RT/40b/95/110 Photoelectric Sensor
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ML4.2-8-H-40-RT/40b/95/110
Description
The Pepperl+Fuchs ML4.2-8-H-40-RT/40b/95/110 is a compact photoelectric sensor designed for precise object detection with background suppression. It provides a 10–40 mm detection range, a push-pull switching output, and a four-pin M8 connector for integration into industrial automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Transducers |
| Part Number | ML4.2-8-H-40-RT/40b/95/110 |
| Subcategory | Photoelectric Background Suppression Sensors |
| Sensor Type | Diffuse-mode photoelectric sensor with background suppression |
| Detection Range | 10–40 mm |
| Operating Voltage | 10–30 V DC |
| Light Source | Modulated red light |
| Wavelength | 660 nm |
| Output Type | Push-pull switching output |
| Maximum Switching Current | 100 mA |
| Maximum Switching Voltage | 30 V DC |
| Voltage Drop | ≤ 2.5 V DC |
| Switching Frequency | 1,000 Hz |
| Response Time | 0.5 ms |
| Switching Mode | Electrically selectable light-on/dark-on |
| Connection | 4-pin M8 × 1 connector |
| Protection Rating | IP67 / IP69K |
| Housing Material | ABS plastic |
| Optical Surface | Glass |
| Operating Temperature | −20°C to +60°C |
| Storage Temperature | −20°C to +75°C |
| Dimensions (H × W × D) | 31.4 × 13.9 × 18 mm |
| Weight | 0.022 lb |
Information About ML4.2-8-H-40-RT/40b/95/110
The ML4.2-8-H-40-RT/40b/95/110 is a miniature background suppression sensor from Pepperl+Fuchs designed to detect objects while reducing interference from backgrounds behind them. It uses modulated red light at a wavelength of 660 nm and supports detection distances of 10–40 mm. The sensor operates on 10–30 V DC and features a push-pull output with electrically selectable light-on and dark-on switching. Its IP67/IP69K protection, glass optical surface, and compact housing make it suitable for industrial environments requiring reliable object sensing.
-
Detection Range: Detects objects at distances of 10–40 mm.
-
Background Suppression: Reduces unwanted switching caused by objects behind the target.
-
Light Source: Uses modulated red light with a 660 nm wavelength.
-
Switching Output: Provides a push-pull output with short-circuit and reverse-polarity protection.
-
Operating Voltage: Supports a 10–30 V DC supply.
-
Switching Modes: Allows electrical selection between light-on and dark-on operation.
-
Environmental Protection: IP67 and IP69K ratings support use in demanding industrial conditions.
-
Electrical Connection: Uses a four-pin M8 × 1 connector.
The ML4.2-8-H-40-RT/40b/95/110 delivers the reliability and precision required for close-range object detection, component positioning, and automated production processes.
