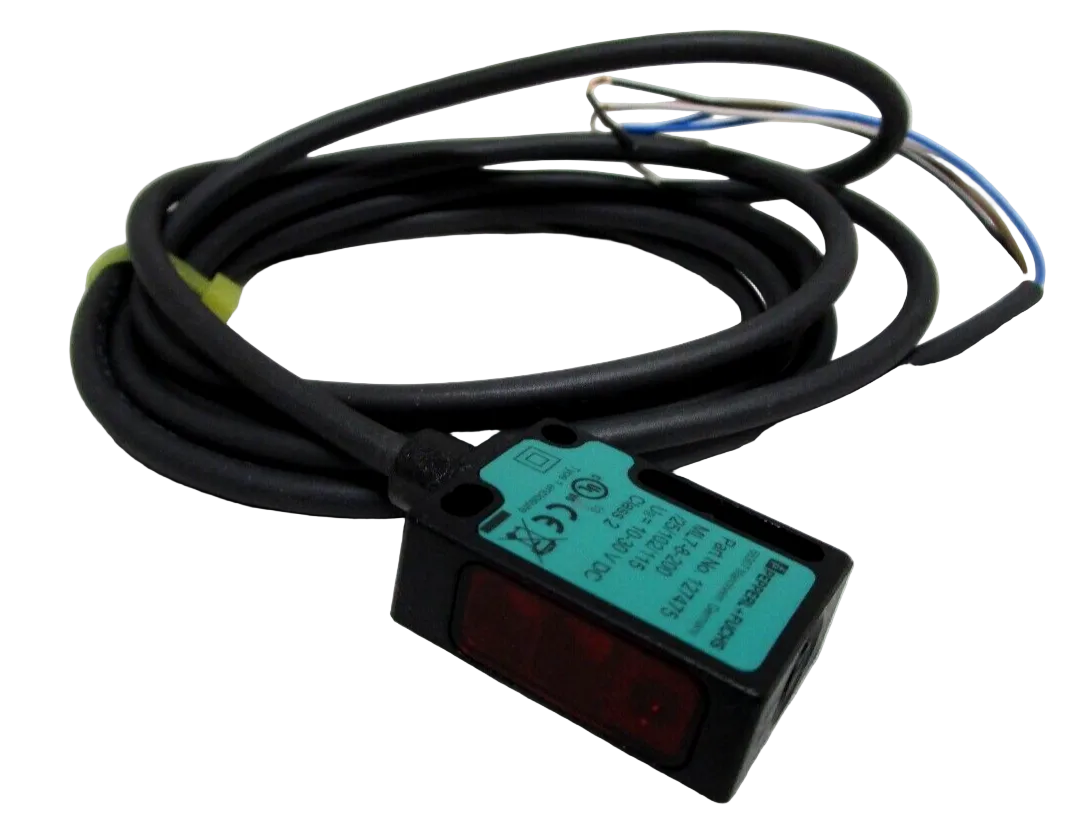

Pepperl+Fuchs ML7-8-200/25/102/115 Diffuse Photoelectric Sensor 20–200 mm
- Regular price
- $725.00
- Sale price
- $725.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ML7-8-200/25/102/115
Description
The Pepperl+Fuchs ML7-8-200/25/102/115 is a miniature diffuse-mode photoelectric sensor designed to detect objects at adjustable distances from 20 to 200 mm. It uses modulated visible red LED light and an NPN switching output to provide object detection signals for industrial automation and control applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Control Components |
|
Part Number |
ML7-8-200/25/102/115 |
|
Subcategory |
Photoelectric Sensors |
|
Alternative Part Number |
127475 |
|
Sensor Type |
Diffuse-mode photoelectric sensor |
|
Detection Range |
20–200 mm, adjustable |
|
Light Source |
LED |
|
Light Type |
Modulated visible red light |
|
Light Spot Diameter |
Approximately 15 mm at 200 mm |
|
Divergence Angle |
Approximately 4.5° |
|
Switching Output |
1 NPN output |
|
Switching Mode |
Light-on |
|
Output Type |
Open collector |
|
Operating Voltage |
10–30 V DC, Class 2 |
|
Switching Frequency |
1,000 Hz |
|
Sensitivity Adjustment |
TEACH-IN button |
|
Function Indicator |
Yellow LED |
|
Mutual Interference Protection |
Protected against cross-talk |
|
Electrical Connection |
Fixed cable |
|
Housing Material |
Plastic |
|
Housing Dimensions (H × W × L) |
31 × 23 × 11 mm |
|
Weight |
0.132 lb |
Information About ML7-8-200/25/102/115
The ML7-8-200/25/102/115 belongs to the Pepperl+Fuchs ML7 series of compact photoelectric sensors developed for space-constrained detection applications. Its diffuse sensing principle detects light reflected directly from an object, eliminating the need for a separate reflector or receiver. The integrated TEACH-IN button allows sensitivity adjustment, while yellow LED status indication and a flashing power LED during short-circuit conditions support setup and troubleshooting. The sensor features a fixed cable connection, light-on switching behavior, short-circuit and reverse-polarity protection, and resistance to ambient light and mutual interference.
Key Features:
-
Diffuse-mode detection: Detects objects using light reflected from their surfaces without requiring a separate reflector.
-
Adjustable sensing range: Supports detection distances from 20 to 200 mm.
-
Red LED light source: Uses modulated visible red light for object sensing and alignment.
-
NPN switching output: Provides an open-collector output with light-on switching behavior.
-
TEACH-IN sensitivity adjustment: Enables sensitivity configuration through the integrated teach button.
-
Compact housing: Miniature plastic construction supports installation in space-limited equipment.
-
Electrical protection: Includes short-circuit and reverse-polarity protection.
-
Status indication: Yellow function LED indicates receiver activation, with a flashing power LED for short-circuit indication.
The ML7-8-200/25/102/115 delivers the reliability and precision required for photoelectric object detection in industrial automation and machine control systems.
