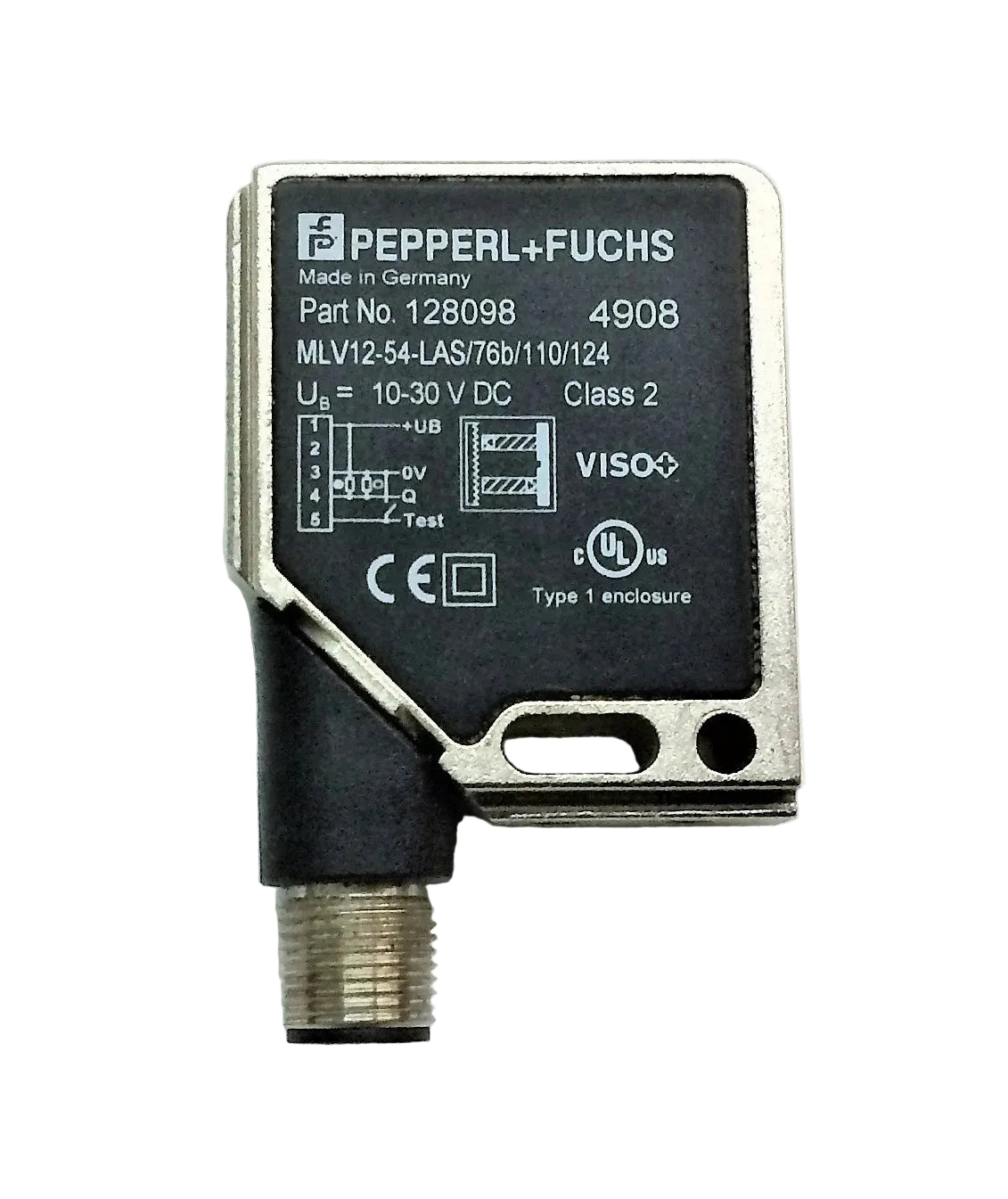

Pepperl+Fuchs MLV12-54-LAS/76B/110/124 Retroreflective Photoelectric Sensor 15 m
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MLV12-54-LAS/76B/110/124
Description
The Pepperl+Fuchs MLV12-54-LAS/76B/110/124 is a retroreflective photoelectric sensor designed for non-contact object detection in industrial automation systems. It uses modulated visible red light with a sensing range of up to 15 m and supports a 10–30 VDC supply with a push-pull output.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Control Components |
|
Part Number |
MLV12-54-LAS/76B/110/124 |
|
Subcategory |
Photoelectric Sensors |
|
Series |
MLV12 |
|
Sensing Range |
Up to 15 m |
|
Light Source |
Modulated visible red light |
|
Output Type |
Push-pull |
|
Output Compatibility |
NPN/PNP |
|
Supply Voltage |
10–30 VDC |
|
Nominal Voltage |
12 VDC, 24 VDC |
|
Operating Mode |
Switchable light-on/dark-on |
|
Connection |
5-pin M12 connector, 90° rotatable |
|
Maximum Load Current |
0.1 A |
|
Switching Frequency |
2,500 Hz |
|
Ingress Protection |
IP67 |
|
Housing Material |
Metallic |
|
Approvals |
CE, cULus |
|
Dimensions (H × W × D) |
0.70 × 1.60 × 2.55 in |
|
Weight |
0.13 lb |
Information About MLV12-54-LAS/76B/110/124
The MLV12-54-LAS/76B/110/124 belongs to the Pepperl+Fuchs MLV12 Series of photoelectric sensors. Its retroreflective operating principle uses reflected light to detect objects, while an integrated polarization filter supports reliable detection in compatible reflector-based installations. The sensor offers switchable light-on and dark-on operation and a 5-pin M12 connector that can be rotated 90 degrees. Its IP67-rated housing and switching frequency of up to 2,500 Hz support use in industrial environments requiring rapid object detection.
Key Features:
-
Retroreflective detection: Detects objects using reflected visible red light with a compatible reflector.
-
Extended sensing range: Provides a maximum sensing range of up to 15 m.
-
Wide supply voltage: Operates with a 10–30 VDC power supply.
-
Push-pull output: Supports compatible NPN/PNP-style switching interfaces.
-
Switchable operating modes: Allows selection between light-on and dark-on operation.
-
Polarization filter: Supports reliable retroreflective detection in compatible installations.
-
Industrial protection: Features an IP67 protection rating against dust and temporary water immersion.
-
Rotatable connector: Uses a 5-pin M12 connector with 90-degree rotational adjustment.
The MLV12-54-LAS/76B/110/124 delivers the reliability and precision required for industrial retroreflective sensing and automated object detection applications.
