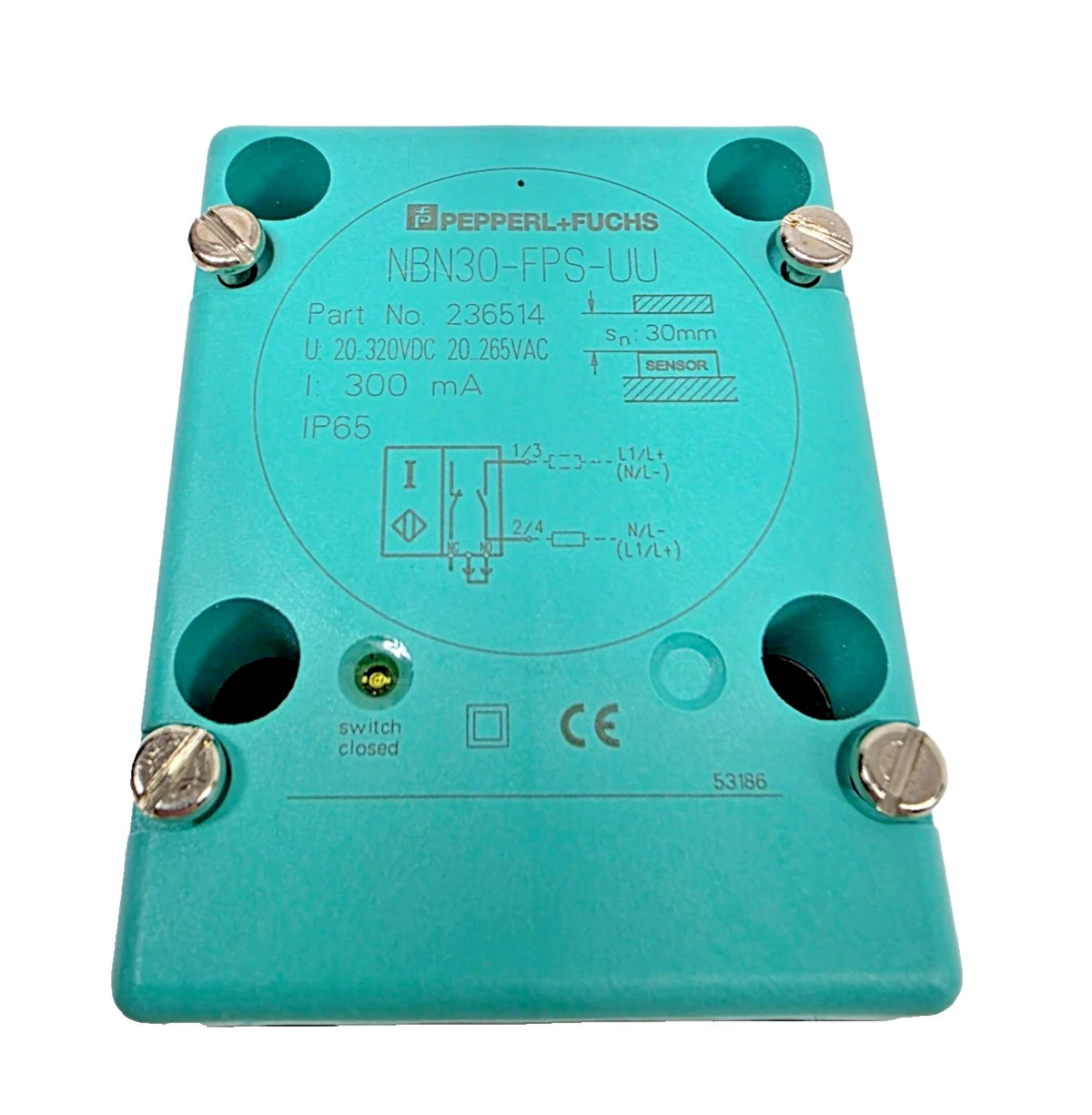

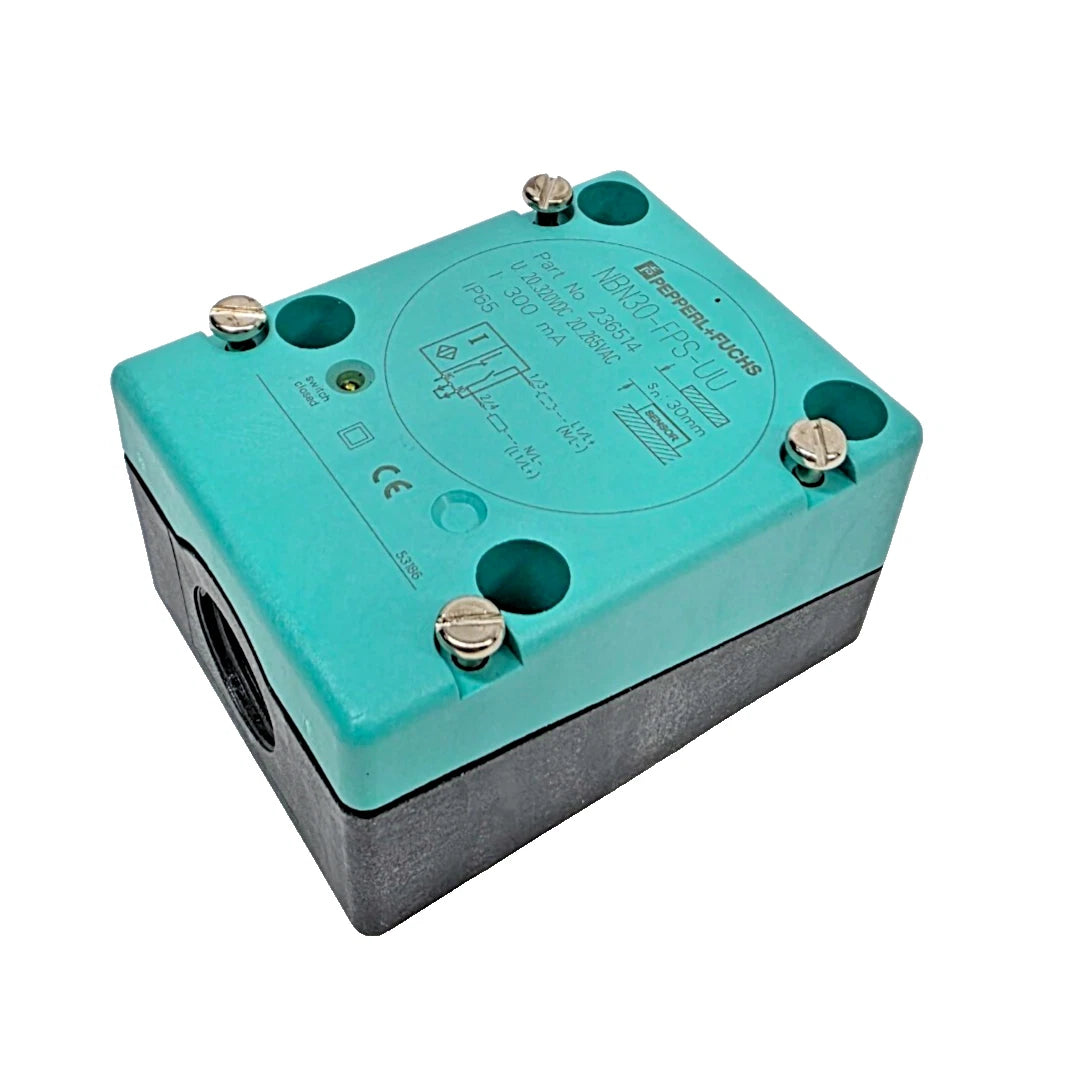

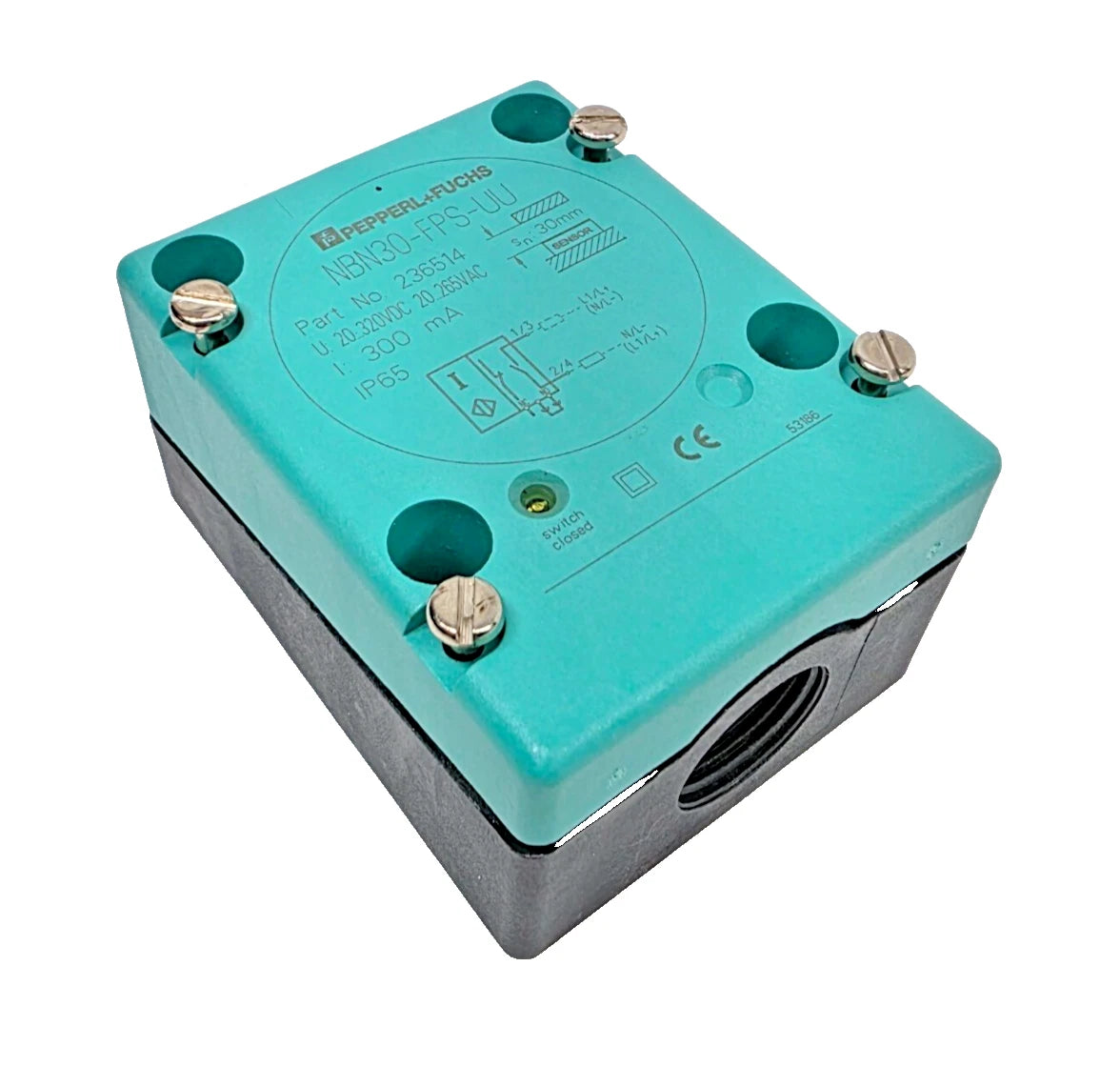

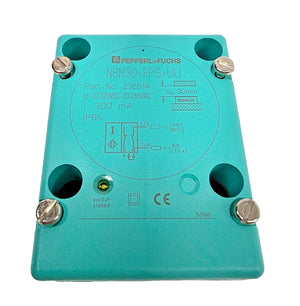

Pepperl+Fuchs NBN30-FPS-UU 30 mm Inductive Proximity Sensor
- Regular price
- $612.00
- Sale price
- $612.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NBN30-FPS-UU
Description
The Pepperl+Fuchs NBN30-FPS-UU is a rectangular inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation systems. It provides a 30 mm nominal sensing distance, a selectable normally open or normally closed switching function, and compatibility with 20–265 V AC/DC supplies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | NBN30-FPS-UU |
| Subcategory | Inductive Proximity Sensors |
| Sensor Type | Inductive proximity sensor |
| Rated Operating Distance | 30 mm |
| Assured Operating Distance | 0–24.3 mm |
| Mounting Style | Non-flush |
| Output Type | Two-wire |
| Output Polarity | AC/DC |
| Switching Function | Selectable NO/NC |
| Operating Voltage | 20–265 V AC/DC |
| Switching Frequency | 0–25 Hz |
| Maximum Operating Current | 300 mA |
| No-Load Supply Current | ≤ 2 mA |
| Voltage Drop | ≤ 8 V |
| Connection Type | Screw terminals |
| Housing Material | PBT |
| Protection Rating | IP65 |
| Dimensions | 77 × 60 × 41 mm |
| Weight | 0.60 lb |
Information About NBN30-FPS-UU
The NBN30-FPS-UU is a non-flush-mounted inductive sensor from Pepperl+Fuchs. It uses a two-wire AC/DC output and supports selectable NO/NC switching through a coding plug. The sensor operates across a 20–265 V AC/DC supply range and has a maximum switching frequency of 25 Hz. Its IP65-rated PBT housing is suitable for industrial environments where protection against dust and water jets is required.
-
Sensing Technology: Inductive detection of metallic targets without physical contact.
-
Sensing Distance: 30 mm nominal operating distance.
-
Mounting Style: Non-flush installation.
-
Switching Function: Selectable normally open or normally closed.
-
Output Configuration: Two-wire AC/DC.
-
Operating Voltage: 20–265 V AC/DC.
-
Switching Frequency: Up to 25 Hz.
-
Protection Rating: IP65 enclosure for industrial applications.
The NBN30-FPS-UU delivers the reliability and precision required for metallic object detection and position monitoring in industrial automation equipment.
