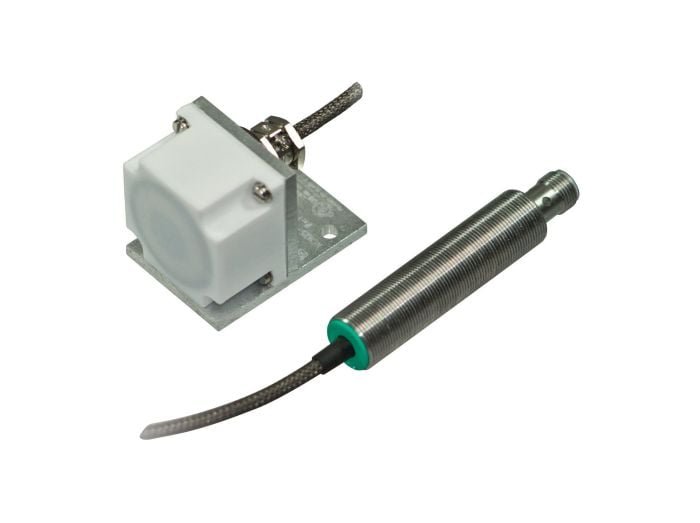

Pepperl+Fuchs NCN25-F35-A2-250-V1 High-Temperature Inductive Sensor
- Regular price
- $555.00
- Sale price
- $555.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NCN25-F35-A2-250-V1
Description
The Pepperl+Fuchs NCN25-F35-A2-250-V1 is a high-temperature inductive sensor designed to detect metallic targets in industrial environments where elevated temperatures are present. It provides a nominal sensing distance of 25 mm, uses a PNP complementary switching output, and operates with a separate amplifier connected through a 10 m armored cable. Its sensor component is rated for ambient temperatures up to 250°C, making it suitable for specialized industrial detection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Switches |
| Part Number | NCN25-F35-A2-250-V1 |
| Subcategory | Inductive Proximity Sensors |
| Product Series | Comfort Series |
| Product Type | High-Temperature Inductive Sensor |
| Rated Sensing Distance | 25 mm |
| Assured Operating Distance | 0–20 mm |
| Output Type | PNP, 4-wire, complementary |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 0–20 Hz |
| Sensor Temperature Range | 0 to 250°C |
| Amplifier Temperature Range | 0 to 70°C |
| Cable Length | 10 m, armored PFA cable |
| Protection Rating | Amplifier IP67; sensor IP40 |
| Connection | M12 × 1, 4-pin connector |
| Weight | 1.63 lb |
Information About NCN25-F35-A2-250-V1
The NCN25-F35-A2-250-V1 belongs to the Pepperl+Fuchs Comfort series of inductive sensors. Its sensing component is designed for temperatures from 0°C to 250°C, while the separate amplifier has an operating temperature range of 0°C to 70°C. The sensor supports flush mounting, a 10–30 V DC supply, and a four-wire PNP output configuration with complementary switching. A 10 m PFA cable with stainless-steel armor connects the sensor to the amplifier, supporting installations that require increased resistance to abrasion and mechanical wear.
Key Features:
-
High-Temperature Detection: Sensor component rated for ambient temperatures up to 250°C.
-
25 mm Sensing Distance: Detects suitable metallic targets within its specified operating range.
-
PNP Complementary Output: Provides complementary switching signals for compatible control inputs.
-
10–30 V DC Supply: Operates from a low-voltage DC power source.
-
Separate Amplifier: Keeps the amplifier within its specified 0–70°C operating temperature range.
-
10 m Armored Cable: Uses PFA cable with stainless-steel armor for demanding installations.
-
Flush-Mountable Design: Supports installation in compatible mounting arrangements.
-
Industrial Protection: Amplifier rated IP67; sensor rated IP40, so the sensor head requires suitable environmental protection.
The NCN25-F35-A2-250-V1 delivers high-temperature metallic-object detection for industrial automation applications requiring an extended sensing distance and a remote amplifier.
