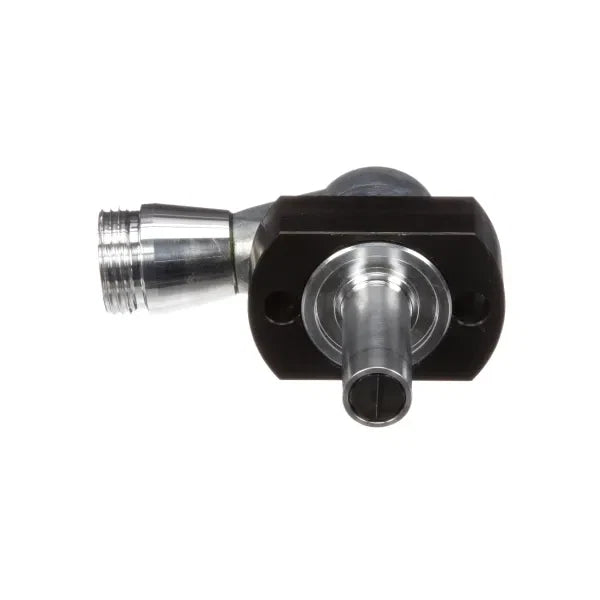

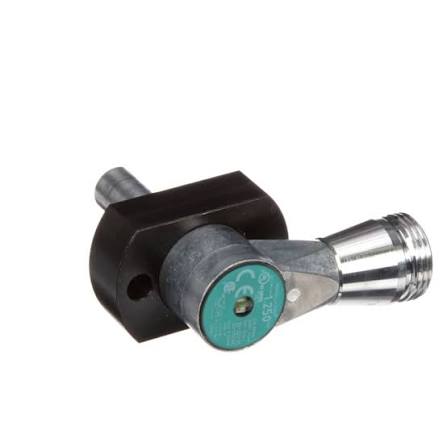

Pepperl+Fuchs NJ1.5-PD-US-1.250-V93 Inductive Proximity Sensor
- Regular price
- $707.00
- Sale price
- $707.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NJ1.5-PD-US-1.250-V93
Description
The Pepperl+Fuchs NJ1.5-PD-US-1.250-V93 is an inductive proximity sensor designed for non-contact metal detection in industrial machinery. It features a 1.5 mm nominal sensing distance, a two-wire AC/DC normally open output, and a pressure rating of 3,000 psi for demanding operating environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | NJ1.5-PD-US-1.250-V93 |
| Subcategory | Inductive Proximity Sensors |
| Product Type | Inductive Proximity Sensor |
| Series | NJ |
| Nominal Sensing Distance | 1.5 mm |
| Assured Operating Distance | 0–1.21 mm |
| Switching Function | Normally Open (NO) |
| Output Type | Two-wire AC/DC |
| Operating Voltage | 20–250 V AC / 20–300 V DC |
| Rated Operating Current | 8–300 mA AC/DC |
| Switching Frequency | 0–20 Hz |
| Voltage Drop | ≤ 7 V |
| Dynamic Pressure Rating | 3,000 psi |
| Connection | 7/8"-16 UN, 3-pin connector |
| Protection Rating | IP67 |
| Housing Material | Zinc housing; aluminum probe |
| Operating Temperature | −25°C to +70°C |
| Protection Features | Reverse-polarity and short-circuit protection |
| Weight | 0.46 lb |
Information About NJ1.5-PD-US-1.250-V93
The NJ1.5-PD-US-1.250-V93 is an inductive proximity sensor manufactured by Pepperl+Fuchs for industrial position and presence detection. Its flush-mounted sensing design detects metallic targets within a nominal operating distance of 1.5 mm. The sensor operates on 20–250 V AC or 20–300 V DC and supports load currents from 8 to 300 mA. Its weld-immune construction, IP67 protection, and high-pressure capability make it suitable for industrial equipment exposed to challenging conditions.
-
Sensing Distance: Provides a nominal operating distance of 1.5 mm.
-
Output Configuration: Uses a two-wire, normally open switching output.
-
AC/DC Operation: Supports 20–250 V AC and 20–300 V DC.
-
Pressure Rating: Designed for dynamic operating pressures up to 3,000 psi.
-
Weld Immunity: Suitable for applications where welding fields may affect conventional sensors.
-
Environmental Protection: IP67-rated enclosure helps protect against dust and water ingress.
-
Status Indicators: LEDs indicate power, output status, and short-circuit or overload conditions.
-
Electrical Protection: Includes reverse-polarity and short-circuit protection.
The NJ1.5-PD-US-1.250-V93 delivers the reliability and precision required for industrial metal detection, machine positioning, and proximity monitoring applications.
