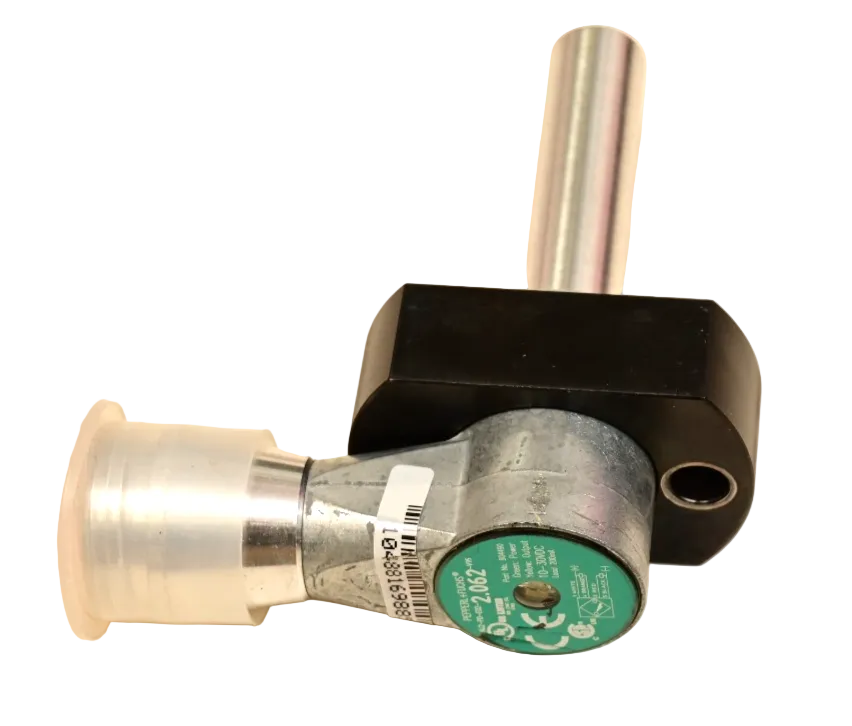

Pepperl+Fuchs NJ2-PD-E02-2.062-V95 Inductive Cylinder Position Sensor 2 mm
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NJ2-PD-E02-2.062-V95
Description
The Pepperl+Fuchs NJ2-PD-E02-2.062-V95 is an inductive proximity sensor designed for cylinder position detection in industrial automation systems. It provides a 2 mm sensing distance, a 10–30 VDC supply range, and NPN/PNP normally open outputs for detecting metallic targets.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Control Components |
|
Part Number |
NJ2-PD-E02-2.062-V95 |
|
Subcategory |
Inductive Proximity Sensors |
|
Series |
NJ Series |
|
Sensor Type |
Inductive |
|
Sensing Distance |
2 mm |
|
Supply Voltage |
10–30 VDC |
|
Nominal Voltage |
24 VDC |
|
Output Configuration |
NPN/PNP, normally open |
|
Connection |
5-pin, 7/8"-16 UN connector |
|
Mounting |
Flush |
|
Ingress Protection |
IP67 |
|
Operating Temperature |
-25 to 70 °C |
|
Maximum Load Current |
0.2 A |
|
Status Indicator |
LED |
|
Pressure Rating |
3,000 psi |
|
Approvals |
cCSAus, CE, cULus |
|
Dimensions (H × W × D) |
1.25 × 2.45 × 4.10 in |
|
Weight |
0.395 lb |
Information About NJ2-PD-E02-2.062-V95
The NJ2-PD-E02-2.062-V95 belongs to the Pepperl+Fuchs NJ Series and is designed for cylinder position sensing applications. Its flush-mount configuration and weld-field immunity support use in demanding industrial environments, including applications involving welding equipment. The sensor features a 5-pin, 7/8"-16 UN connector and supports a maximum load current of 0.2 A. Integrated LED status indication, short-circuit protection, and reverse-polarity protection support monitoring and electrical protection during operation.
Key Features:
-
Inductive sensing: Detects metallic targets at a rated sensing distance of 2 mm.
-
DC power supply: Operates with a supply voltage of 10–30 VDC.
-
NPN/PNP outputs: Provides normally open switching outputs for compatible control systems.
-
Flush installation: Supports flush mounting in the specified sensing arrangement.
-
Weld-field immunity: Designed to resist interference from welding magnetic fields.
-
Status indication: Includes an LED indicator for monitoring sensor status.
-
Electrical protection: Includes short-circuit and reverse-polarity protection.
-
Industrial construction: Features IP67 ingress protection for suitable industrial environments.
The NJ2-PD-E02-2.062-V95 delivers the reliability and precision required for industrial cylinder position detection and inductive proximity sensing applications.
