OCS2000-M1K-N2 | Pepperl+Fuchs Intrinsically Safe Optical Sensor ATEX IECE
- Regular price
- $1,667.00
- Sale price
- $1,667.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OCS2000-M1K-N2
Description

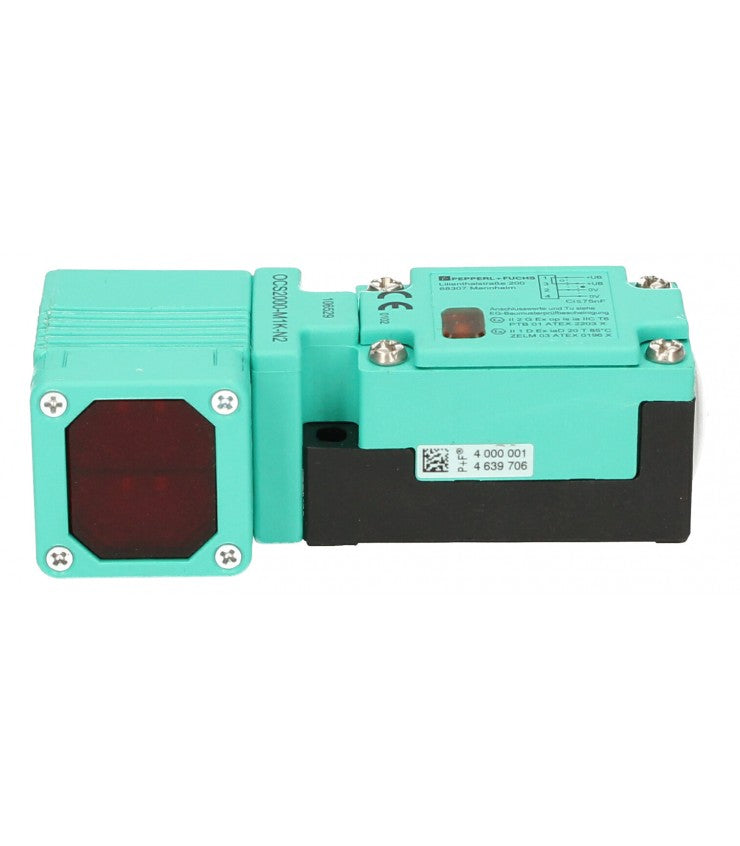

The Pepperl+Fuchs OCS2000-M1K-N2 is an intrinsically safe optical sensor designed for reliable object and level detection in hazardous industrial environments. It operates using red LED light with retro-reflective sensing and supports detection distances up to 2 meters. This sensor is engineered for use in ATEX and IECEx classified zones, ensuring safe operation in explosive atmospheres.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors |
| Part Number | OCS2000-M1K-N2 |
| Subcategory | Optical Sensors |
| Sensor Type | Retro-reflective optical sensor |
| Detection Range | 0 to 2 m |
| Reference Target | Retro-reflector C110-2 |
| Light Source | LED, red (660 nm) |
| Ambient Light Immunity | ≤10,000 lux (sunlight), ≤7,500 lux (halogen) |
| Output Signal | NAMUR, NO/NC programmable |
| Operating Voltage | 6 to 20 VDC |
| Switching Frequency | ≥100 Hz |
| Response Time | 5 ms |
| Current Consumption | ≤2.2 mA |
| Ingress Protection | Industrial hazardous-area enclosure |
| Explosion Protection | ATEX / IECEx |
| Operating Temperature | Hazardous-area rated |
| Weight | Approx. 0.3 kg |
Information About ![]()
OCS2000-M1K-N2
The OCS2000-M1K-N2 is part of the Pepperl+Fuchs OCS2000 series of optical sensors developed for demanding applications in hazardous areas. It features an intrinsically safe design compliant with Ex op is ia IIC T6 requirements, making it suitable for gas and dust explosion risk zones. The sensor uses a retro-reflector reference target and incorporates glare protection through a polarization filter to ensure stable detection. Its adjustable sensor head and scratch-resistant mineral glass lens enhance flexibility and durability in industrial installations.
Key Features:
- ATEX and IECEx Certified: Approved for Zone 20 (dust) and Zone 1 (gas) hazardous areas.
- Intrinsically Safe Design: Ex op is ia IIC T6 Gb / IIIC T135°C Da for explosive environments.
- Retro-Reflective Optical Detection: Uses reflector-based sensing for reliable object and level detection.
- Red LED Light Source: 660 nm wavelength ensures consistent optical performance.
- Up to 2 m Detection Range: Effective detection from 100 mm to 2000 mm with reflector.
- NAMUR Output Signal: Intrinsically safe NAMUR output with programmable NO/NC behavior.
- Adjustable Sensor Head: Allows precise alignment during installation.
- Mineral Glass Lens: Scratch-resistant lens for long-term optical clarity.
- Glare Protection Filter: Polarization filter minimizes interference from reflections and ambient light.
The OCS2000-M1K-N2 delivers the reliability and precision required for safe optical sensing in explosive industrial environments.
