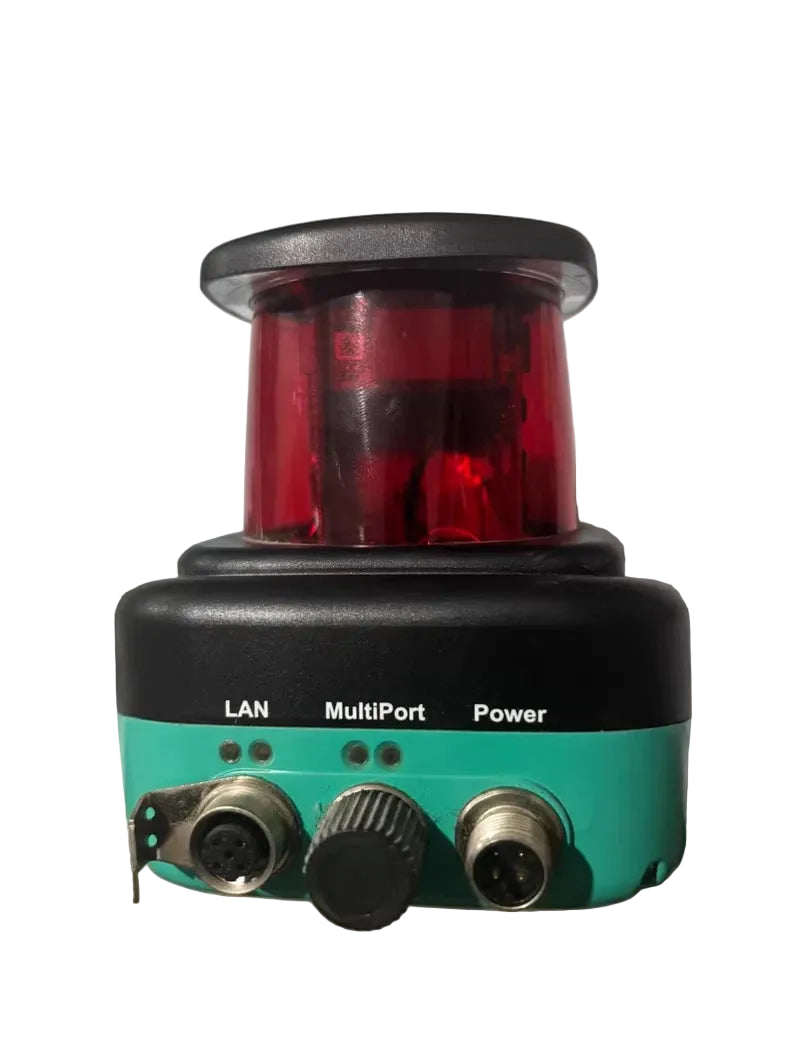

Pepperl+Fuchs OMD25M-R2000-B23-V1V1D-SD-1L 2D LiDAR Scanner 25 m 360° Detection
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OMD25M-R2000-B23-V1V1D-SD-1L
Description
The Pepperl+Fuchs OMD25M-R2000-B23-V1V1D-SD-1L is a 2D LiDAR scanner designed for distance measurement, object detection, and area monitoring in industrial automation systems. It uses Pulse Ranging Technology (PRT) to provide 360-degree scanning with a maximum operating range of 25 meters for applications such as robotics, automated guided vehicles, and material handling.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Safety Systems |
|
Part Number |
OMD25M-R2000-B23-V1V1D-SD-1L |
|
Subcategory |
Safety Laser Scanners |
|
Product Type |
2D LiDAR Scanner |
|
Series |
R2000 (OMD) |
|
Sensing Principle |
Pulse Ranging Technology (PRT) |
|
Maximum Operating Range |
25 m |
|
Scan Angle |
360° |
|
Light Source |
Infrared laser |
|
Laser Class |
Class 1 |
|
Angular Resolution |
0.1–0.5° |
|
Supply Voltage |
10–30 VDC |
|
Communication Interface |
Ethernet, M12 D-coded connector |
|
Power and I/O Connection |
M12 connector |
|
Protection Rating |
IP65 listed; IP67 also reported for the series, exact model rating should be verified |
|
Applications |
AGVs, robotics, material handling, collision avoidance, area monitoring |
|
Weight |
0.8 kg |
Information About OMD25M-R2000-B23-V1V1D-SD-1L
The OMD25M-R2000-B23-V1V1D-SD-1L belongs to the Pepperl+Fuchs R2000 series of industrial 2D LiDAR sensors. Its rotating mirror and infrared measurement system support continuous scanning around the sensor's full 360-degree field of view. The device operates on a 10–30 VDC supply and includes Ethernet communication and two switching outputs according to the supplied configuration details. Its high angular resolution and compact industrial design support applications requiring precise spatial measurement and object monitoring.
Key Features:
-
2D LiDAR scanning: Measures distances and detects objects across a two-dimensional scanning plane.
-
25 m operating range: Supports long-range detection and measurement for industrial applications.
-
360-degree scan field: Provides full-circle scanning for area monitoring and object detection.
-
Pulse Ranging Technology: Uses PRT for optical distance measurement.
-
Infrared light source: Uses infrared light for non-contact sensing.
-
Ethernet communication: Supports data communication through the specified Ethernet interface.
-
Dual switching outputs: Provides two switching outputs for integration with compatible control systems.
-
DC power supply: Operates with a 10–30 VDC supply.
The OMD25M-R2000-B23-V1V1D-SD-1L delivers the reliability and precision required for industrial LiDAR measurement, area monitoring, and automated object detection applications.
