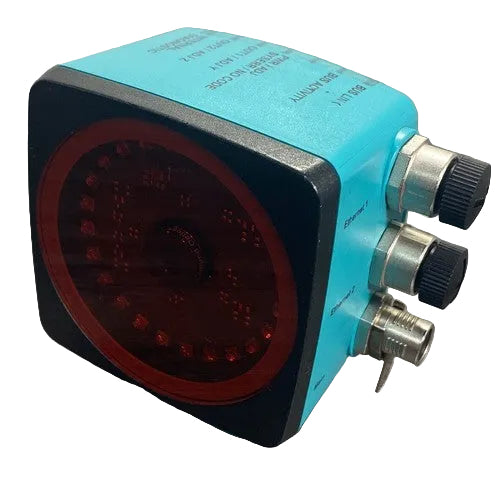

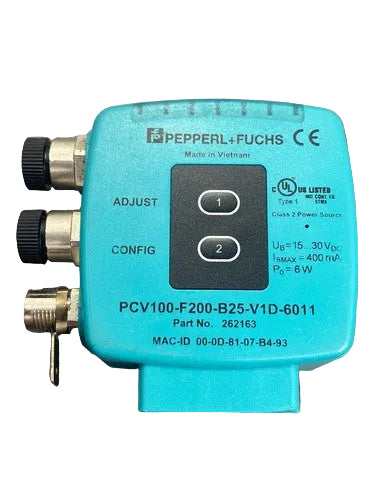

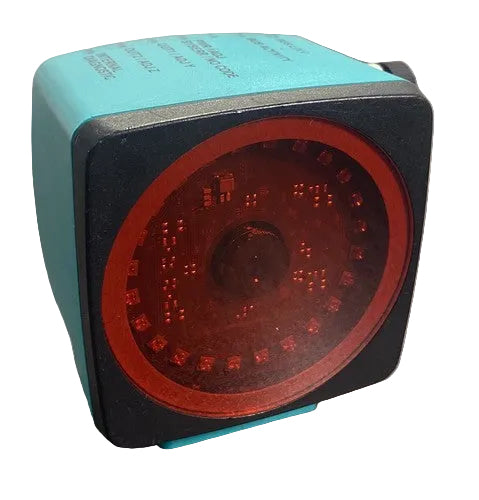

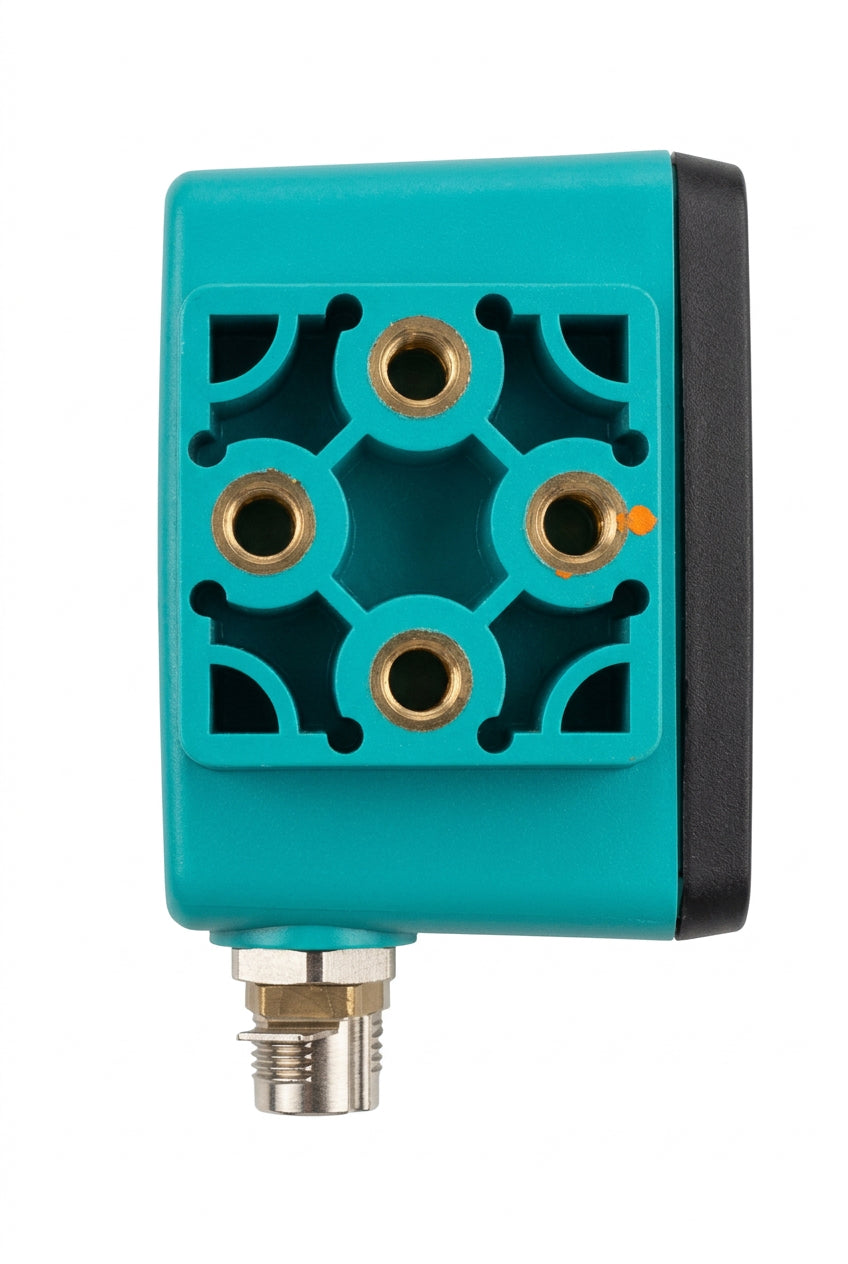

Pepperl+Fuchs PCV100-F200-B25-V1D-6011 Optical Reading Head
- Regular price
- $2,432.00
- Sale price
- $2,432.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PCV100-F200-B25-V1D-6011
Description
The Pepperl+Fuchs PCV100-F200-B25-V1D-6011 is an optical reading head designed for camera-based positioning on Data Matrix code tape in automated guided vehicles, conveyor systems, and industrial material-handling equipment. It uses a CMOS camera and EtherNet/IP communication to provide precise, non-contact position data for compatible control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Industrial Automation |
| Part Number | PCV100-F200-B25-V1D-6011 |
| Subcategory | Optical Positioning Sensors |
| Product Type | Optical Reading Head |
| Sensor Technology | CMOS, global shutter |
| Positioning Method | Data Matrix code tape |
| Communication Interface | 100BASE-TX Ethernet |
| Communication Protocol | EtherNet/IP |
| Service Interface | USB |
| Operating Voltage | 15–30 V DC |
| Power Consumption | 6 W |
| Nominal Reading Distance | 100 mm |
| Reading Field | 60 × 40 mm |
| Resolution | ±0.1 mm |
| Maximum Passage Speed | 6 m/s |
| Maximum Measuring Length | 10,000 m |
| Illumination | Integrated red LED |
| Switch Outputs | 1–3 programmable, short-circuit protected |
| Protection Rating | IP67 |
| Housing Material | PC/ABS |
| Dimensions | 70 × 70 × 50 mm |
| Weight | 0.44 lb |
Information About PCV100-F200-B25-V1D-6011
The PCV100-F200-B25-V1D-6011 is an optical reading head in the Pepperl+Fuchs PCV positioning system family. It reads Data Matrix code tape to determine position without mechanical contact. The device operates on a 15–30 V DC supply and communicates through a 100BASE-TX EtherNet/IP interface. Its IP67-rated PC/ABS housing supports industrial installation where dust and water protection are required.
-
Optical Positioning: Reads Data Matrix code tape for non-contact position measurement.
-
Camera Technology: CMOS image sensor with global shutter.
-
Communication Interface: 100BASE-TX Ethernet using EtherNet/IP.
-
Reading Distance: 100 mm nominal distance.
-
Reading Field: 60 × 40 mm.
-
Position Resolution: ±0.1 mm.
-
Operating Voltage: 15–30 V DC.
- Environmental Protection: IP67-rated enclosure for industrial environments.
The PCV100-F200-B25-V1D-6011 delivers the reliability and precision required for automated positioning, conveyor tracking, and industrial vehicle guidance.
