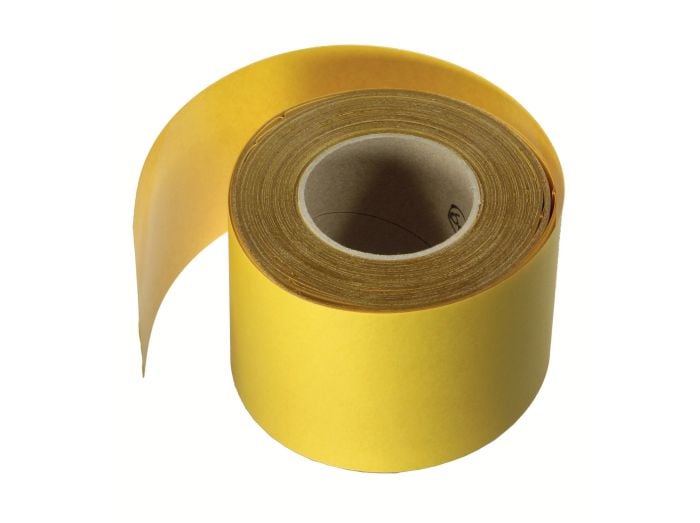

Pepperl+Fuchs PGV25M-CD100-CLEAR Protective Laminate for PGV Code Tape 25 m
- Regular price
- $777.00
- Sale price
- $777.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PGV25M-CD100-CLEAR
Description
The Pepperl+Fuchs PGV25M-CD100-CLEAR is a self-adhesive protective laminate designed to protect PGV code tape used in industrial positioning and navigation systems. The 25 m long, 100 mm wide film offers resistance to chemicals, UV radiation, humidity, and salt spray while providing mechanical protection across a broad operating temperature range.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Pepperl+Fuchs |
|
Category |
Control Components |
|
Part Number |
PGV25M-CD100-CLEAR |
|
Subcategory |
Sensor Accessories |
|
Product Type |
Protective Laminate |
|
Application |
Protection for PGV code tape |
|
Length |
25 m |
|
Width |
100 mm |
|
Roll Core Inside Diameter |
150 mm |
|
Material Thickness |
250 μm |
|
Surface Finish |
Matte |
|
Material |
Polyester (one supplied description specifies polycarbonate; verify exact material) |
|
Adhesive Type |
Acrylate-based |
|
Adhesive Curing Time |
72 hours |
|
Tensile Strength |
≥ 120 N |
|
Operating Temperature |
-40 to 130 °C (-40 to 266 °F) |
|
Installation Temperature |
10 to 40 °C (50 to 104 °F) |
|
Environmental Resistance |
UV radiation, humidity, salt spray (150 h / 5%) |
|
Chemical Resistance |
Oils, grease, fuels, aliphatic solvents, weak acids |
|
Adhesion to Steel |
20 N / 25 mm (average) |
|
Adhesion to Polypropylene (PP) |
18 N / 25 mm (average) |
|
Alternate Reference Number |
275589 |
|
Weight |
1.8 kg |
Information About PGV25M-CD100-CLEAR
The PGV25M-CD100-CLEAR is a protective film accessory designed for compatible Pepperl+Fuchs PGV code tape installations. It features a matte surface, a material thickness of 250 μm, and an acrylate-based adhesive that requires approximately 72 hours to cure. The laminate withstands operating temperatures from -40 to 130 °C and resists exposure to oils, grease, fuels, aliphatic solvents, and weak acids. Its self-adhesive construction and tensile strength of at least 120 N support durable installation in demanding industrial environments.
Key Features:
-
Protective code tape laminate: Helps protect compatible PGV code tape from environmental and mechanical exposure.
-
Chemical resistance: Resists oils, grease, fuels, aliphatic solvents, and weak acids.
-
UV and weather resistance: Designed to withstand UV radiation, humidity, and specified salt spray exposure.
-
Wide operating temperature: Supports operation from -40 to 130 °C.
-
Self-adhesive mounting: Uses an acrylate-based adhesive for direct application to suitable surfaces.
-
Durable film construction: Features a 250 μm thick matte protective layer.
-
Long roll format: Supplied as a 25 m roll with a width of 100 mm.
-
High tensile strength: Provides a specified tensile strength of at least 120 N.
The PGV25M-CD100-CLEAR delivers the reliability and precision required for protecting industrial positioning code tape and maintaining dependable PGV system operation.
