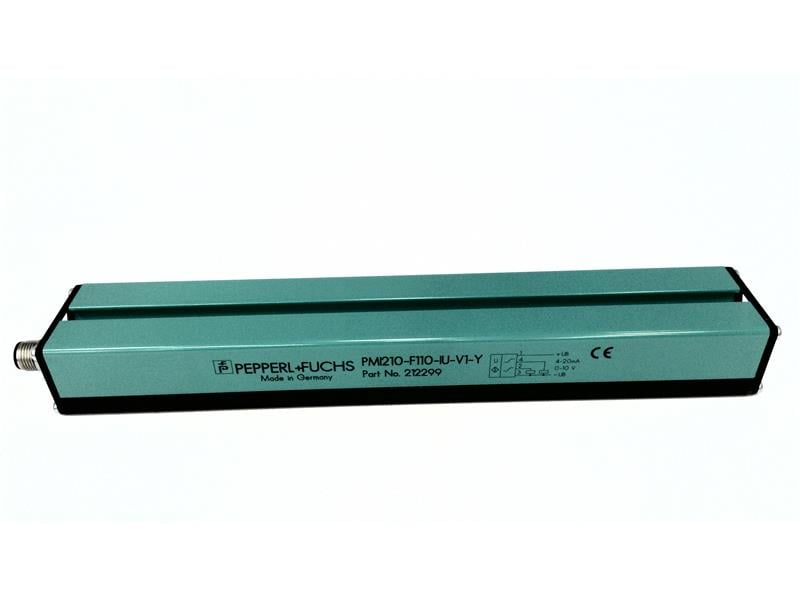

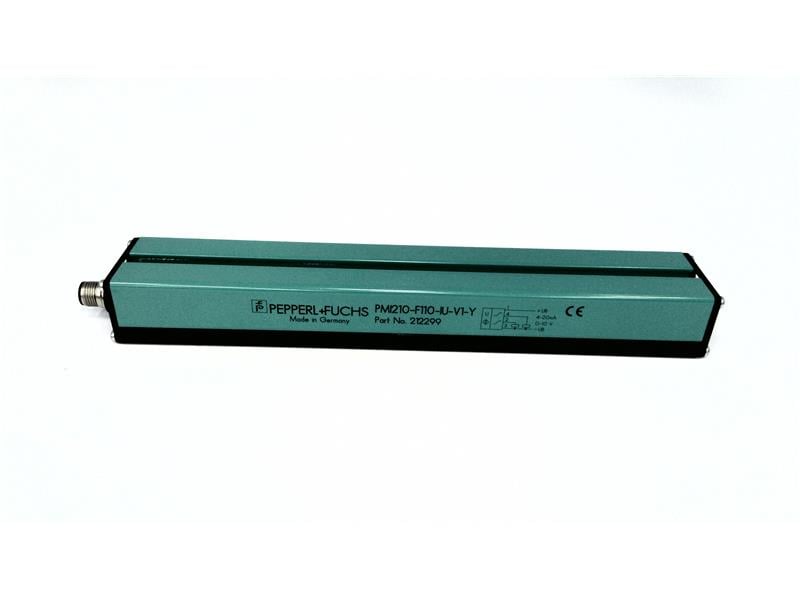

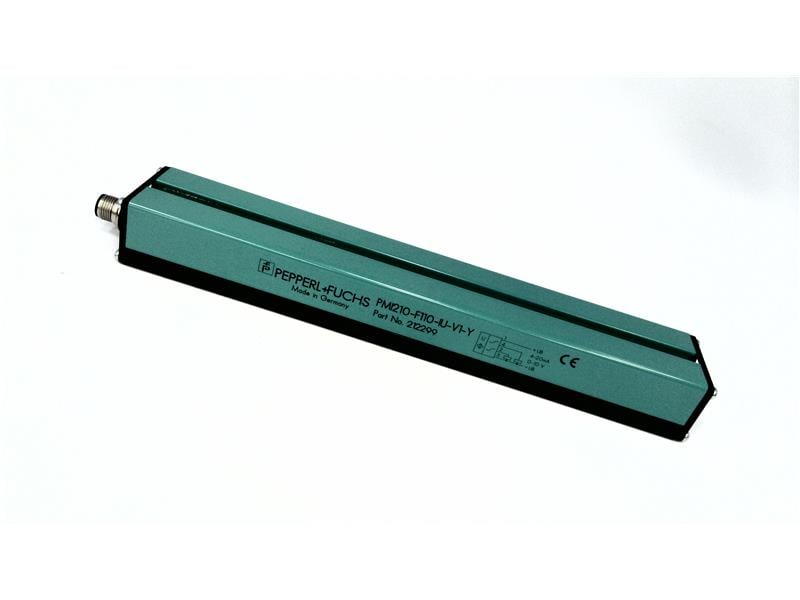

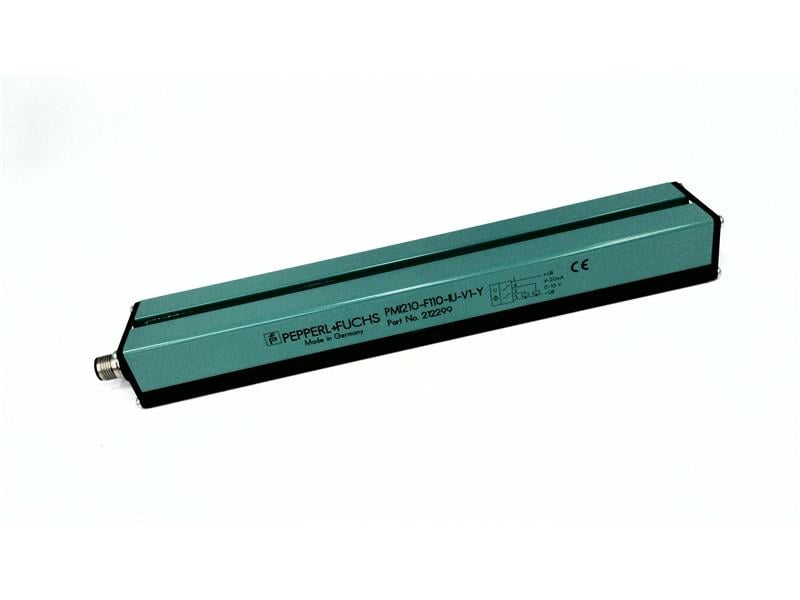

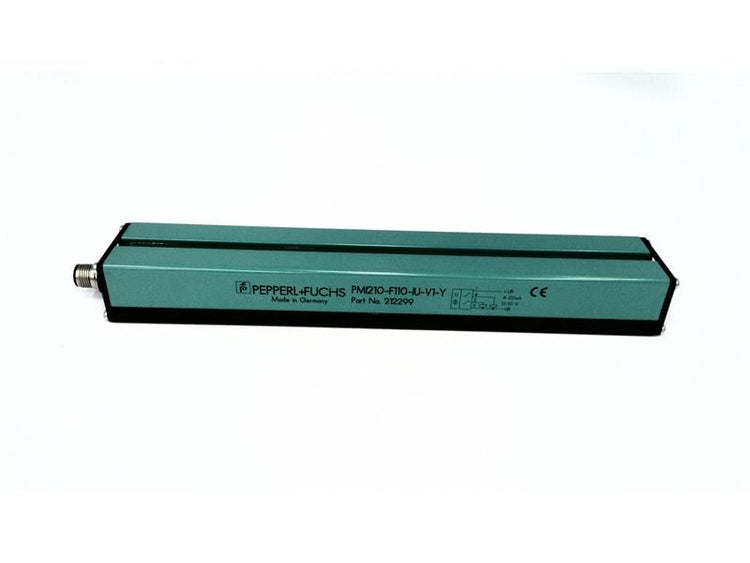

Pepperl+Fuchs PMI210-F110-IU-V1 Inductive Linear Position Sensor
- Regular price
- $695.00
- Sale price
- $695.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PMI210-F110-IU-V1
Description
The Pepperl+Fuchs PMI210-F110-IU-V1 is an inductive positioning system that measures the linear position of a compatible metal target without mechanical contact. It provides position-proportional 4–20 mA and 0–10 V signals across a 0–210 mm measuring range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Pepperl+Fuchs |
| Category | Sensors & Switches |
| Part Number | PMI210-F110-IU-V1 |
| Subcategory | Inductive Position Sensors |
| Series / Order Number | PMI, F110 housing / 191142 |
| Measuring Range | 0–210 mm |
| Target Distance | Maximum 6 mm; specified accuracy at 1–6 mm |
| Supply Voltage | 18–30 V DC |
| No-Load Supply Current | ≤40 mA |
| Current Output | 4–20 mA; load resistance ≤400 Ω |
| Voltage Output | 0–10 V; load resistance ≥1,000 Ω |
| Linearity Error | ±0.4 mm |
| Repeat Accuracy | ±0.2 mm |
| Resolution | 210 µm |
| Connection | Four-pin M12 × 1 connector |
| Electrical Protection | Reverse-polarity protection; pulsing short-circuit protection on voltage output |
| Housing / Protection Rating | PA6 and aluminum / IP65 |
| Operating Temperature | −25 to +70°C |
| Housing Length | 250 mm, excluding connector extension |
| Weight | 1.45 lb (0.66 kg) |
Information About PMI210-F110-IU-V1
The PMI210-F110-IU-V1 is part of the PMI positioning range and uses the F110 housing style. Its construction combines PA6 and aluminum components with a four-pin M12 connector. The system operates with a compatible mild-steel target moving along the measuring field. Specified accuracy applies when the target-to-sensor spacing remains between 1 and 6 mm.
Key Features:
- Inductive Position Measurement: Detects the position of a compatible metal target without mechanical contact.
- Measuring Range: Provides linear position measurement from 0 to 210 mm.
- Target Clearance: Supports a maximum target-to-sensor distance of 6 mm.
- Current Output: Provides a position-proportional 4–20 mA signal.
- Voltage Output: Provides a position-proportional 0–10 V signal.
- Supply Compatibility: Operates on 18–30 V DC with reverse-polarity protection.
- Connection Interface: Uses a four-pin M12 connector for power and output signals.
- Operating Indicator: Includes a green LED to indicate supply voltage.
The PMI210-F110-IU-V1 delivers the reliability and precision required for linear position monitoring in compatible industrial automation equipment.
